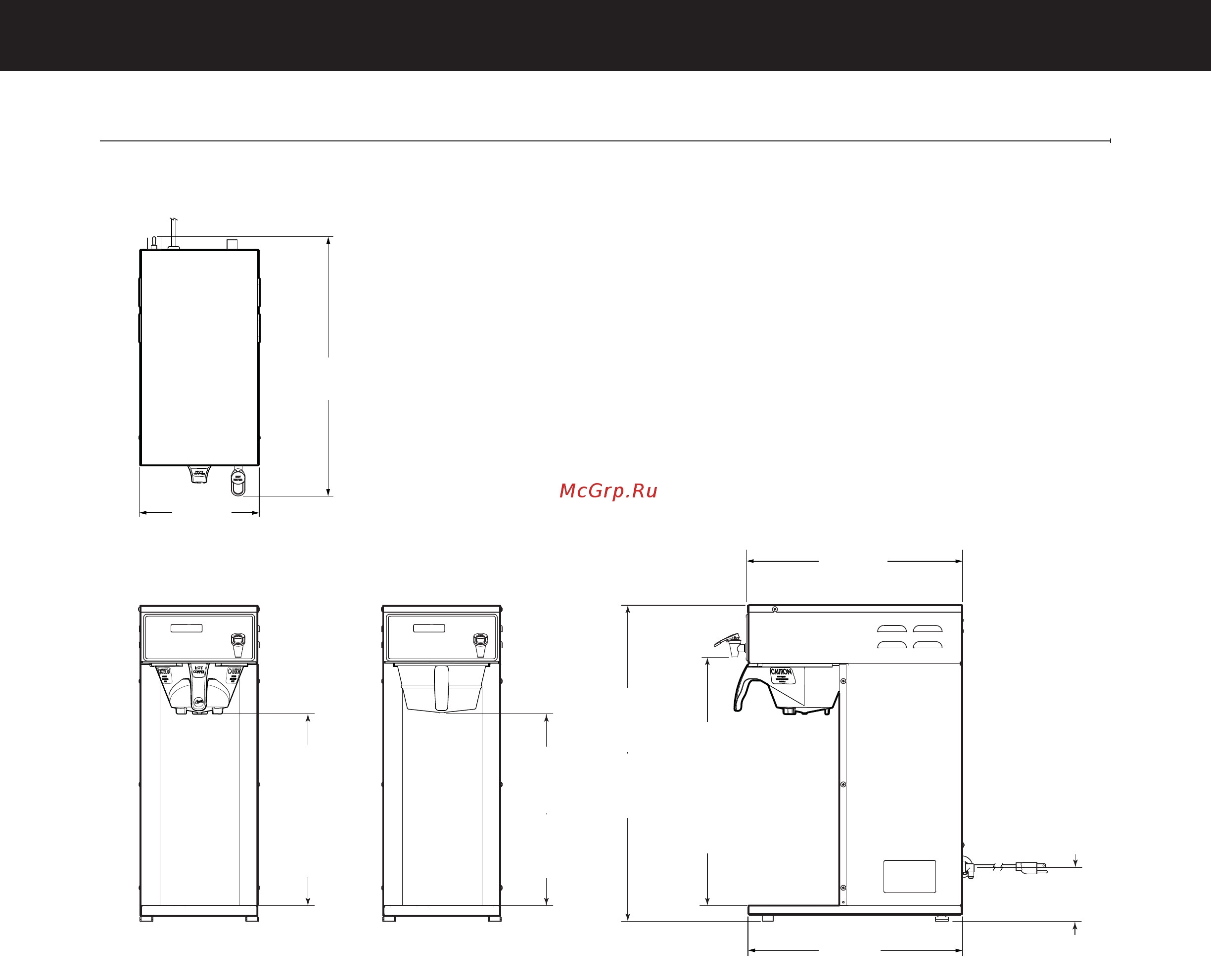

ROUGH-IN DRAWINGS RD36
D500 Airpot Coffee Brewers
D500, ROUGH-IN DRAWING 120717A
D 500G T
14.88 in
[37.8 cm ]
D 500G T
14.75 in
[37.5 cm ]
D 500G T
24.48 in
[62.2 cm ]
D 500G T
19.25 in
[48.9 cm ]
D 500G TH
18.15 in
[46.1 cm ]
D 500G TH
18.02 in
[45.8 cm ]
D 500G TH
27.75 in
[70.5 cm ]
D 500G TH
22.52 in
[57.2 cm ]
20.38 in
[51.8 cm ]
4.25 in
[10.8 cm ]
9.25 in
[23.5 cm ]
16.75 in
[42.5 cm ]
16.50 in
[41.9 cm ]
with WC-3316
brew basket
with WC-3621-101
brew basket
Water
Supply
