NOTE: If you do not hear the click, remove the memory module and re-install it.
3. Install the:
a. battery
b. base cover
4. Follow the procedures in After Working Inside Your Computer.
Removing the Hard Drive
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. base cover
b. battery

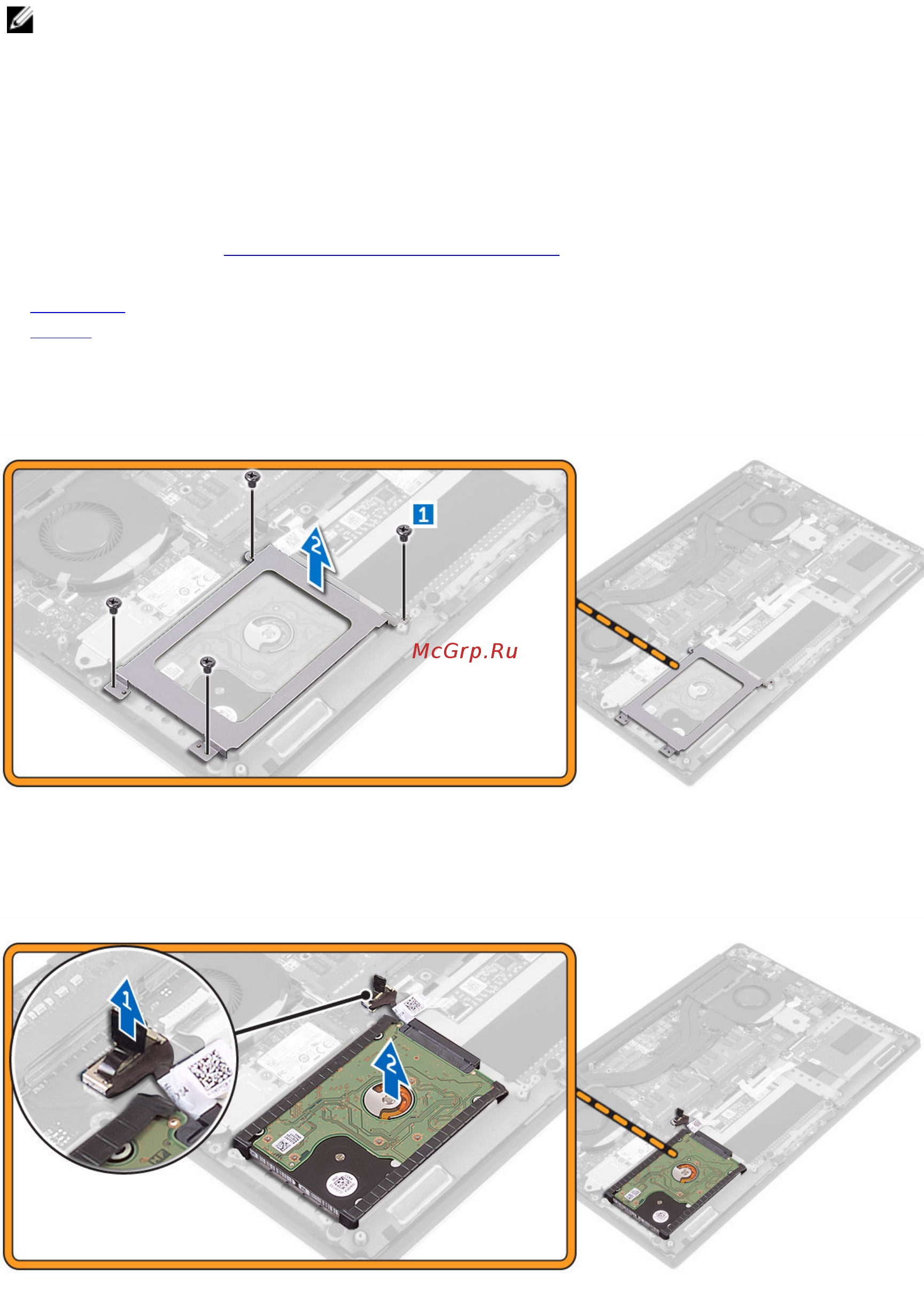

3. Perform the following steps to remove the hard-drive bracket from the computer:
a. Remove the screws securing the hard-drive bracket to the computer [1].
b. Lift the hard-drive bracket off the computer [2].
4. Perform the following steps to remove the hard-drive:
a. Disconnect the hard-drive cable from the system board [1].
b. Lift the hard drive off the computer [2].
11
