Installing the DC-in Adapter Port

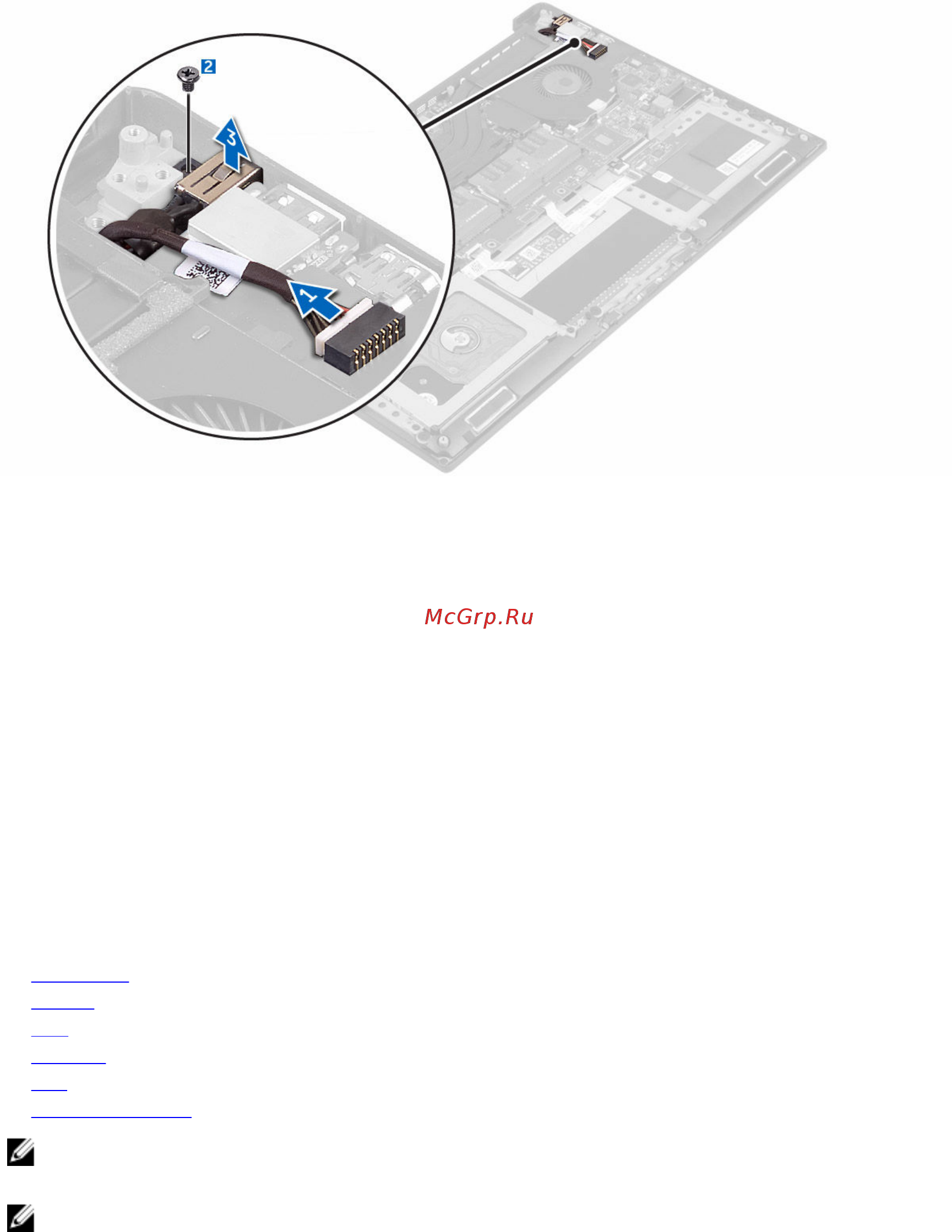

1. Place the DC-in adapter port into the slot on the palm-rest assembly.

2. Route the power-adapter port cable through its routing guides on the palm-rest assembly.

3. Replace the screw that secures the power-adapter port to the palm-rest assembly.

4. Connect the power-adapter port cable to the system board.

5. Install the:

a. battery

b. base cover

6. Follow the procedures in After Working Inside Your Computer.

Removing the System Board

1. Follow the procedures in Before Working Inside Your Computer.

2. Remove the:

a. base cover

b. battery

c. fans

d. heatsink

e. SSD

f. memory modules

NOTE: Your computer’s Service Tag is located under the system badge flap. You must enter the

Service Tag in the BIOS after you replace the system board.

NOTE: Before disconnecting the cables from the system board, note the location of the

connectors so that you can re-connect them correctly after you replace the system board.
