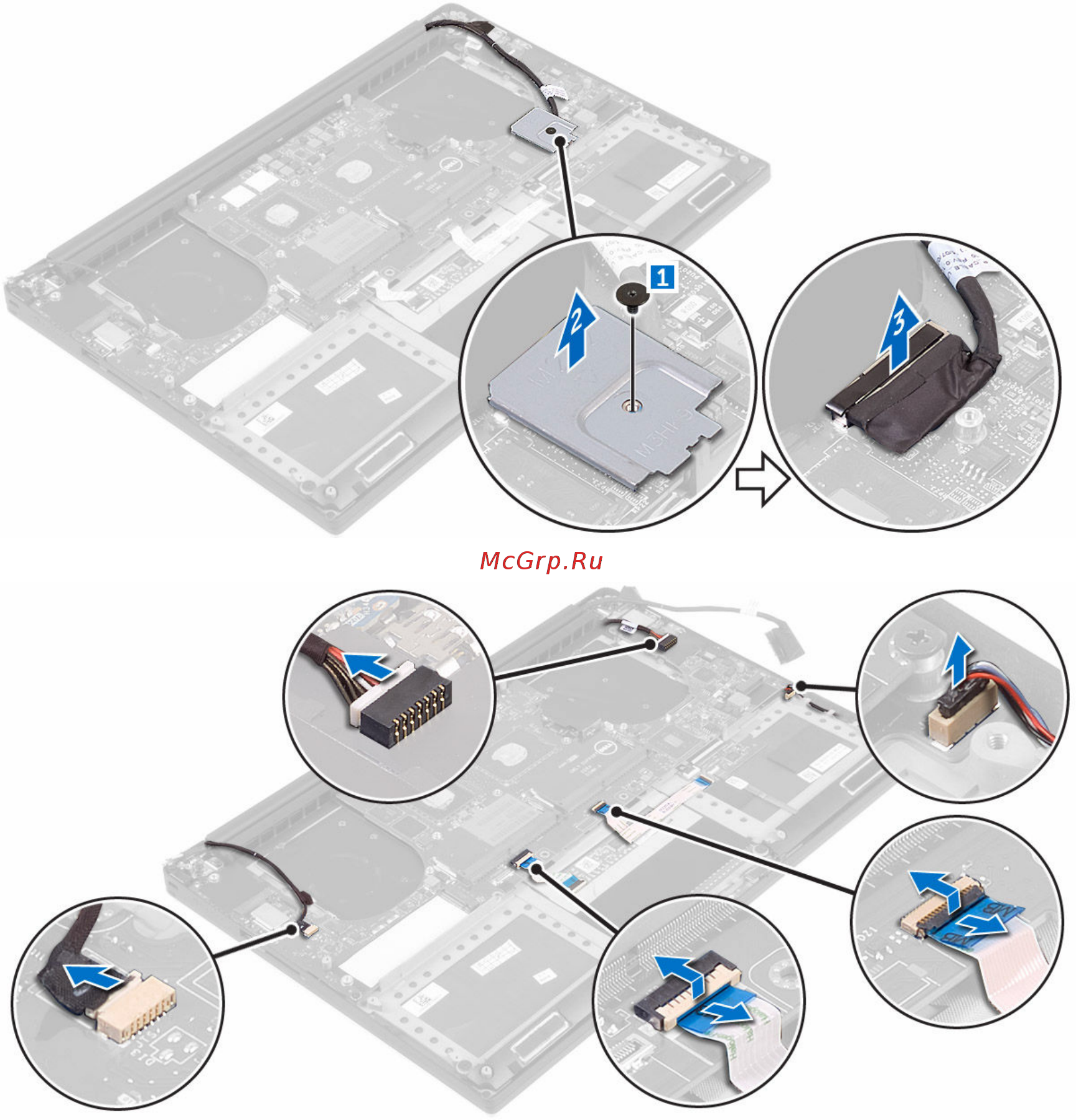

3. Remove the screw securing the metal bracket for the LVDS to the system board [1] and remove the
bracket off the computer [2]. Then, disconnect the LVDS cable from the system board [3].
4. Slide out the connector latches to disconnect all the cables from the system board.
5. Perform the following steps to remove the system board from the computer:
a. Remove the screws that secure the system board to the computer [1].
b. Lift the system board off the computer [2].
