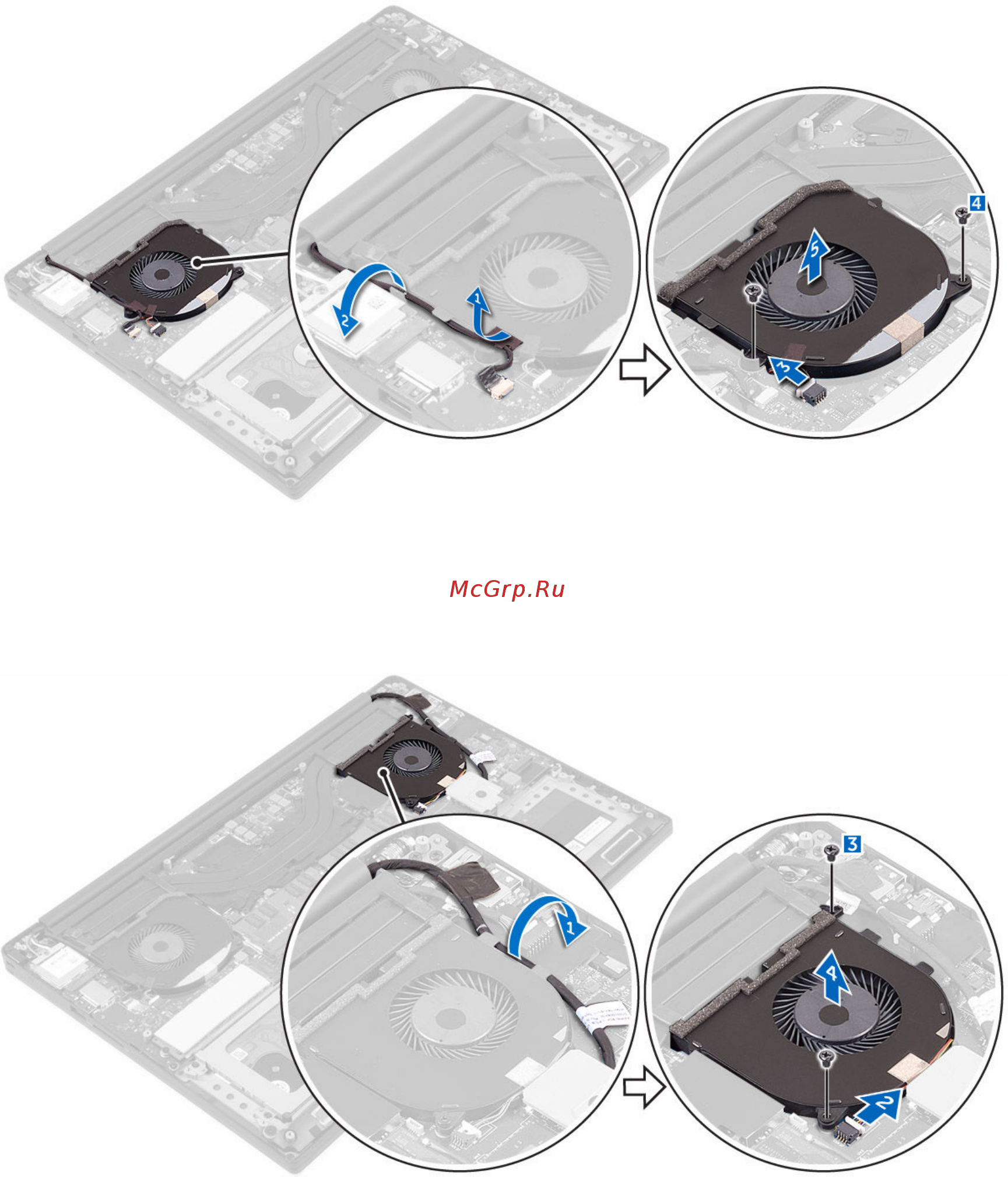

3. Perform the following steps to remove the left video-card fan:
a. Un-thread the LVDS cable from its restraints [1] and [2].
b. Disconnect the fan cable from the system board [3]
c. Remove the screws that secure the fan to the computer [4].
d. Lift the fan away from the computer [5].
4. Perform the following steps to remove the right system fan:
a. Un-thread the LVDS cable from its restraints [1].
b. Disconnect the fan cable from the system board [2]
c. Remove the screws that secure the fan to the computer [3].
d. Lift the fan away from the computer [4].
