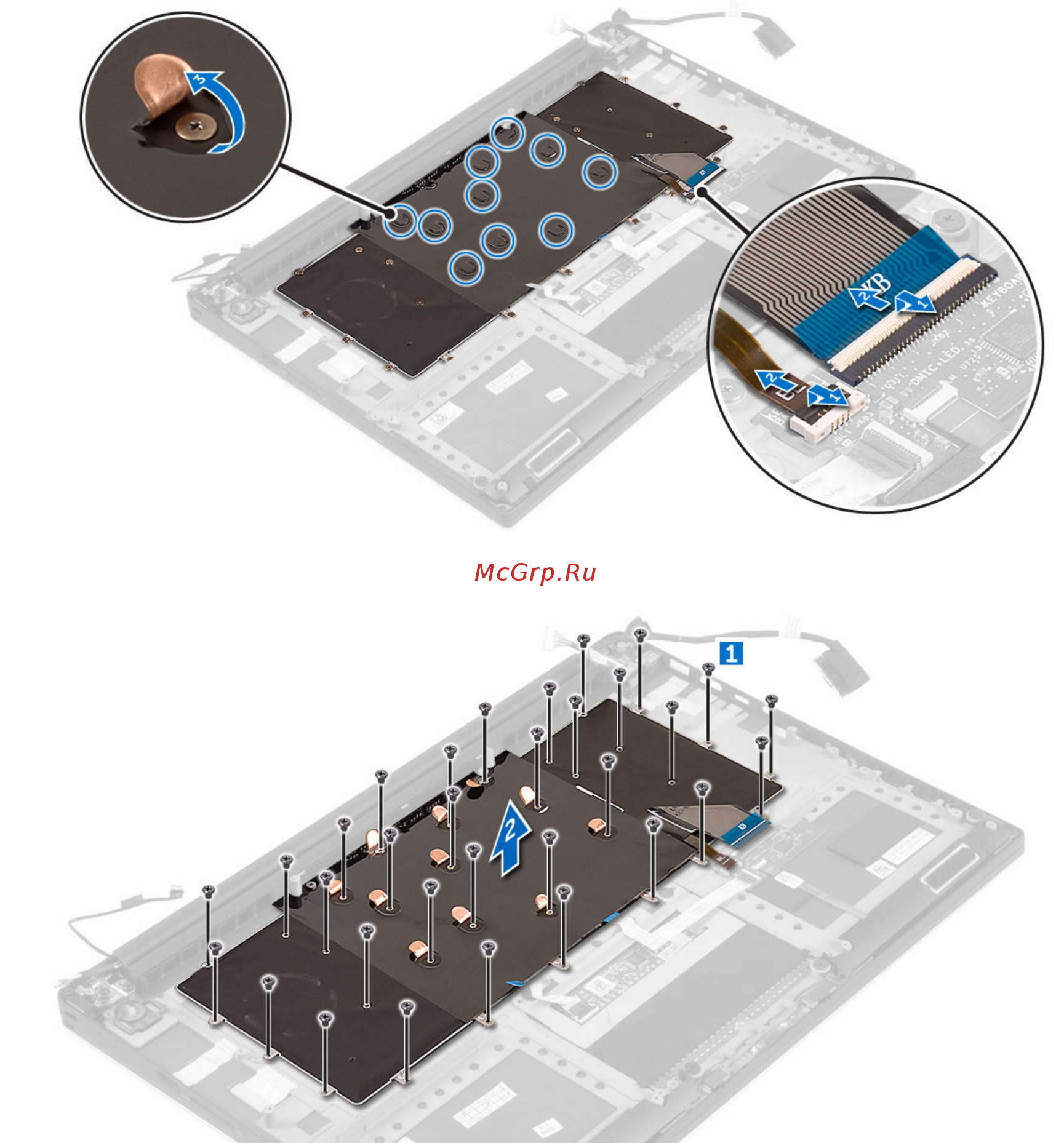

4. Un-route the LVDS cable [1] and then remove the screws that secure the keyboard to the computer
[2].
5. Lift and remove the keyboard from the computer.
21
