Pioneer VSX-920-K Black [14/400] Listening mode controls
![Pioneer VSX-920-K Black [14/400] Listening mode controls](/views2/1035289/page14/bge.png)
Controls and displays02
14
En
7
///
,
ENTER
Use the arrow buttons when setting up your
surround sound system (page 86) and the
Audio or Video options (page 68 or 71).
8 Receiver controls
Press first to access:
PHASE CTRL – Switch on/off Phase Control
(page 62).
STATUS – Check selected receiver settings
(page 75).
PQLS – Select the PQLS setting (page 66).
S.RETRIEVER – Press to restore CD quality
sound to compressed audio sources
(page 69).
MIDNIGHT – Switches to Midnight or
Loudness listening (page 68).
SIGNAL SEL – Select an input signal
(page 61).
MCACC – Switch between MCACC presets
(page 61).
SLEEP – Use to put the receiver in sleep
mode and select the amount of time before
sleep (page 75).
CH LEVEL – Press repeatedly to select a
channel, then use / to adjust the level
(page 103).
A.ATT – Attenuates (lowers) the level of an
analog input signal to prevent distortion
(page 75).
DIMMER – Dims or brightens the display
(page 75).
9 LISTENING MODE controls
AUTO/ALC/DIRECT –
Switches between
Auto Surround
(page 57)
, Auto Level
Control mode and Stream Direct mode
(page 60).
STEREO – Switches between stereo
playback and Front Stage Surround
Advance modes (page 60).
STANDARD – Press for Standard decoding
and to switch between the various 2 Pro
Logic IIx and Neo:6 options (page 57).
ADV SURR – Switch between the various
surround modes (page 59).
10 Remote control LED
Lights when a command is sent from the
remote control (page 77).
11
TV CTRL
Set the preset code of your TV’s manufacturer
when controlling TV (page 78).
12
Switches the remote to control the receiver
(used to select the white commands (SIGNAL
SEL, etc.)).
Switch to perform operations in the main zone.
Also use to set up surround sound.
13
MASTER VOLUME +/–
Set the listening volume.
14
MUTE
Mutes the sound or restores the sound if it has
been muted (adjusting the volume also
restores the sound).

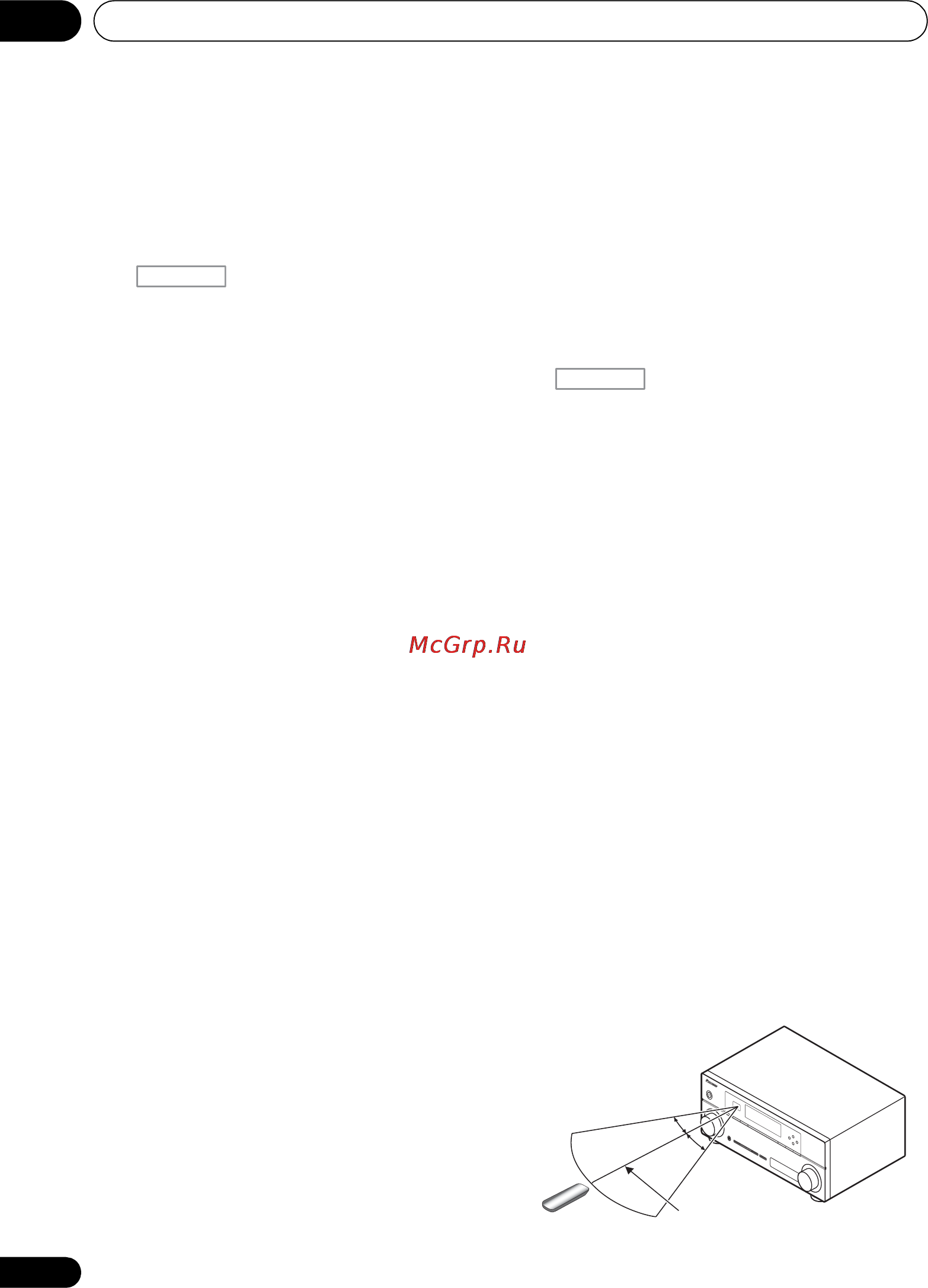

Operating range of remote control
unit
The remote control may not work properly if:
• There are obstacles between the remote
control and the receiver’s remote sensor.
• Direct sunlight or fluorescent light is
shining onto the remote sensor.
• The receiver is located near a device that is
emitting infrared rays.
• The receiver is operated simultaneously
with another infrared remote control unit.
RECEIVER
RECEIVER
7 m
30°
30°
VSX-1020_SYXCN.book 14 ページ 2010年3月12日 金曜日 午前9時10分
