Connecting your equipment 03
17
En
English
Français
Deutsch
Nederlands
Italiano
Español

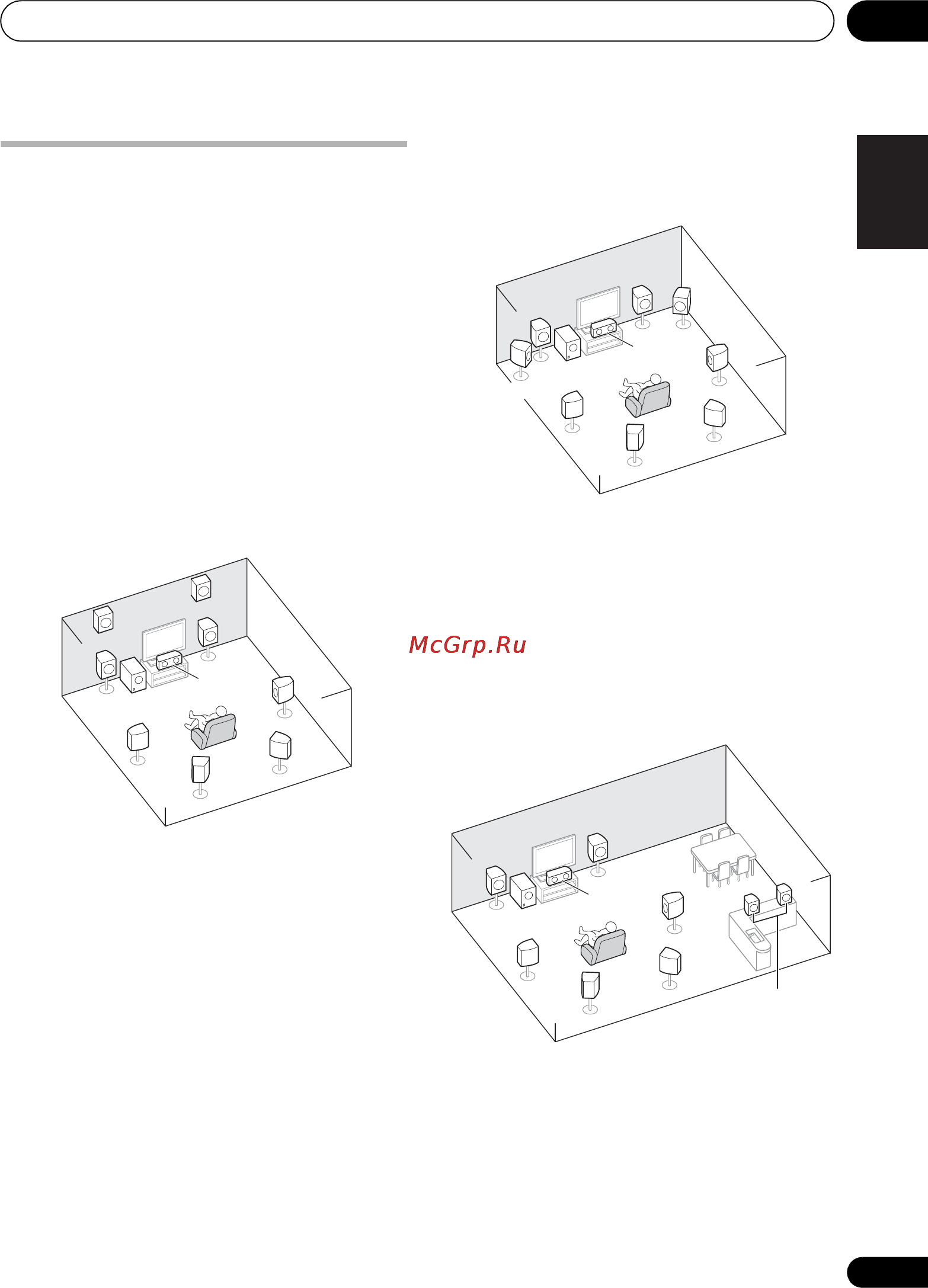

Determining the speakers’
application
This unit permits you to build various surround
systems, in accordance with the number of
speakers you have.
• Be sure to connect speakers to the front
left and right channels (L and R).
• It is also possible to only connect one of the
surround back speakers (SB) or neither.
Choose one from Plans [A] to [E] below.
[A] 9.1 channel surround system (Front
height)
*Default setting
• Speaker System setting: Normal(SB/FH)
A 9.1 ch surround system connects the left and
right front speakers (L/R), the center speaker
(C), the left and right front height speakers
(FHL/FHR), the left and right surround
speakers (SL/SR), the left and right surround
back speakers (SBL/SBR), and the subwoofer
(SW).
This surround system produces a more true-to-
life sound from above.
[B] 9.1 channel surround system (Front
wide)
•
Speaker System setting: Normal(SB/FW)
This plan replaces the left and right front
height speakers shown in [A] with the left and
right front wide speakers (FWL/FWR).
This surround system produces a true-to-life
sound over a wider area.
[C] 7.1 channel surround system &
Speaker B connection
• Speaker System setting: Speaker B
With these connections you can
simultaneously enjoy 5.1-channel surround
sound in the main zone with stereo playback of
the same sound on the B speakers. The same
connections also allow for 7.1-channel
surround sound in the main zone when not
using the B speakers.
SL
L
FHL
SW
C
R
FHR
SR
SBL
SBR
FWR
FWL
SL
L
SW
C
R
SR
SBL
SBR
SL
L
SW
C
R
SR
SBL
SBR
L
R
Speaker B
VSX-1020_SYXCN.book 17 ページ 2010年3月12日 金曜日 午前9時10分
