ENGLISH

ASSEMBLY

Start by unpacking the equipment and check that you

have the following parts:

1. Frame

2. Rear and front support

3. Pedals (2 pcs)

4. Handlebar

5. Console

6. Assembly kit (contents marked with in the spare part

list): keep the assembly tools, as you may need them e.g.

for adjusting the equipment.

If necessary, please contact your dealer with the model,

equipment serial no. and spare part no. of the missing

part. You’ll nd a spare part list at the back of this guide.

The packaging includes a silicate bag for absorbing

moisture during storage and transportation. Please dispose

of the bag once you have unpacked the equipment. The

directions left, right, front and back are dened as seen

from the exercising position. We recommend that the

equipment is installed by two adults.

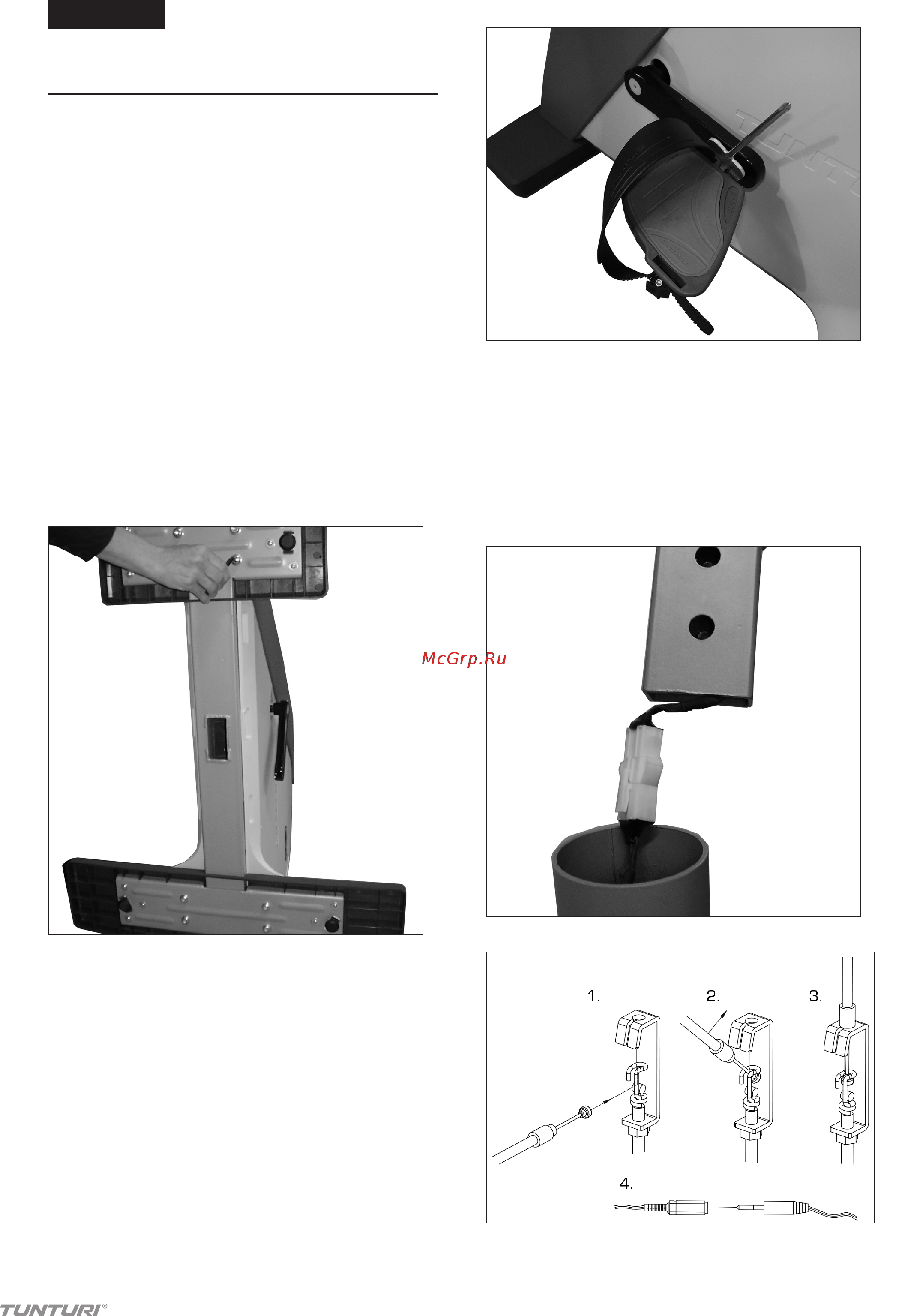

REAR AND FRONT SUPPORT

By holding on to the seat, incline the equipment

backwards so that it rests on its transportation wheels.

Attach the rear support from below with four hexagonal

socket head screws and washers. Attach the front support

to the frame with four screws and washers. Restore the

equipment to its upward position so that it rests on the

support feet.

PEDALS

The pedals are distinguished by the markings R (= right)

and L (= left) on their shafts. Fasten the right pedal to the

right pedal crank turning clockwise and the left pedal to

the left pedal crank turning counterclockwise. Fasten the

pedal bands rst into the retainerat the device. Thread the

band through the pedal loop and push the band opening

into the projection in the pedal. Fasten the pedal bands

to the pedal outside. Push the band through the locking

buckle and the band locks automatically. The length of

the band can be adjusted with the locking buckle.
