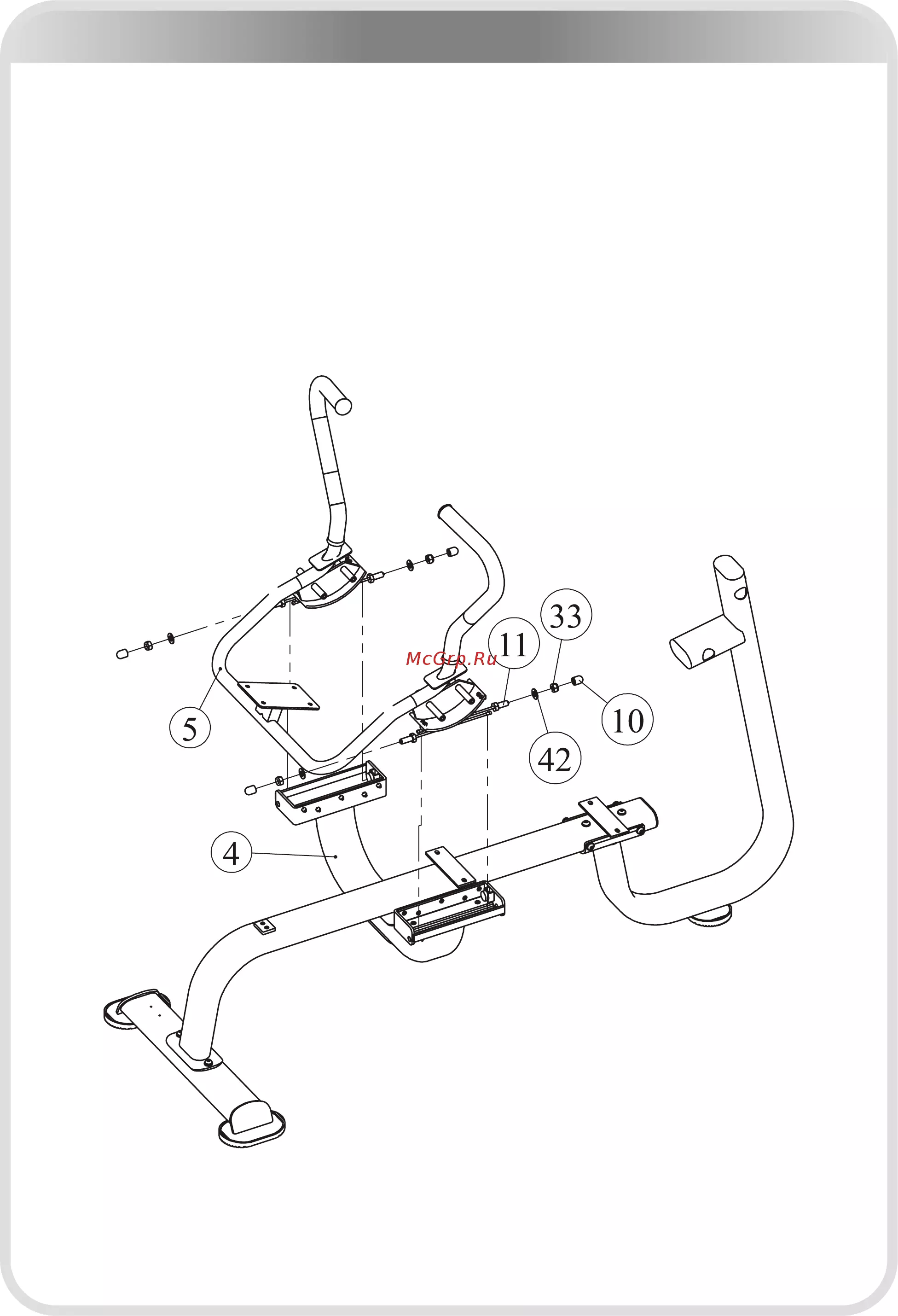

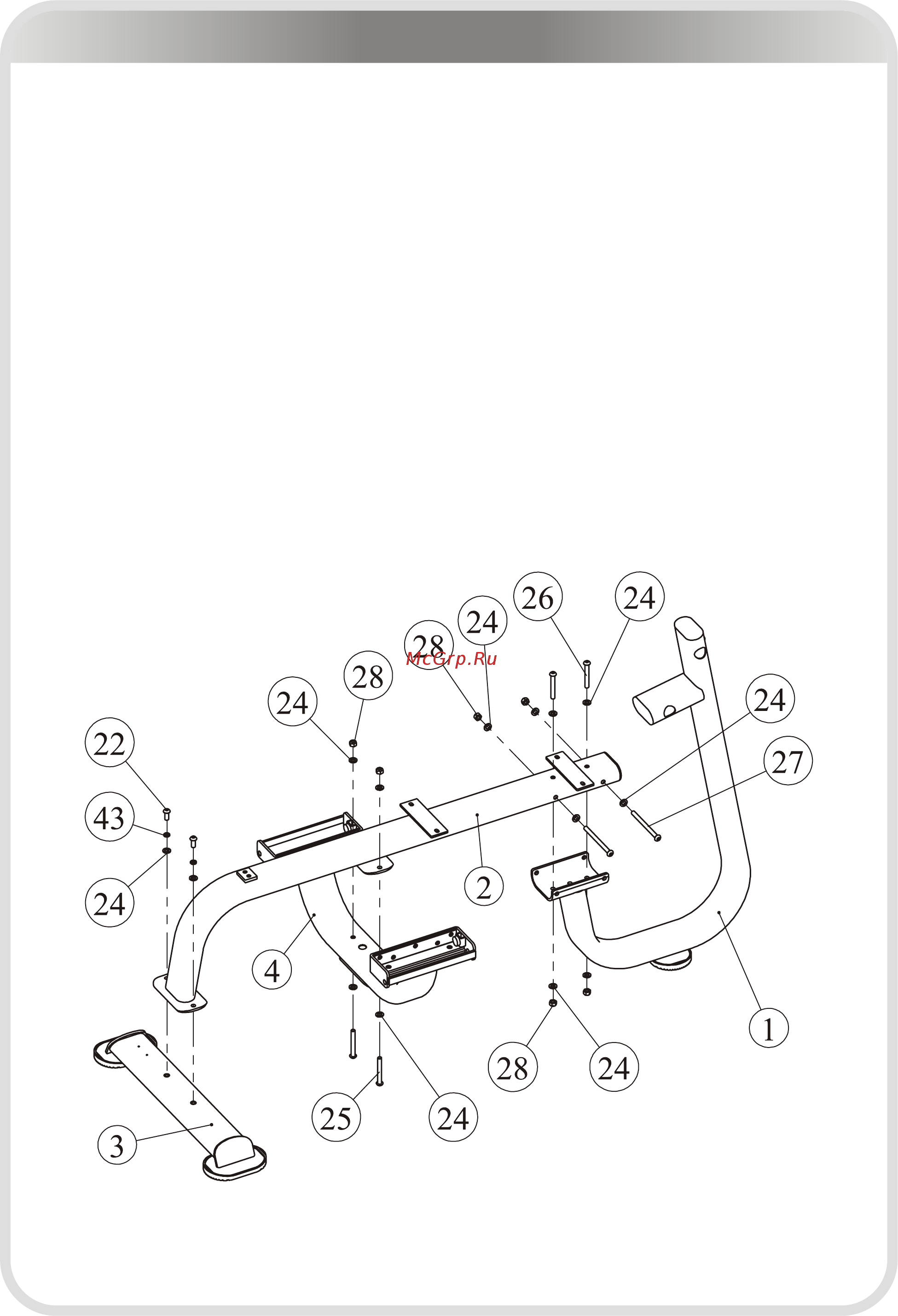

Assembly

Step 1

1. Attach Front frame (#1), Seat pad support frame (#2) using:

two M10*130 Hex Head Screws (#27) eight Φ11*Φ20*2 Flat Washers (#24)

four M10 Nylon lock nuts (#28) two M10*75 Hex Head Screws (#26)

2. Attach Seat pad support frame (#2), Rear base (#3) using:

two M10*25 Hex Head Screws (#22) two Φ11*Φ20*2 Flat Washers (#24)

two M10 Spring Washers(#43)

3. Attach Seat pad support frame (#2), Middle support frame (#4) using:

two M10*80 Hex Head Screws (#25) four Φ11*Φ20*2 Flat Washers (#24)

two M10 Nylon locknuts (#28)

NOTE:

1. Hand tighten bolts and nylon nuts until STEP 4.

2. Note the direction of the Middle support frame (#4).
