WATERMASTER // Series. Water Heater Models: WHE 5.0 XTN Z1, WHE

6.5 XTN Z1, WHE 8.0 XTN Z1

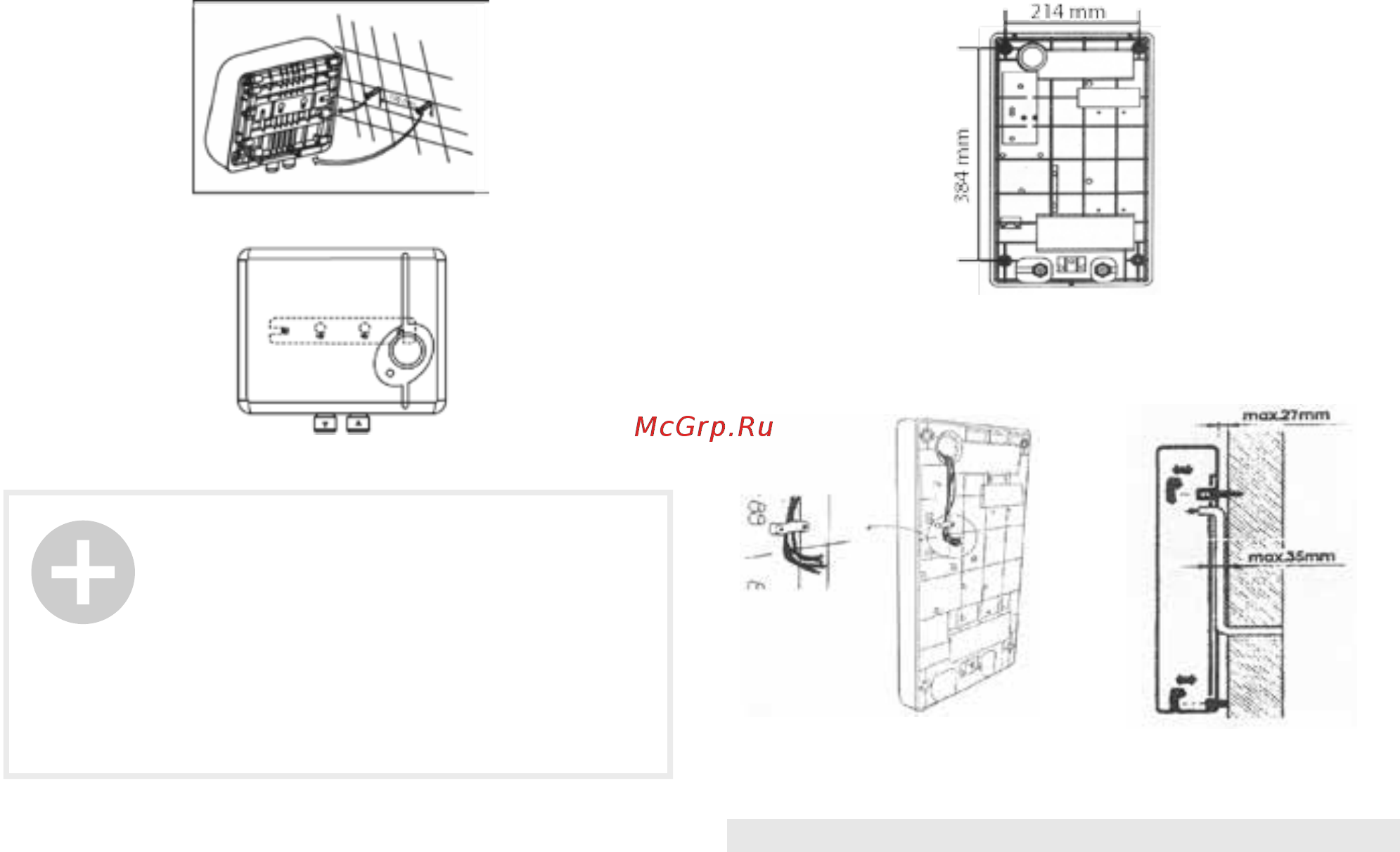

As shown in Figure 9, identify the points for openings and drill 2 openings

of the corresponding depth in the wall, insert dowels, screw up the screws,

and make sure that there is a certain distance between the screw head and

the wall, then hang the water heater on the screws (see Fig.10) and check

the reliability of fixing.

WATERMASTER Ill Series. Water Heater Models: WHE 12.0 XTL С1, WHE

18.0 XTL С1, WHE 21.0 XTL С1, WHE 24.0 XTL C1.

As shown in Figure 11, identify the points for openings and drill 4 openings

of the corresponding depth in the wall, insert dowels, attach water heater

to them having inserted the electric cable (see the figure), screw up the

screws, check the reliability of fixing. крепления.

NOTE:

Water heater installation at the place of its operation

and electric power connections shall be performed

by the specialized organization, a representative

of the manufacturer’s maintenance service or

experts licensed for execution of electric equipment

assembling with safety regulations observed.

In the event of violation of water heater operation

manual, water heater is not subject to warranty

servicing, and the manufacturer cannot be held liable.

Fig. 9

Fig. 11

Fig. 12 Fig. 13

Fig. 10
