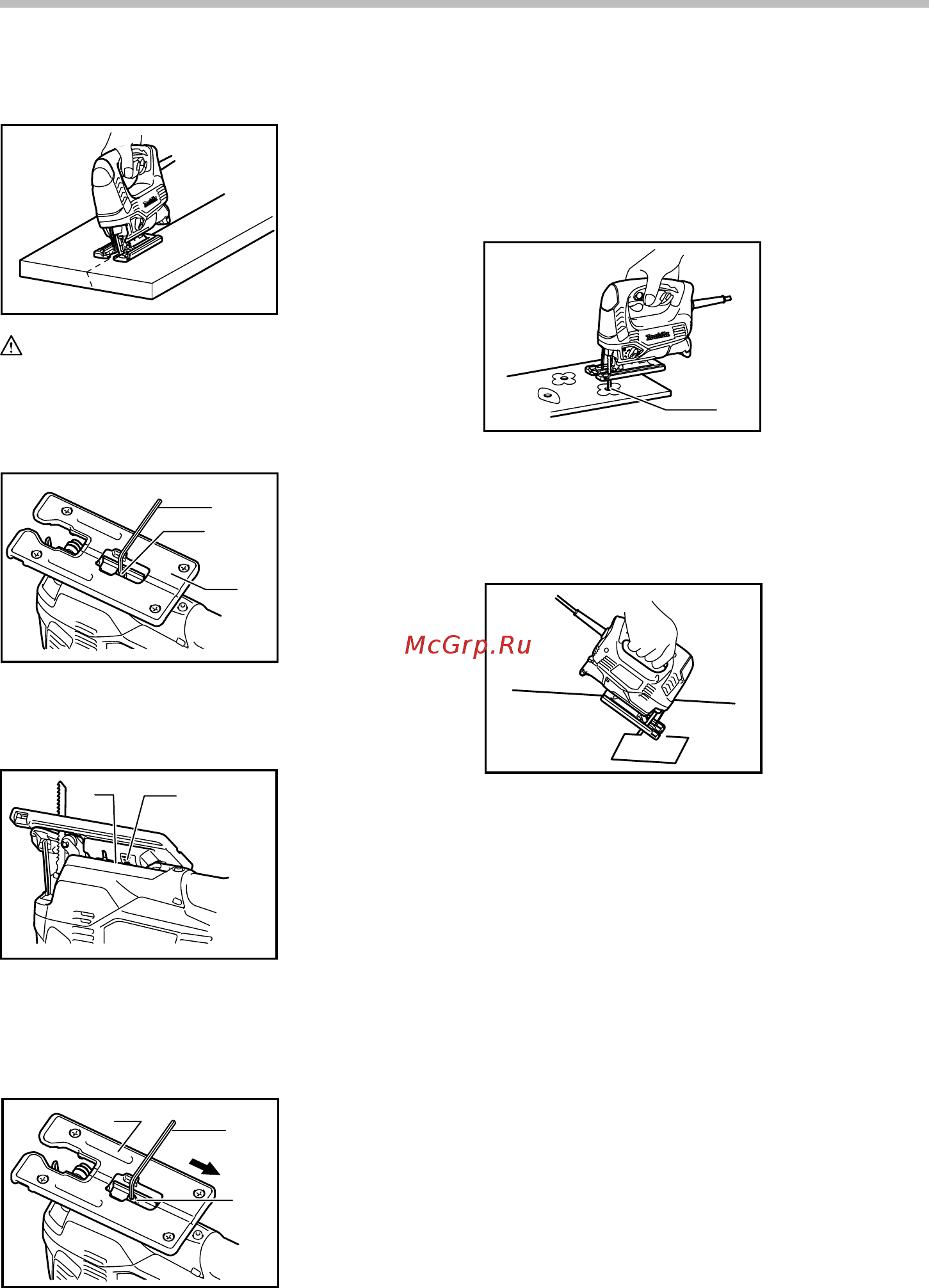

Bevel cutting
011962
CAUTION:
• Always be sure that the tool is switched off and
unplugged before tilting the base.
With the base tilted, you can make bevel cuts at any
angle between 0° and 45° (left or right).
1
2
3
011963
Loosen the bolt on the back of the base with the hex
wrench. Move the base so that the bolt is positioned in
the center of the cross-shaped slot in the base.
1
2
011964
Tilt the base until the desired bevel angle is obtained.
The edge of the housing indicates the bevel angle by
graduations. Then tighten the bolt to secure the base.
Front flush cuts
1
2
3
011965
Loosen the bolt on the back of the base with the hex
wrench and slide the base all the way back. Then tighten
the bolt to secure the base.
Cutouts
Cutouts can be made with either of two methods A or B.
A) Boring a starting hole
1
011966
For internal cutouts without a lead-in cut from an
edge, pre-drill a starting hole 12 mm or more in
diameter. Insert the blade into this hole to start your
cut.
B) Plunge cutting
011967
You need not bore a starting hole or make a lead-in
cut if you carefully do as follows.
(1) Tilt the tool up on the front edge of the base
with the blade point positioned just above the
workpiece surface.
(2) Apply pressure to the tool so that the front
edge of the base will not move when you
switch on the tool and gently lower the back
end of the tool slowly.
(3) As the blade pierces the workpiece, slowly
lower the base of the tool down onto the
workpiece surface.
(4) Complete the cut in the normal manner.
1. Starting hole
1. Base
2. Hex wrench
3. Bolt
1. Edge
2. Graduation
1. Hex wrench
2. Bolt
3. Base
