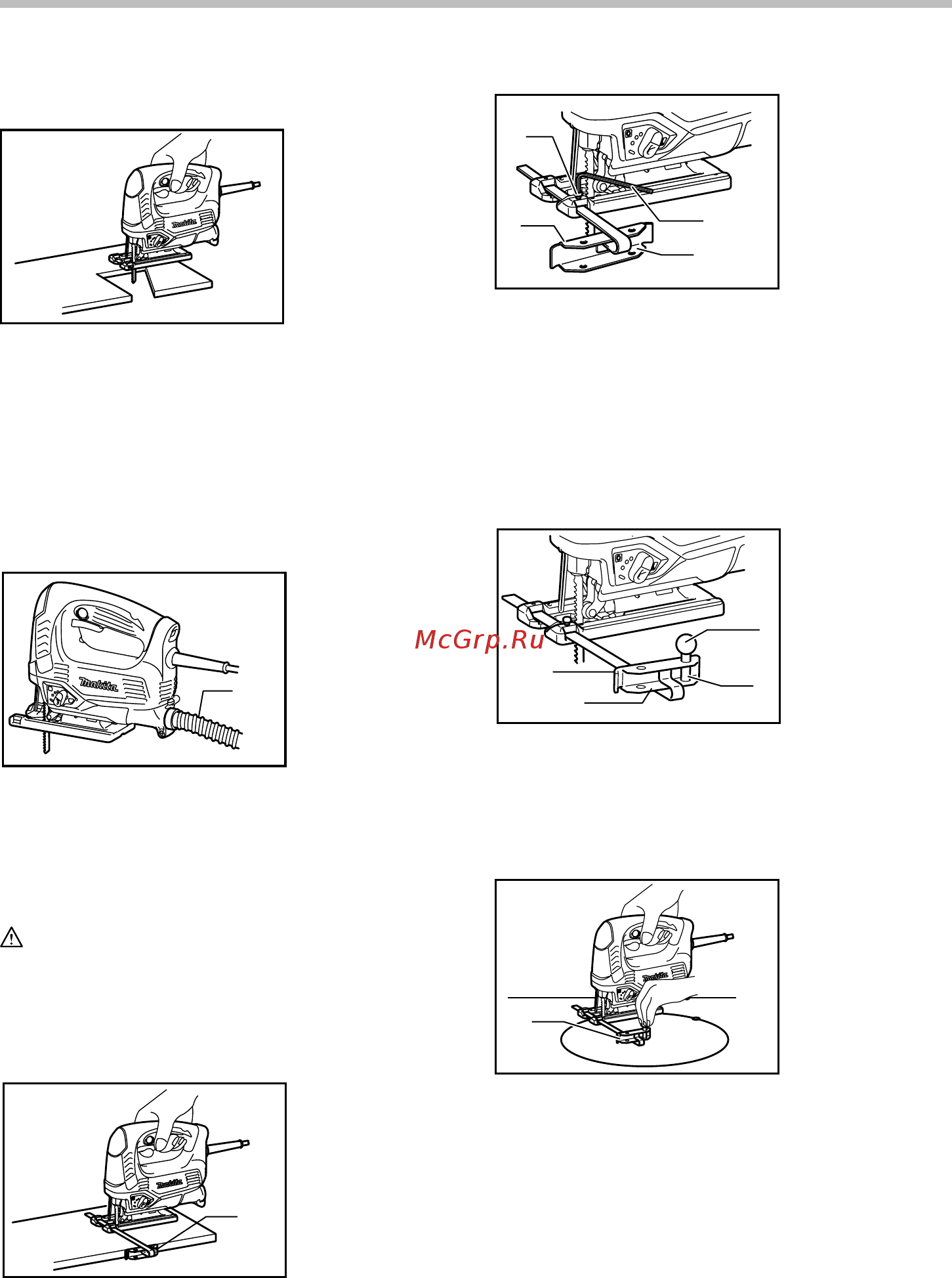

8
Finishing edges
011968
To trim edges or make dimensional adjustments, run the
blade lightly along the cut edges.
Metal cutting
Always use a suitable coolant (cutting oil) when cutting
metal. Failure to do so will cause significant blade wear.
The underside of the workpiece can be greased instead
of using a coolant.
Dust extraction
1
011969
Clean cutting operations can be performed by
connecting this tool to a Makita vacuum cleaner. Insert
the hose of the vacuum cleaner into the hole at the rear
of the tool.
Rip fence (Optional accessory)
CAUTION:
• Always be sure that the tool is switched off and
unplugged before installing or removing
accessories.
1. Straight cuts
1
011970
When repeatedly cutting widths of 160 mm or less,
use of the rip fence will assure, clean, straight cuts.
1
2
3
4
011971
To install, insert the rip fence into the rectangular
hole on the side of the base with the fence guide
facing down. Slide the rip fence to the desired
cutting width position, then tighten the bolt to
secure it.
2. Circular cuts
When cutting circles or arcs of 170 mm or less in
radius, install the rip fence as follows.
1
2
3
4
011972
Insert the rip fence into the rectangular hole on the
side of the base with the fence guide facing up.
Insert the circular guide pin through either of the
two holes on the fence guide. Screw the threaded
knob onto the pin to secure the pin.
1
011973
Now slide the rip fence to the desired cutting radius,
and tighten the bolt to secure it in place. Then move
the base all the way forward.
NOTE:
• Always use blades No. B-17, B-18, B-26 or B-27
when cutting circles or arcs.
1. Rip fence (Guide
rule)
1. Threaded knob
2. Pin
3. Rip fence
(Guide rule)
4. Fence guide
1. Bolt
2. Fence guide
3. Hex wrench
4. Rip fence (Guide
rule)
1. Rip fence
(Guide rule)
1. Hose
