English
6

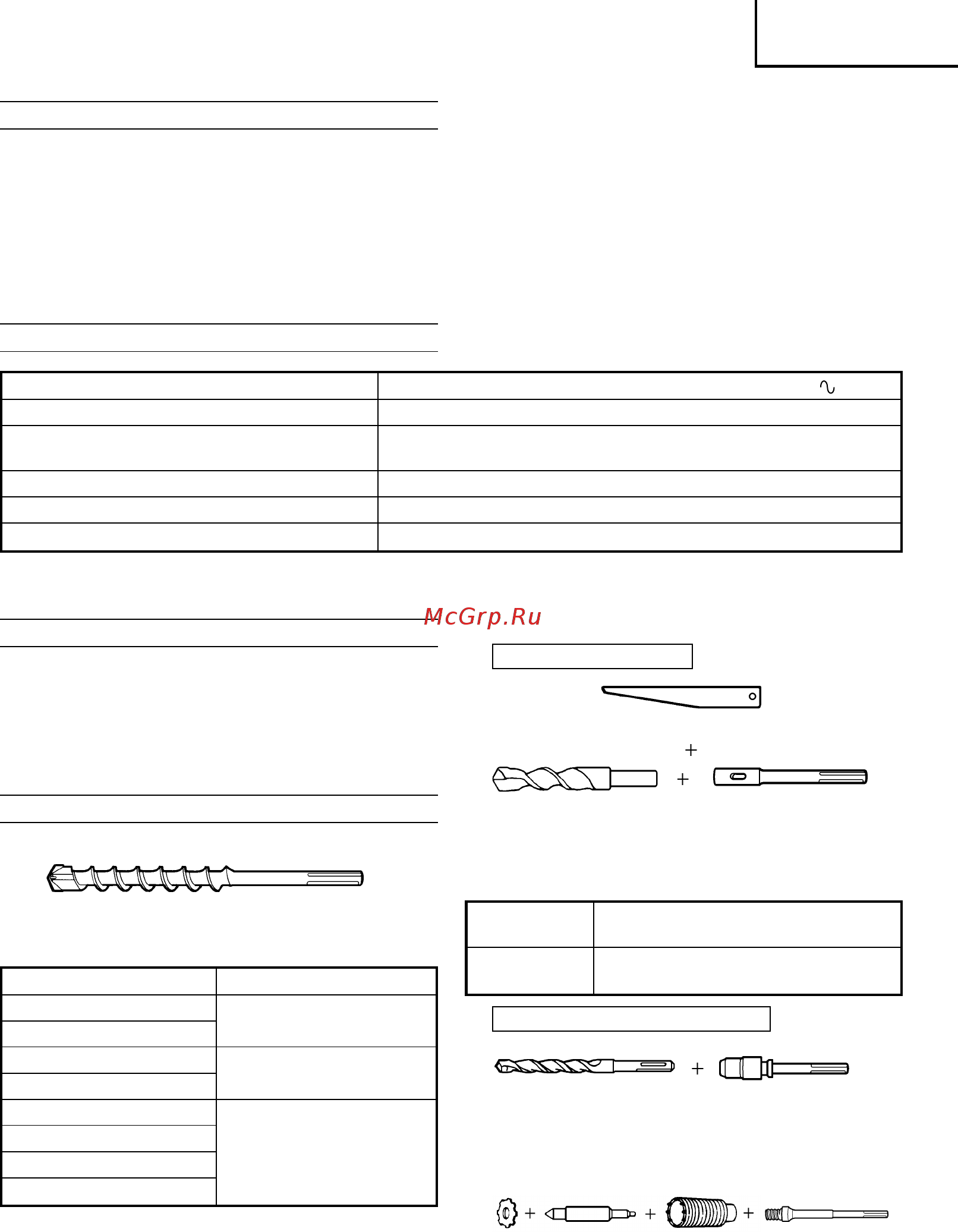

PRECAUTIONS ON USING ROTARY HAMMER
1. Wear ear protections
Exposure to noise can cause hearing loss.
2. Do not touch the bit during or immediately after
operation. The bit becomes very hot during
operation and could cause serious burns.
3. Before starting to break, chip or drill into a wall,
floor or ceiling, thoroughly confirm that such items
as electric cables or conduits are not buried inside.
4. Use auxiliary handles supplied with the tool.
Loss of control can cause personal injury.
5. Always hold the body handle and side handle of
the power tool firmly. Otherwise the counterforce
produced may result in inaccurate and even
dangerous operation.
6. Wear a dust mask
Do not inhale the harmful dusts generated in
drilling or chiseling operation. The dust can
endanger the health of yourself and bystanders.
STANDARD ACCESSORIES
(1) Case ............................................................................. 1
(2) Side Handle ................................................................ 1
(3) Stopper ........................................................................ 1
(4) Hammer Grease A .................................................... 1
Standard accessories are subject to change without
notice.
OPTIONAL ACCESSORIES (sold separately)
1. Through-hole drilling (Rotation + Hammering)
(1) Drill bit (SDS max shank)
SPECIFICATIONS
*Be sure to check the nameplate on product as it is subject to change by areas.
Voltage (by areas)* (110V, 115V, 120V, 127V, 220V, 230V, 240V)
Power input 1200 W*
Capacity Drill bit: 45 mm
Core bit: 125 mm
No load speed 120 – 240 min
-1
Full-load impact rate 1250 – 2500 min
-1
Weight (without cord, side handle) 8.0 kg
Outer diameter (mm) Overall length (mm)
16
340, 540
19
22
320, 520
25
28
32
370, 570
38
40
2. Anchor hole drilling (Rotation + Hammering)
Drill bit (Taper shank)
Adapter for SDS-plus shank bit
3. Large dia. hole boring (Rotation + Hammering)
(1) Center pin
䢇 Applied to core bits from 38 mm to 125 mm
䢇 Applied to core bits 32 mm and 35 mm
(3) Cotter
(1) Drill bit (taper shank)
External dia.: 11, 12.3, 12.7,
14.3, 14.5,
17.5 mm
(2) Taper shank
adapter
(SDS max shank)
Taper shank
Application drill bit
adapter
Morse taper Drill bit (taper shank)
(No. 1) 11, 12.3, 12.7, 14.3, 14.5, 17.5 mm
(1) Drill bit
(SDS-plus shank)
(2) Adapter for SDS-plus
shank bit
(SDS max shank)
(2) Core
bit
(Guide
plate)
(1) Center
pin
(3) Core bit shank
(SDS max
shank)
01Eng_DH45MR_EE 4/20/07, 2:12 PM6
