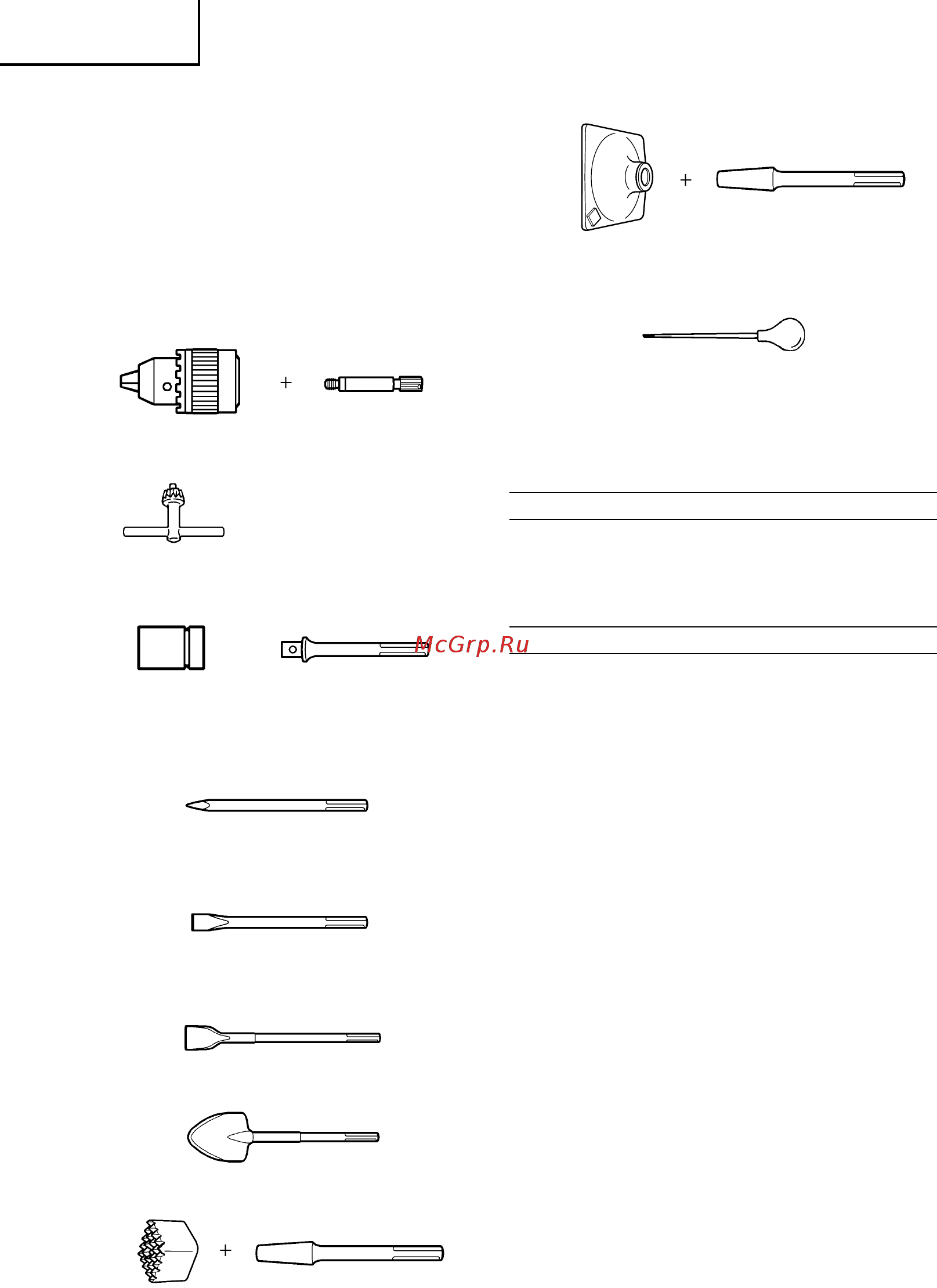

NOTE:
Do not use core bits 25 mm or 29 mm.
(2) Core bit
䢇 External dia. 25, 29, 32, 35, 38, 45, 54, 64, 79, 94,
105, 120, 125 mm
(with guide plate, not applicable to cores 25 mm
or 29 mm)
(3) Core bit shank
䢇 Applied to core bits above 38 mm
䢇 Applied to core bits below 35 mm
4. Drilling holes .... For drilling metal and wooden
materials
5. Bolt placing operation with Chemical Anchor
(Rotation + Hammering)
6. Crushing (Hammering)
7. Groove digging and edging (Hammering)
8. Asphalt cutting (Hammering)
9. Scooping Work (Hammering)
10. Surface Roughing (Hammering)
13 mm drill chuck
(13VLA)
Chuck adapter
(SDS max shank)
Chuck wrench
11. Tamping (Hammering)
12. Syringe (for chip removal)
䡬 Hammer grease A
500 g (in a can)
70 g (in a green tube)
30 g (in a green tube)
Optional accessories are subject to change without
notice.
APPLICATIONS
䡬 Drilling holes in concrete
䡬 Drilling anchor holes
䡬 Crushing concrete, chipping, digging, and squaring
(by applying optional accessories)
PRIOR TO OPERATION
1. Power source
Ensure that the power source to be utilized conforms
to the power requirements specified on the product
nameplate.
2. Power switch
Ensure that the power switch is in the OFF position.
If the plug is connected to a power receptacle while
the power switch is in the ON position, the power
tool will start operating immediately, which could
cause a serious accident.
3. Extension cord
When the work area is removed from the power
source, use an extension cord of sufficient thickness
and rated capacity. The extension cord should be
kept as short as practicable.
4. How to install tool
NOTE:
For tools such as a bull point and a cold chisel,
use only Hitachi genuine parts.
(1) Clean, then smear the tool shank with the grease
provided in the green tube (Fig. 1).
(2) To attach the tool (SDS max shank), insert it into
the hole until it contacts the innermost end of the
hole as illustrated in Fig. 2.
If you continue to turn the tool with slight pressure,
you can feel a spot where there is a hitch. At that
spot, pull the grip to the direction of an arrow mark
and insert the tool all the way until it hits the
innermost end.
Releasing the grip reverts the grip and secures the
tool in place.
(3) Pull the tool to make sure it is locked completely.
(4) To remove the tool, fully pull the grip in the direction
of the arrow and pull out the tool.
(Standard socket
on the market)
(SDS max shank)
12.7 mm Chemical
Anchor Adaptor
19 mm Chemical
Anchor Adaptor
(1) Bull point
Overall length: 280, 400 mm
(1) Cold chisel
Overall length: 280, 400 mm
(1) Scoop
(2) Shank
(1) Rammer
150 × 150 mm
(2) Shank
(1) Bushing Tool
