Avatar Tsunami ATU-500.1D [10/24] Страница 10

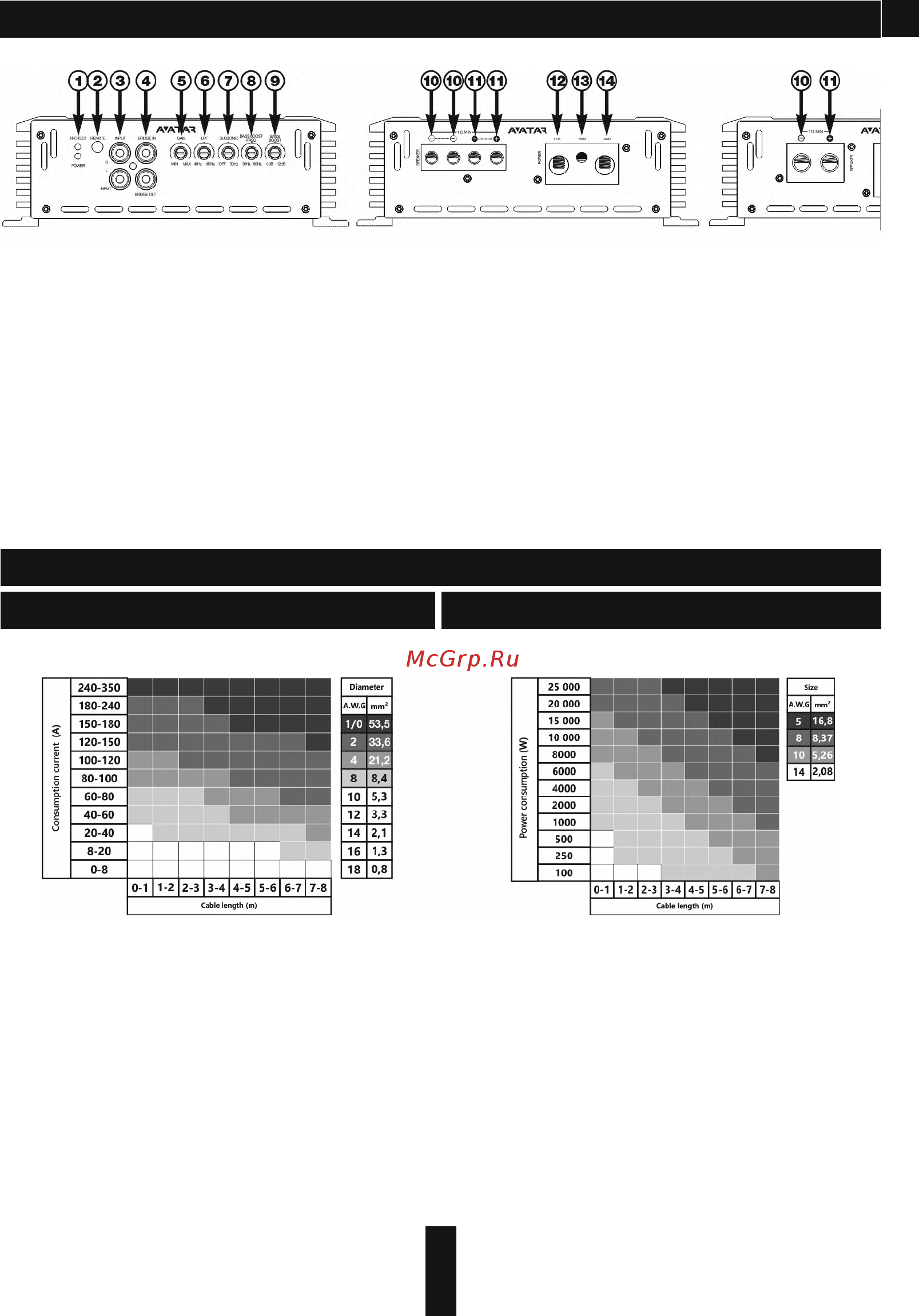

1. PROTECT – LED for operation (red), POWER – LED for operation (blue)

2. REMOTE – input for connection of the bass remote control

3. INPUT – signal input, RCA jack

4. BRIDGE IN – signal input for master ampliﬁer, RCA jack, BRIDGE OUT – signal output for slave ampliﬁer, RCA jack

5. GAIN – input signal level adjustment (0.2 V – 5 V)

6. LPF– low pass ﬁlter 40 Hz – 180 Hz (12 dB/Oct)

7. SUBSONIC - subsonic frequency ﬁlter 10 Hz – 50 Hz (12 dB/Oct)

8. BASS BOOST – FREQUENCY – bass frequency adjustment 30 – 80 Hz

9. BASS BOOST – LEVEL – bass level adjustment 0 – 12 dB

10. SPEAKER OUTPUT “-” – speaker negative terminal connections

11. SPEAKER OUTPUT “+” – speaker positive terminal connections

12. +12 V – power supply terminals +12 V

13. REM – connector of remote activation of the ampliﬁer

14. GND – grounding supply terminal

Application of connectors and controls

Use the table below to select the desired diameter based

on the length and the current consumption.

Use the table below to select the desired diameter based

on the length and the power consumption.

6. SELECTION OF THE DIAMETER OF POWER CABLES AND SPEAKER CABLES

Se l ec tio n of th e dia met er of t he po we r c ab l es Se l ec tio n of th e dia met er of t he sp ea k er c a bl es
