Installation Manual of Network BoX Camera
3
Hangzhou Hikvision Digital Technology Co., Ltd. | Copyright ©

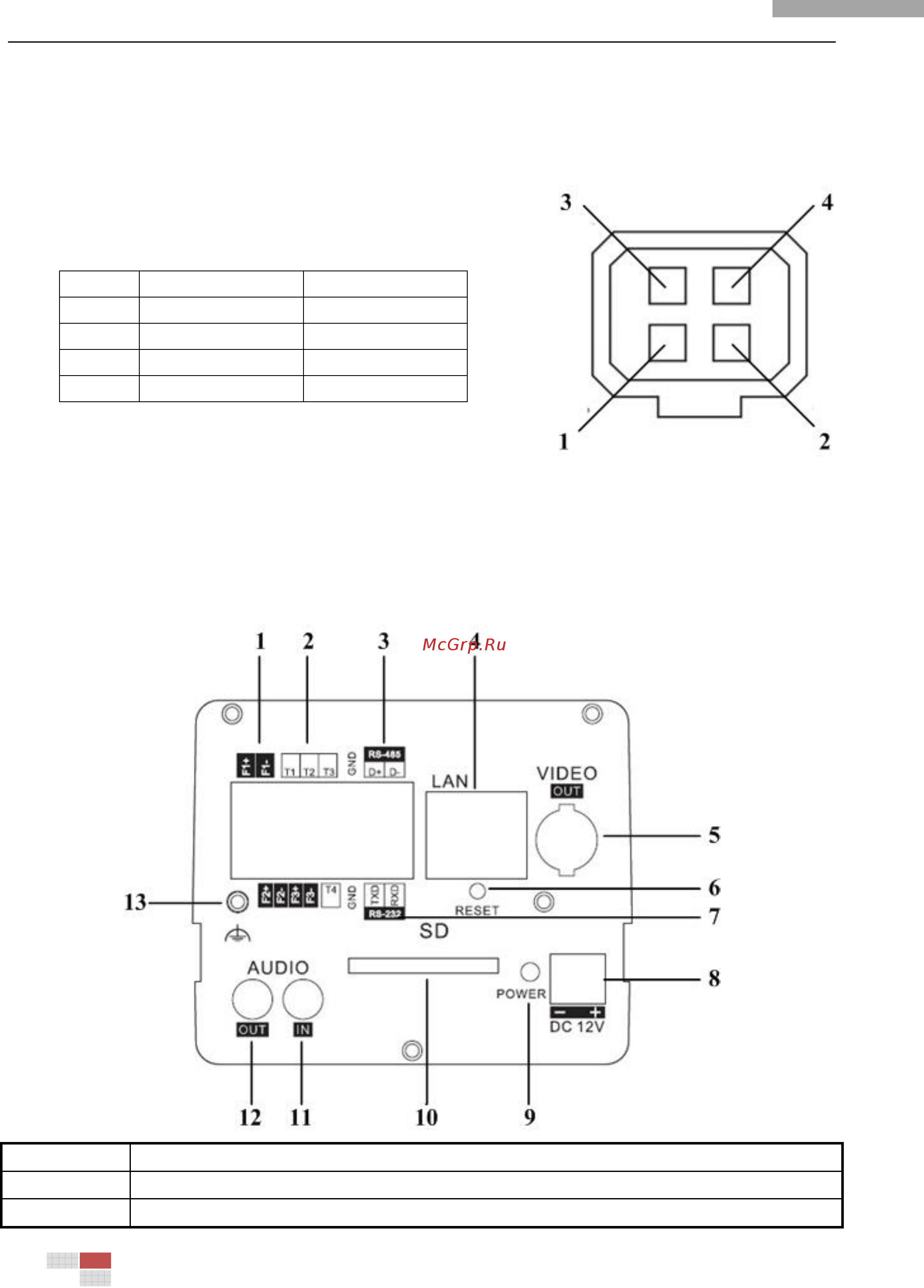

2.1.2 Rear Panel Description
Rear Panel of DS-2CD886BF-E and DS-2CD876BF:
Serial NO. Description
1 F1+ F1-, F2+ F2- , F3+ F3-: Alarm output interface
2 T1, T2, T3, T4, GND: Alarm input interface
NOTE:
The type of auto-iris interface is square
four-hole type, and the definition of each pin as
Video DC
shown:
1 Power Damp-
2 NC Damp+
3 Video Drive+
4 GND Drive-
Auto iris interface with video driving uses three
pins: Power, Video and GND; Auto iris interface
with DC driving uses four pins: Damp+, Damp-,
Drive+ and Drive-.
