Hikvision DS-2CD876BF-E [11/25] Note when the camera is power up press the reset button for about 10 seconds then all parameters including user name password ip address port number etc will be reset to the factory default settings

Installation Manual of Network BoX Camera

3 D+,D-: RS-485 interface

4 10M / 100M self-adaptive Ethernet interface

5 Video output interface

6 RESET: Reset all parameters to factory default settings

7 TXD , RXD,GND: RS-232 interface

8 Power supply

9 Power LED indicator, which turns red when power is applied to the unit

10 SD card slot

11 Audio input interface

12 Audio output interface

13 Ground

NOTE:

When the camera is power up, press the ‘RESET’ button for about 10 seconds, then all

parameters, including

user name, password, IP address, port number, etc., will be

reset to the factory default settings.

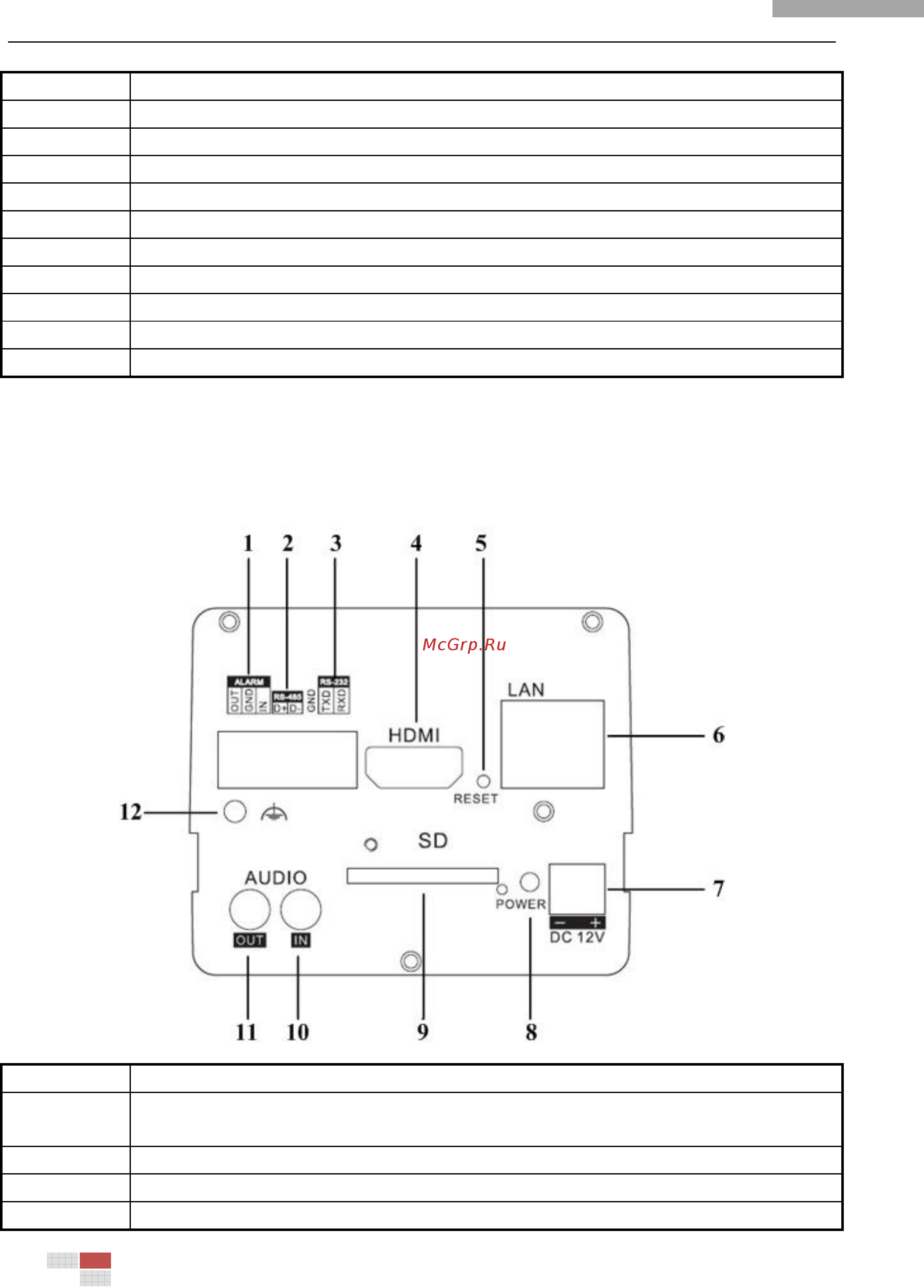

Rear Panel of DS-2CD886MF-E and DS-2CD876MF:

Serial NO. Description

1 ALARM OUT, GND: Alarm output interface

ALARM IN, GND: Alarm input interface

2 D+, D-: RS-485 interface

3 TXD , RXD,GND: RS-232 interface

4 HDMI interface
