2.1Ceilingmountinstallation

Note: Ifyouinstallthecameraontheceiling,ensurethattheceilingisstrongenoughtowithstandthree

timesweightofthecameraandtheninstallthecamer asecurely.Iftheceilingisnotstrongenough,the

camer amayfallandcauseseriousinjur y.



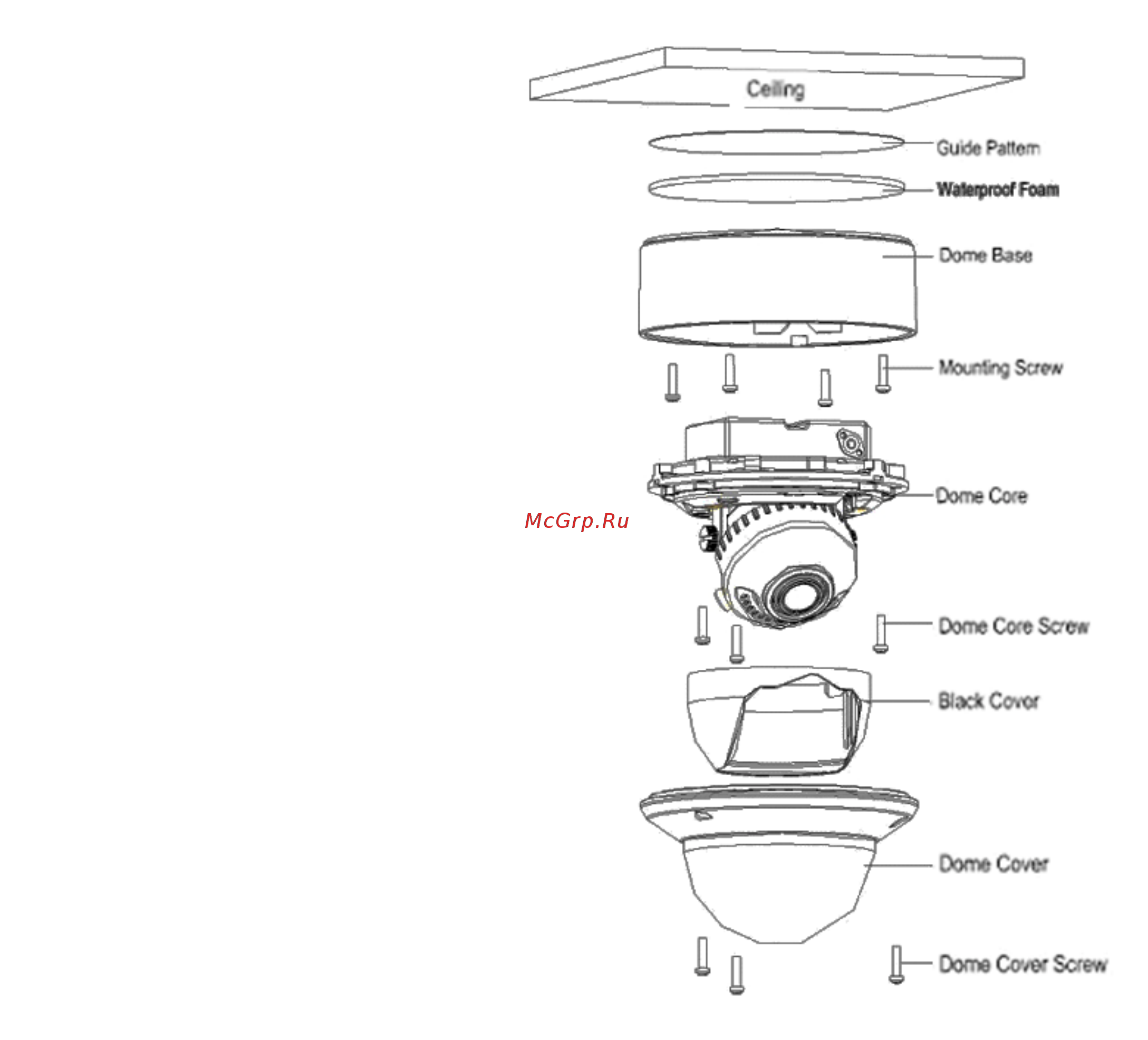

1.  Loosenthesetscrewswitha

hexagonalscrewdriver(attached

withthecamera),andremovethe

domecover.



2. Loosentheinsidesetscrewslocated

aroundthedomecore,andremove

thedomecoregently.



3. Installthedomebasefirst.Tighten

thescrewstothemountingsurface.



4. Installthedomecoretothedome

baseandtightenthescrews.



5. Adjust desired focus and scene by

turning and moving the 3‐axis

camerabracketbyhand.



6. Installblackcover.



7. Installthedomecoverandfixwith

domecoverscrew.



Note:

ToMaintainIP66Weatherproofing,itwillbenecessarytoapplyabeadofsealantaroundthedome

base!

Ifitiscementwall,userneedtouseexpansionscrew.Positionofscrewinstallationshouldbesameas

dome.


