Hikvision DS-2CC5173P-VPIRH [12/37] Loosen the inside set screws located around the dome core and remove the dome core gently



2. Loosentheinsidesetscrewslocatedaroundthedomecore,andremovethedomecoregently.



3. Installthesuppliedbracketonthewall.Refertopictureforscrewstobeused.



4. Installthedomecoretothedomebaseandtightenthescrews.



5. Adjustdesiredfocusandscenebyturningandmovingthe3‐axiscamerabracketbyhand.



6. Installblackcover.



7. Installthedomecoverandfixwithdomecoverscrew.



Note:Ifitiscementwall,userneedtouseexpansionscrew.Positionofscrewinstallationshouldbesame

asdome.

Note:ChoosingDS‐1240ZJcanrealizezeroAnglemonitoring.

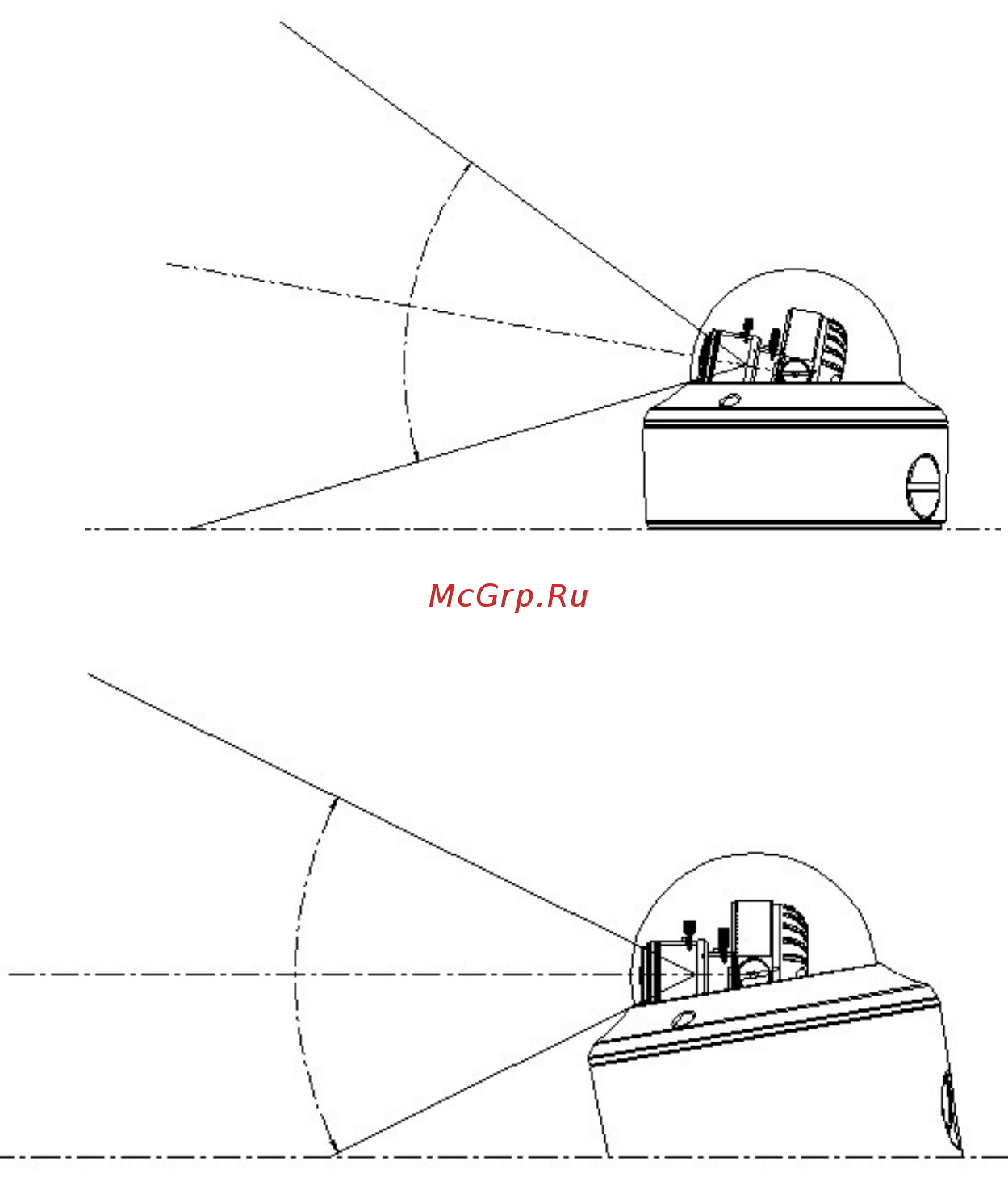

TheangleofDS‐1240ZJinstallation:


