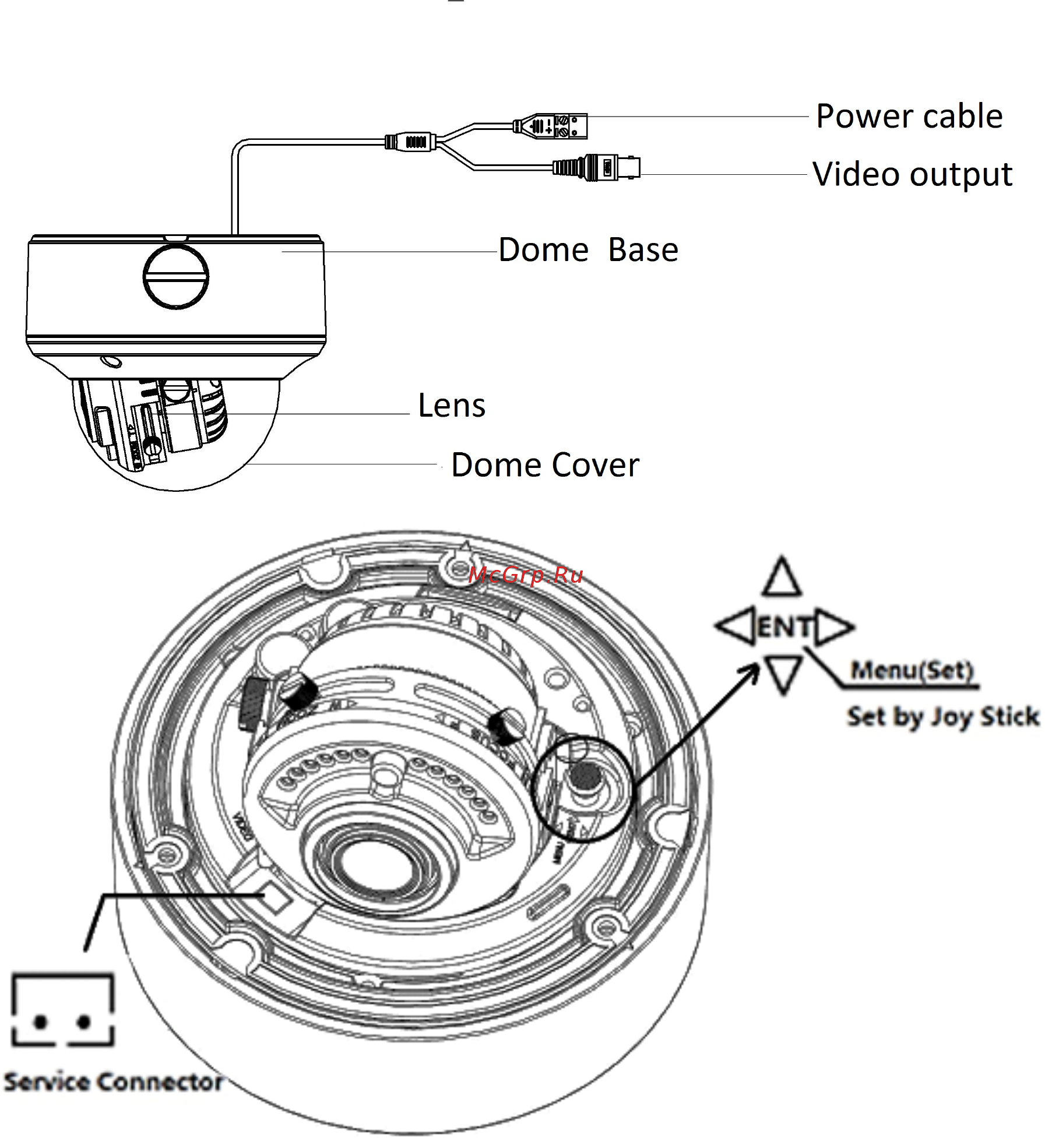

1.3Appearance
3‐axis:
Easytoad
justdesiredfocusandscenebyturningandmovingthe3‐axiscamerabracketbyhand.
X‐axis:0~355°Y‐axis:0~90°
4
Содержание
- Day night high definition color camera 1
- Ds 2cc5173p n vp ir h 1
- User s manual 1
- Thank you for purchasing our product if there are any questions or requests please do not hesitate to contact the dealer 2
- This manual is applicable to the ds 2cc5173p n vp ir h color cameras 2
- This manual may contain technical or printing errors and the content is subject to change without notice updates may be added to the new version of this manual we constantly strive to improve or update the products or procedures described in the manual 2
- Cautions follow these precautions to prevent potential injury or material damage 3
- Cautions injury or equipment damage may occur if any of the cautions are neglected 3
- Do not connect several devices to one power adapter as adapter overload may cause over heating or a fire hazard 3
- If smoke odor or noise rise from the device turn off the power at once and unplug the power cable and then please contact the service center 3
- If the product does not work properly please contact your dealer or the nearest service center never attempt to disassemble the camera yourself we shall not assume any responsibility for problems caused by unauthorized repair or maintenance 3
- In the use of the product you must be in strict compliance with the electrical safety regulations of the nation and region 3
- Input voltage should meet both the selv safety extra low voltage and the limited power source with ac 24v or dc 12v according to the iec60950 1 standard please refer to technical specifications for detailed information 3
- Please make sure that the plug is firmly connected to the power socket 3
- Safety instruction 3
- The precaution measure is divided into warnings and cautions 3
- These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss 3
- Warnings 3
- Warnings follow these safeguards to prevent serious injury or death 3
- Warnings serious injury or death may occur if any of the warnings are neglected 3
- When the product is mounted on wall or ceiling the device shall be firmly fixed 3
- Cautions 4
- Do not aim the camera at the sun or extra bright places blooming or smearing may occur otherwise which is not a malfunction and affect the endurance of ccd at the same time 4
- Do not drop the camera or subject it to physical shock 4
- Do not place the camera in extremely hot cold the operating temperature shall be 10 60 dusty or damp locations and do not expose it to high electromagnetic radiation 4
- Do not touch ccd charge coupled device modules with fingers if cleaning is necessary use clean cloth with a bit of ethanol and wipe it gently if the camera will not be used for an extended period please replace the lens cap to protect the ccd from dirt 4
- Keep the camera away from liquid while in use 4
- Make sure the power supply voltage is correct before using the camera 4
- Regular part replacement a few parts e g electrolytic capacitor of the equipment shall be replaced regularly according to their average enduring time the average time varies because of differences between operating environment and using history so regular checking is recommended for all the users please contact with your dealer for more details 4
- The ccd may be burned out by a laser beam so when any laser equipment is in using make sure that the surface of ccd will not be exposed to the laser beam 4
- To avoid heat accumulation good ventilation is required for operating environment 4
- While in delivery the camera shall be packed in its original packing or packing of the same texture 4
- Agc settings 22 5
- Appearance 4 5
- Appendix 30 5
- Blc eclipse settings 20 5
- Camera adjustments 13 5
- Camera id settings 16 5
- Ceiling embedded installation 10 5
- Ceiling mount installation 5 5
- Chapter 1 introduction 1 5
- Chapter 2 installation 5 5
- Chapter 3 menu description 16 5
- Chief introduction about function 1 5
- Day night settings 21 5
- Dimension 31 5
- Exit setting 29 5
- Indoor wall mount installation 8 5
- Language 23 5
- Lens type settings 17 5
- Menu button 15 5
- Menu details 16 5
- Menu interface 16 5
- Outdoor wall mount installation 11 5
- Product features 1 5
- Service connector 15 5
- Shutter settings 22 5
- Special function 23 5
- Specification 30 5
- Synchronization 23 5
- Table of contents 5
- Table of contentschapter 1 introductio 5
- Vari focal lens zoom and focus adjustments 13 5
- Wall mount installation 6 5
- White bal settings 18 5
- 3d digital noise reduction 6
- Advanced 3 axis design to meet different mounting requirements 6
- Advanced design technology with high reliability 6
- Advanced double plate design to guarantee ccd heat dissipation and image quality 6
- Advanced stepping motor and sleep mode to avoid icr oscillation 6
- Agc auto gain control adaptive brightness 6
- Auto electronic shutter control to adapt to different environments 6
- Auto iris 6
- Awb auto white balance with high color rendition 6
- Blc with programmable blc area 6
- Chapter 1 introduction 6
- Chief introduction about function 6
- Convenient back focus adjustment 6
- High light suppression for a clearer image in strong light 6
- High performance sony ccd for high definition and image clarity 6
- High snr for clear and pleasing image 6
- Icr filter auto switch 6
- Impact protection iec 60068 2 75eh 50j en 50102 up to ik10 6
- Ir smart prevent close quarters picture from overexposure 6
- Low illumination please refer to the specifications for details 6
- Motion detection in the surveillance area motion will trigger alarm user can adjust sensitivity 6
- Ole_link10 6
- Ole_link75 6
- Ole_link76 6
- Osd menu enables user to configure the operating parameters 6
- Privacy mask in the surveillance area user can cover areas to protect other s privacy the number of privacy mask areas are up to 8 6
- Privacy mask with 8 optional colors and 8 configurable areas 6
- Product features 6
- This series of cameras utilizes a high performance sensor and advanced print circuit board design technology with high resolution low distortion and low noise etc key features are 6
- Agc when the object being shot looks dim please turn on agc to enhance brightness to output standard video under different illumination the range of auto gain control must be large enough when under low illumination agc will increase camera s sensitivity and output bright and clear video 7
- Axis adjustment advanced 3 axis mechanism design meets different mounting requirement by flexibly adjusting the lens into the required angle 7
- Blc if there is glaring light in the background of the object being shot the object will look very dim in this situation turning on the blc function will make the object look bright and clear but the background scene will be overexposed 7
- Color b w auto switch the camera will display color image and become monochrome automatically at night 7
- Icr auto switch this will filter infrared light during the daytime and change to normal filter at night to ensure a high sensitivity and clear image 7
- Ole_link17 7
- Ole_link18 7
- Ole_link19 7
- Ole_link2 7
- Ole_link20 7
- Ole_link3 7
- Osd on screen display the camera supports user friendly menu interface on the screen convenient for user selecting various functions 7
- S n ratio it is the ratio of signal voltage and noise voltage if the ratio is larger the effect of noise is less and the image is cleaner 7
- Synchronous system internal synchronization uses synchronous signal which is generated by the camera s crystal oscillator to complete synchronous scan power synchronization uses synchronous signal which is generated by camera s adaptor to complete synchronous scan 7
- White balance a camera cannot adjust the color temperature according to lighting changes as well the human eye this causes color deviation white balance is the white rendition ability of the camera to adjust the problem according to the environment automatically 7
- Blc off blc on 8
- High light suppression identify a glare point and suppress it automatically in order to see the image around the glare point more clearly 8
- Appearance 9
- Easy to adjust desired focus and scene by turning and moving the 3 axis camera bracket by hand 9
- X axis 0 355 y axis 0 90 9
- Ceiling mount installation 10
- Chapter 2 installation 10
- If it is cement wall user need to use expansion screw position of screw installation should be same as dome 10
- Note if you install the camera on the ceiling ensure that the ceiling is strong enough to withstand three times weight of the camera and then install the camera securely if the ceiling is not strong enough the camera may fall and cause serious injury 10
- To maintain ip66 weatherproofing it will be necessary to apply a bead of sealant around the dome base 10
- Loosen the set screws with a hexagonal screw driver attached with the camera and remove the dome cover 11
- Note if you install the camera on the ceiling ensure that the ceiling is strong enough to withstand three times weight of the camera and then install the camera securely if the ceiling is not strong enough the camera may fall and cause serious injury 11
- Wall mount installation 11
- Adjust desired focus and scene by turning and moving the 3 axis camera bracket by hand 12
- Install black cover 12
- Install the dome core to the dome base and tighten the screws 12
- Install the dome cover and fix with dome cover screw 12
- Install the supplied bracket on the wall refer to picture for screws to be used 12
- Loosen the inside set screws located around the dome core and remove the dome core gently 12
- Note choosing ds 1240zj can realize zero angle monitoring 12
- Note if it is cement wall user need to use expansion screw position of screw installation should be same as dome 12
- The angle of ds 1240zj installation 12
- Indoor wall mount installation 13
- Note if you install the camera on the ceiling ensure that the ceiling is strong enough to withstand three times weight of the camera and then install the camera securely if the ceiling is not strong enough the camera may fall and cause serious injury 13
- Ds 1229zj ds 1239zj electric box included 14
- Note if it is cement wall user need to use expansion screw position of screw installation should be same as dome 14
- Ceiling embedded installation 15
- Note if it is cement wall user need to use expansion screw position of screw installation should be same as dome 15
- Note if you install the camera on the ceiling ensure that the ceiling is strong enough to withstand three times weight of the camera and then install the camera securely if the ceiling is not strong enough the camera may fall and cause serious injury 15
- Following is ds 1242zj and ds 1243zj 16
- Note if it is cement wall user need to use expansion screw position of screw installation should be same as dome 16
- Note if you install the camera on the ceiling ensure that the ceiling is strong enough to withstand three times weight of the camera and then install the camera securely if the ceiling is not strong enough the camera may fall and cause serious injury 16
- Outdoor wall mount installation 16
- Ds 1242zj ds 1243zj with gang box 17
- Camera adjustments 18
- Loosen the focus locking screw 18
- Loosen the zoom locking screw 18
- Tighten the zoom locking screw 18
- To adjust the field of view 18
- To adjust the focus 18
- To perform the following camera adjustments connect a monitor then turn on power to the camera and monitor to use the service connector refer to 2 service connector 18
- Turn the zoom adjustment ring clockwise or counterclockwise to select the field of view 18
- Vari focal lens zoom and focus adjustments 18
- Turn the focus locking screw clockwise or counterclockwise to adjust the focus 19
- When the optimal focus is reached tighten the focus locking screw 19
- Following pictures show the position of service connector 20
- Menu button 20
- Push the joy stick for one second and the osd appears on the screen movie the joy stick up down left right to control the osd functions 20
- Service connector 20
- Camera id settings 21
- Chapter 3 menu description 21
- Menu details 21
- Menu interface 21
- On off the camera id is is not displayed on the screen 21
- Press menu button the osd menu will show on the screen 21
- Press up down button to move up down cursor left right button to select the different options 21
- Press up down to move cursor to camera id press left right to enable or disable this setting 21
- Select on and press confirm button to enter the camera id menu 21
- Alc auto iris fixed shutter 22
- Alc uses auto iris to control camera lens 22
- Elc uses auto electronic shutter to adjust the brightness 22
- Lens type settings 22
- Note different values represent the different brightness 22
- Note elc auto shutter fixed iris 22
- Press up down to move the cursor to choose characters numbers symbols and press confirm button to modify the camera id press left right to move cursor to the character of camera id press confirm button to change the characters of camera id on the discontinues line move the cursor to the clr to clear all characters inputted move the cursor to pos setting and press confirm button to enter the camera id position setting menu then press up down to change the position of camera id press confirm button to exit the camera id position setting menu and return to the camera id menu move the cursor to return and press confirm button to return to the previous menu move the cursor to exit press left right to save press confirm button to exit and save camera id setting 22
- Press up down to move the cursor to lens and press left right to select the lens type as elc or alc 22
- Press up down to move the cursor to the value press left right to adjust brightness move the cursor to return and press confirm button to return to the previous menu 22
- Select alc and press confirm then alc setup menu is displayed on the screen 22
- Select elc and press confirm button then the elc setup menu is showed on the screen 22
- Atw1 auto traced balance mode 1 built in algorithm for automatic white balance setting usually used for indoor environment 23
- Atw2 auto traced balance mode 2 built in algorithm for automatic white balance setting usually used for outdoor environment 23
- Manual wb setting is as below 23
- Move the cursor to value press up down to adjust the menu move the cursor to return and press the confirm button to return to the previous menu 23
- Ole_link12 23
- Ole_link13 23
- Ole_link14 23
- Ole_link15 23
- Ole_link8 23
- Ole_link9 23
- Press the cursor to white bal then press left right to select atw1 atw2 manual or atc 23
- Press up down to blue and red then press left right to adjust the value then move the cursor to return press confirm button to return to the previous menu 23
- Press up down to temp and press left right to adjust the value of temperature then move the cursor to return and press confirm button to return to the previous menu 23
- Select manual and the menu is displayed on the screen 23
- White bal settings 23
- Atc automatically white balance control usually used for place that color temperature is stable 24
- Note when night mode is selected white bal is disabled 24
- Blc back light compensation 25
- Blc eclipse settings 25
- Move cursor to area press confirm button to enter the submenu first press direction button to set the blc area position as up down left right or middle then press confirm button to set the size of blc area in the same way press confirm button to choose ret to return to the previous menu or again to reset position and size 25
- Move cursor to blc eclipse press left right to blc and press confirm button to enter the blc setup menu 25
- Move cursor to default to set value and area as default setting in default setting value is mid and position of the blc area is in the middle 25
- Move cursor to value to select low mid or high 25
- Move the cursor to return press confirm button to return to the previous menu 25
- Press up down to blc eclipse and press confirm button and the menu is displayed on the screen 25
- Area setting 26
- Auto setting 26
- Day night settings 26
- Default 26
- Eclipse 26
- Eclipse mode all day and night modes could be selected when highlight suppression is available 26
- Move cursor to blc eclipse press left right to eclipse and press confirm button to enter hlc setup menu 26
- Note move cursor to blc eclipse and press left right to off to disable eclipse and blc function 26
- Press left right to adjust the value value range from 0 8 26
- Press up down to move the cursor to day night and press left right to select color night auto ext 26
- Select auto and press confirm button to enter the submenu 26
- The default eclipse area setting is full screen and default value is 4 move the cursor to return press confirm button to return to the previous menu 26
- The position and size of eclipse area could be set in the same way blc are setting 26
- Value setting 26
- Agc includes off low middle or high press left right to select desired mode 27
- Agc settings 27
- Day night night day the values here indicate that satisfied values which means the threshold value of conversion between day mode and night mode 27
- Delay range from 0 to 63 the value 36 in delay option means the conversion time is 36 seconds between day mode and night mode 27
- Flk means flickerless 27
- If it is ds 2cc5173n vpir auto setting is unavailable 27
- Move cursor to shutter through pressing up down 27
- Note auto 2 auto 4 and so on mean sense up function realized through adding exposure time 27
- Note ext is used when infrared lamp is available 27
- Ole_link28 27
- Ole_link29 27
- Shutter settings 27
- When lens is alc press left right to select shutter speed auto 2 4 8 16 32 64 128 256 1 100000 1 10000 1 5000 1 2000 1 1000 1 500 1 250 flk 1 50 27
- When lens is elc press enter to select shutter speed auto 2 4 8 16 32 64 128 256 1 100000 1 10000 1 5000 1 2000 1 1000 1 500 1 250 flk 1 50 27
- Language 28
- Language is default as english 28
- Move cursor to special press enter and the menu is displayed on the screen 28
- Ole_link16 28
- Ole_link25 28
- Ole_link4 28
- Ole_link5 28
- Special function 28
- Supports internal synchronization 28
- Synchronization 28
- Video setting 28
- Area display press left or right to turn it on or off if it is off motion detection is disabled in this area 29
- Area move cursor to area and press left right to select from four areas 29
- Freeze 29
- Freeze current picture if it is on 29
- Gamma values include user range from 0 5 to 1 0 with 0 5 interval 29
- H represents horizontal v represents vertical 29
- If it is on press confirm button to enter the submenu to set size and position of area 29
- Mirror 29
- Motion 29
- Motion disp press left right to turn it on or off if it is on the color of motion detection area is changed 29
- Move cursor to gamma and press left right to set gamma value 29
- Move cursor to motion press left right to turn it on press confirm button to enter the submenu 29
- Move cursor to zoom press left right to select on press confirm button to enter 29
- Move the cursor to mirror press left right to select mid h v or off 29
- Move the cursor to return press confirm button to return to the previous menu 29
- Ole_link50 29
- Ole_link51 29
- Value select sensitivity value from 0 to 40 the higher value the more sensitive 29
- H and v are available when the image is magnified 30
- H horizontal migration 30
- Move cursor to pos neg and press left right to select pos or neg if pos is selected the video will be normal if neg is selected the video will be negative 30
- Move the cursor to return press confirm button to return to the previous menu 30
- Pos neg 30
- Press left right to select on and press confirm button to enter dnr setup menu 30
- Rate zoom multiple maximum to 32 hold on left right button to zoom in out 30
- User can turn on or off the digital noise reduction 30
- V vertical migration 30
- Value different values represent different noise reduction levels the higher value the better 30
- According to this press confirm button to start check after covering the lens 31
- Blue set blue value range from 0 to 100 31
- Defect setting 31
- Means brightness is adjustable from 0 to 255 31
- Means sharpness is adjustable from 0 to 31 31
- Move cursor to privacy press confirm button to defect setup menu 31
- Move the cursor to return press confirm button to return to the previous menu 31
- Note better to use this function in dark environment 31
- Press confirm button to enter c gain menu 31
- Rate 4 8 16 32 64 31
- Red set red value range from 0 to 100 31
- Sharpness 31
- Start press confirm button a notice appears cover the lens then press enter key 31
- Value range from 1 to 6 value represent the size of dot defect 31
- Dwdr setting 32
- High level values range from 0 15 press left right to change it you adjust it for a brighter area the higher value means brighter 32
- High level values range from 0 15 press left right to change it you adjust it for the brighter area the higher value means brighter 32
- Indoor mode 32
- Low level values range from 0 15 press left right to change it you adjust it for a darker area the higher value means brighter 32
- Low level values range from 0 15 press left right to change it you adjust it for the darker area the higher value means brighter 32
- Move cursor to dwdr it is unavailable in the default setting press left right to select indoor or outdoor mode 32
- Move cursor to privacy press confirm button and the menu is displayed on the screen 32
- Move the cursor to return press confirm button to return to the previous menu 32
- Outdoor mode 32
- Privacy setting 32
- And you can set size and position of the area 33
- Area display you can select which area to display by selecting on press confirm button to enter 33
- Area move cursor to area press confirm button to enter the submenu first press direction button to set the ir smart area position as up down left right or middle then press confirm button to set the size of ir smart area in the same way press confirm button to choose ret to return to the previous menu or again to reset position and size 33
- Area move cursor to area there are 8 default areas in different color and default position 33
- Color the color of area could be changed by select the number range from 0 to 15 33
- Ir smart 33
- Move cursor to ir smart press left or right to turn it on off if it is on press confirm button to enter 33
- Move cursor to slow shutter press left or right to turn it on off if it is on press confirm button to enter 33
- Note ir smart is only available when there is infrared lamp 33
- Return move the cursor to return press confirm button to return to the previous menu 33
- Slow shutter 33
- Value range from 1 to 15 33
- Cancel press enter to cancel the setting parameter and exit the menu 34
- Default press enter to restore the factory default value and exit the menu 34
- Exit setting 34
- Move cursor to exit and press left right to select from save cancel and default then press enter to exit the menu 34
- Ole_link78 34
- Ole_link79 34
- Ole_link80 34
- Ole_link81 34
- Return move the cursor to return press confirm button to return to the previous menu 34
- Save press enter to save the setting parameter and exit the menu 34
- Slow shutter 2 4 8 16 32 64 128 256 34
- 10 60 14 f 140 f humidity 90 or less non condensing 35
- 12mm f1 35
- 3 sony super had ccd ii 35
- Ac24v 20va 10 dc12v 300ma 10 35
- Angle adjustment 35
- Angle of view 92 27 35
- Anti flicker 35
- Appendix 35
- Auto 1 auto 2 day night 35
- Auto auto trace awb manual indoor outdoor 35
- Auto gain 35
- Auto iris 35
- Auto white balance 35
- B w 0 14lux f1 agc on 0 0004lux f1 agc on sensitivity 256 35
- B w 0 1lux f1 agc on 0 0003lux f1 agc on sensitivity 256 35
- Camera 35
- Camera id 35
- Color 0 4lux f1 agc on 0 004lux f1 agc on sensitivity 256 35
- Color 0 lux f1 agc on 0 003lux f1 agc on sensitivity 256 35
- D n mode 35
- Day night 35
- Dc drive 35
- Dimension 35
- Ds 2cc5173p n vp ir h 35
- Effective pixels 35
- English chinese 35
- G 4 0lbs 35
- Gamma correction digital zoom digital noise reduction pos neg mirror resolution y c blemish detection 35
- General 35
- H 25w max with heater and fan on 35
- H 40 60 40 f 140 f with heater and fan on 35
- H ac24v 10 35
- Horizontal resolution 35
- Iec60068 2 75 test eh 50j en50102 exceeding ik10 35
- Image sensor 35
- Impact protection 35
- Internal power synchronization 35
- Ir 10w max with ir on 35
- Ir 20 30 meters 35
- Ir cut filter auto switch 35
- Ir range 35
- Language 35
- Lens mount 35
- Low middle high off 35
- Min illumination 35
- More than 52db 35
- Motion detection 35
- Ntsc 1 60s to 1 100 000s 35
- Ntsc 768 h 494 v 35
- On off 35
- On off 15 letters adjusted position 35
- On off maximum 8 zones 35
- Operating conditions 35
- Pal 1 50s to 1 100 000s 35
- Pal 752 h 582 v 35
- Pal ntsc 35
- Pan 0 355 tilt 0 80 rotation 90 35
- Parameter 35
- Power consumption 35
- Power supply 35
- Privacy mask 35
- S n ratio 35
- Shutter time 35
- Signal system 35
- Specification 35
- Synchronization 35
- Tvl 1 3 ccd icr day night vandal proof dome camera 35
- Tvl color 600tvl b w 35
- Video output 35
- Vp p composite output 75ω bnc test monitor out 1vp p composite output 75ω bnc device line 35
- Weather proof rating 35
- Weight 35
- Φ145 124 mm 35
- Dimension 36
- Note following is camera with ds 1240zj bracket 36
- First choice for security professionals 37
Похожие устройства
- Hikvision DS-2CC5195P-VPIR Инструкция по эксплуатации
- Hikvision DS-2CC1181P Инструкция по эксплуатации
- Hikvision DS-2CC1181P-A Инструкция по эксплуатации
- Hikvision DS-2CC1191P Инструкция по эксплуатации
- Hikvision DS-2AF1-412x Инструкция по эксплуатации
- Hikvision DS-2CD8253F-EIZ Инструкция по эксплуатации
- Hikvision DS-2DF1-783 Инструкция по эксплуатации
- Hikvision DS-2CD754F-EI Инструкция по эксплуатации
- Hikvision DS-2CD7255F-EIZH Инструкция по эксплуатации
- Hikvision DS-2AF1-401 Инструкция по эксплуатации
- Hikvision DS-2AF1-517-B Инструкция по эксплуатации
- Hikvision DS-2CC1132P-IR1 Инструкция по эксплуатации
- Hikvision DS-2CC1112P Инструкция по эксплуатации
- Hikvision DS-2CZ2132P-A Инструкция по эксплуатации
- Hikvision DS-2CZ2152P-A Инструкция по эксплуатации
- Hikvision DS-2CD2632F-IS Инструкция по эксплуатации
- Hikvision DS-2DE5184-A Инструкция по эксплуатации
- Hikvision DS-2AE7168-A Инструкция по эксплуатации
- Hikvision DS-2AE7164-A Инструкция по эксплуатации
- Hikvision DS-2AE5154-A Инструкция по эксплуатации
