Hotpoint-Ariston GPL 64L CI [5/24] Burner and nozzle specifications for 65 cm versions only
GB
5
! If the appliance is connected to liquid gas, the regulation
screw must be fastened as tightly as possible.
! Once this procedure is finished, replace the old rating
sticker with one indicating the new type of gas used.
Stickers are available from any of our Service Centres.
! Should the gas pressure used be different (or vary
slightly) from the recommended pressure, a suitable
pressure regulator must be fitted to the inlet pipe (in order
to comply with current national regulations).
Electrical
connections
DATA PLATE
see data plate
This appliance conforms to the following
European Economic Community directives:
- 2006/95/EEC dated 12/12/06 (Low
Voltage) and subsequent amendments
- 2004/108/EEC dated 15/12/04
(Electromagnetic Compatibility) and
subsequent amendments
- 93/68/EEC dated 22/07/93 and
subsequent amendments.
- 2009/142/EEC dated 30/11/09 (Gas) and
subsequent amendments.
- 2002/96/EC and subsequent
amendments.
Table 1 Liquid Gas Natural Gas
Burner Diameter Thermal Thermal By-pass Nozzle Flow* Thermal Nozzle Flow*
power power 1/100 1/100 (g/h) power 1/100 (l/h)
kW kW kW
(p.c.s.*) (p.c.s.*) (p.c.s.*)
(mm) Reduced Nominal (mm) (mm) *** ** Nominal (mm)
Supply pressures
Nominal (mbar)
Minimum (mbar)
Maximum (mbar)
28-30
20
35
37
25
45
20
17
25
Reduced Fast (RR)
Semi Fast (S)
Auxiliary (A)
100
75
55
0.70
0.40
0.40
2.60
1.65
1.00
39
28
28
80
64
50
189
120
73
186
118
71
2.60
1.65
1.00
122 (H)
96 (Y)
79 (6)
248
157
95
Double flame
(DCDR internal) (1)
30 0,30 0,90 27 44 65 64 0,90 74 86
Double
flame (1)
(DCDR
internal)
(DCDR
external
2 nozzle)
130 1,50 3,60
27 44
262 257 3,60
74
343
55 60x2 100x 2

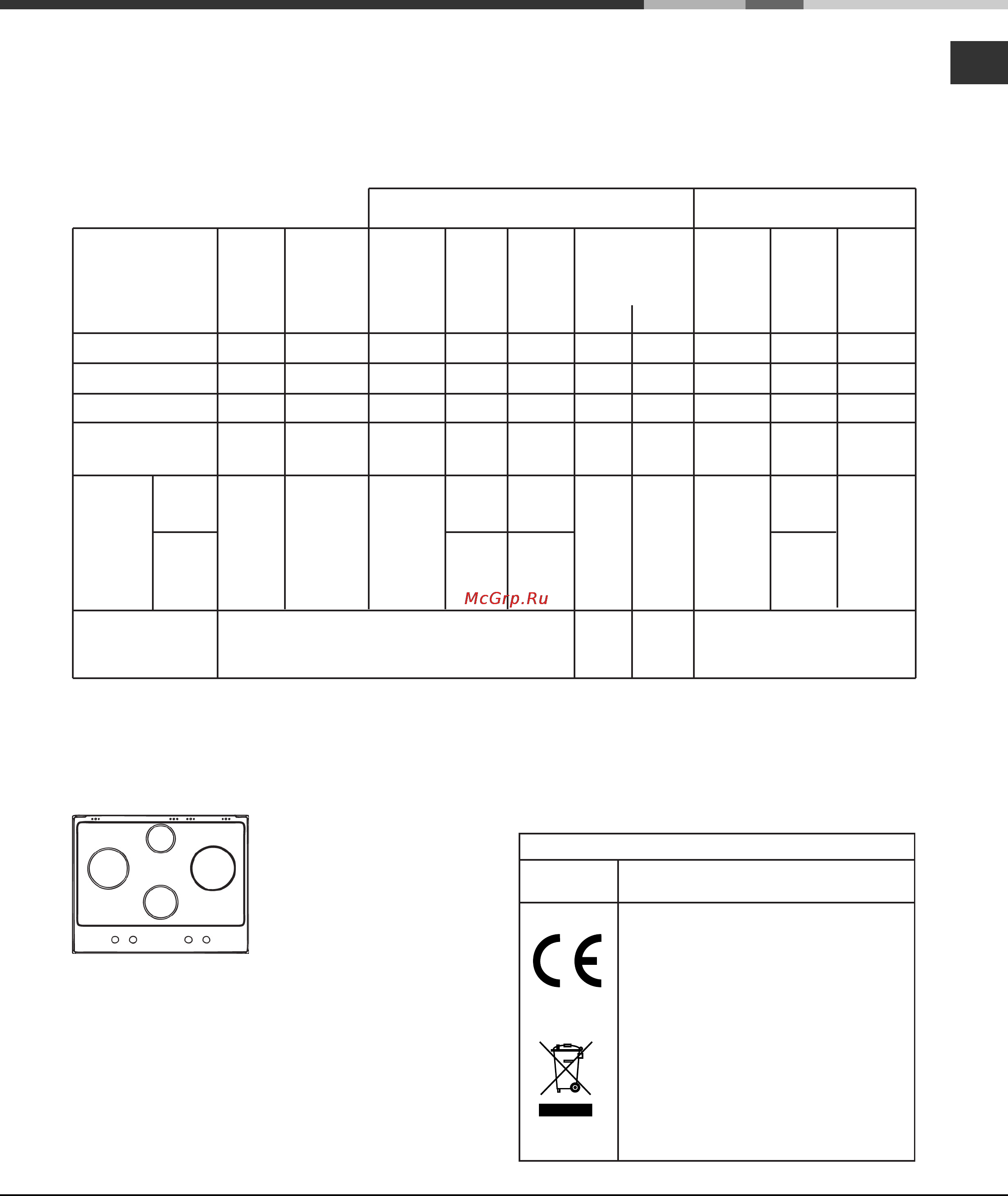

Burner and nozzle specifications (for 65 cm versions only)
(1) For single-control DRDA (DCDR) burner only
* At 15°C and 1013 mbar - dry gas
** Propane P.C.S. = 50.37 MJ/Kg
*** Butane P.C.S. = 49.47 MJ/Kg
Natural P.C.S. = 37.78 MJ/m³
GPK 64L GH RU/HA
RR
DC
S
A
