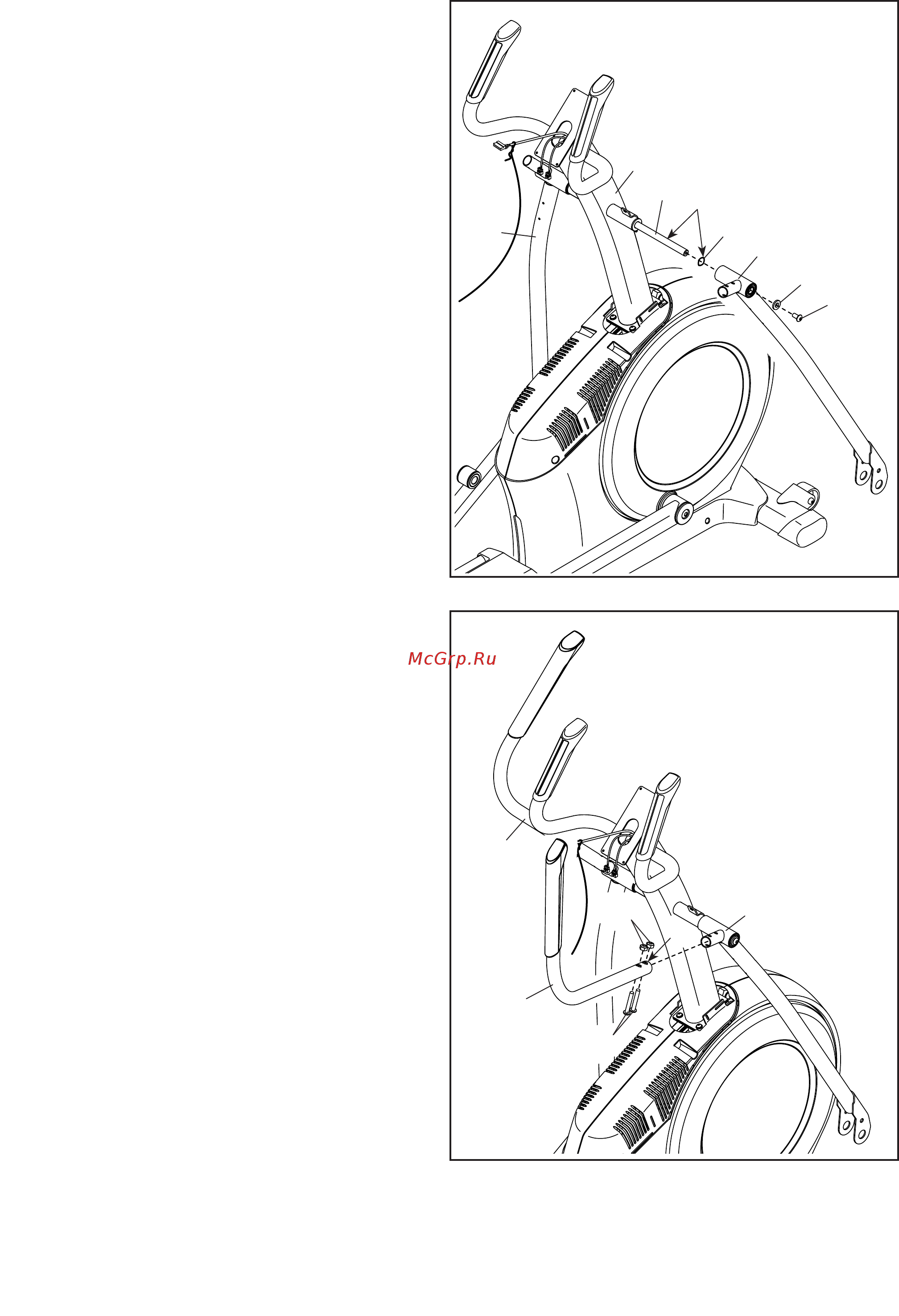

7. Using a plastic bag to keep your fingers clean,

apply some of the included grease to the Pivot

Axle (35) and to two 16mm Wave Washers (54).

Insert the Pivot Axle (35) through the Upright (4)

and center it. Tip: It may be helpful to use a

rubber mallet.

Identify the Right Upper Body Leg (60) and ori-

ent it as shown.

Slide a 16mm Wave Washer (54) and the Right

Upper Body Leg (60) onto the right side of the

Pivot Axle (35).

Repeat these actions for the Left Upper Body

Leg (46).

Tighten an M8 x 13mm Screw (82) and an M8

Washer (97) into each end of the Pivot Axle (35)

at the same time.

Grease

8. Identify the Right Upper Body Arm (61) and ori-

ent it as shown.

Slide the Right Upper Body Arm (61) onto the

Right Upper Body Leg (60).

Attach the Right Upper Body Arm (61) with two

M8 x 38mm Bolts (96) and two M8 Locknuts

(102). Make sure that the Locknuts are in the

hexagonal holes (C).

Repeat this step for the Left Upper Body

Arm (47).

102
