Chicago Pneumatic CP6070-P15H Буклет онлайн

CP6060 - CP6070 Series

Impact Wrench 3/4" - 1"

Item Bond

1 / 32 Loctite 577

68-81 N.m 65-70 ft.lbs

109 / 32 Loctite 577

68-81 N.m 65-70 ft.lbs

44 / 32 -

19-20 N.m 14-15 ft.lbs

115 / 113 Loctite 262 -

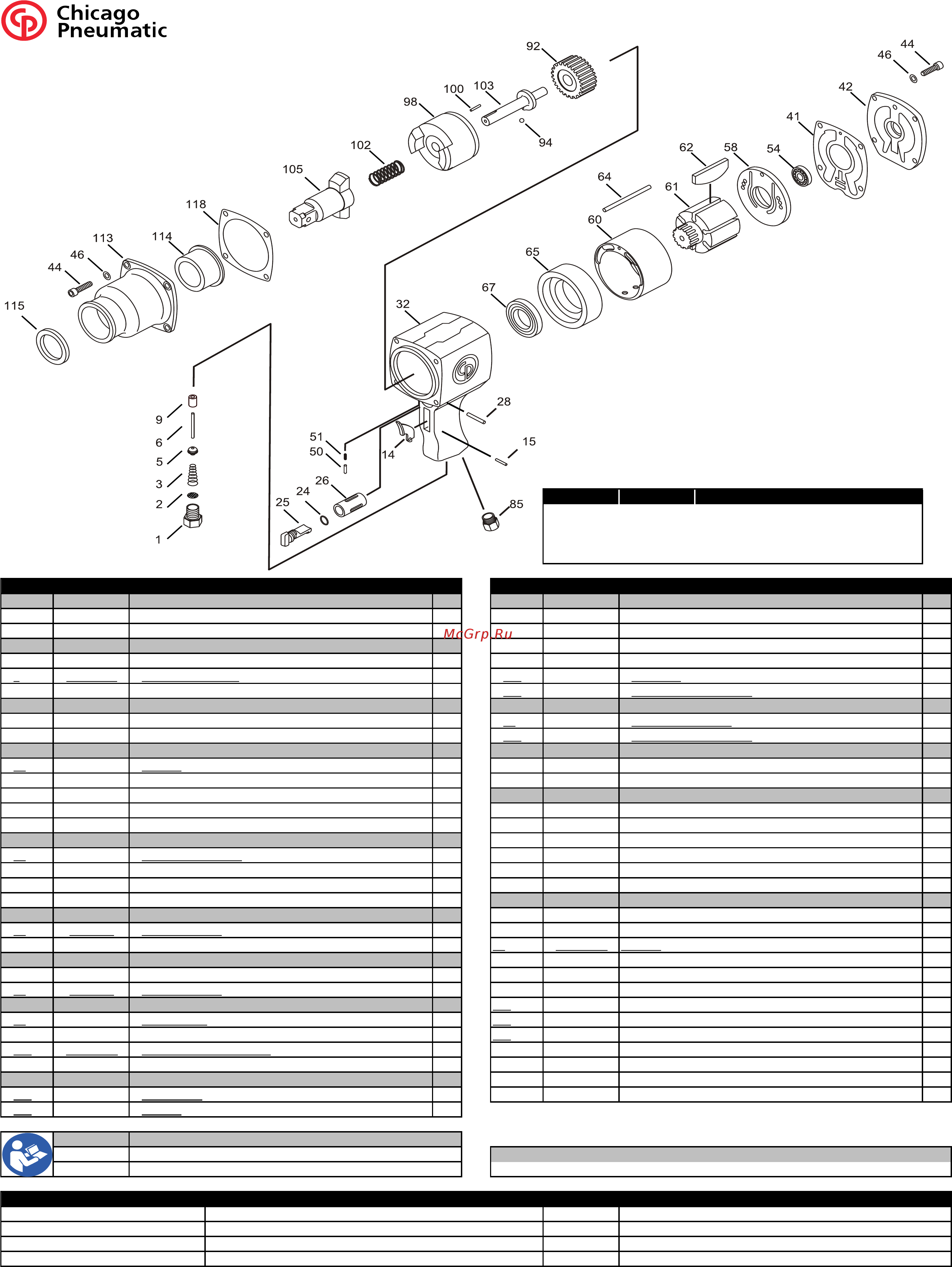

Item Part No Description Qty. Item Part No Description Qty.

A CA129654 AIR INLET ASSEMBLY J 2050560033 CLUTCH HOUSING ASSEMBLY

1 BUSHING ASSY 1 44 SCREW-SOC HD CAP 4

2 SCREEN 1 46 LOCKWASHER 4

B 2050559953 THROTTLE VALVE KIT 113 HOUSING-CLUTCH 1

SPRING-COMPRESSION

1 114 CA129643 BUSHING-CLUTCH 1

5 KF129106 VALVE-THROTTLE 1 115 SEAL-OIL 1

STEM-THROTTLE VALVE

1 118 GASKET-CLUTCH HSG 1

C 2050559963 TRIGGER KIT K 2050560043 GASKETS KIT

14 TRIGGER 1 41 GASKET-HOUSING 1

15 DOWEL PIN 1 118 GASKET-CLUTCH HSG 1

D 2050559973 REVERSE VALVE KIT L 2050560053 SCREWS KIT

24 O-RING 1 44 SCREW-SOC HD CAP 8

25 VALVE-REVERSE 1 46 LOCKWASHER 8

28 PIN-DOWEL 1 M 2050560063 SMALL PARTS KIT

50 PIN-STOP REV VALVE 1 15 DOWEL PIN 1

51 SPRING 1 28 PIN-DOWEL 1

E 2050559983 REAR COVER KIT 50 PIN-STOP REV VALVE 1

41 GASKET-HOUSING 1 51 SPRING 1

42 COVER-HOUSING 1 64 DOWEL PIN 1

44 SCREW-SOC HD CAP 4 100 PIN 1

46 LOCKWASHER 4 OTHER PARTS AND SETS

F 2050559993 REAR END PLATE ASSEMBLY 32 2050554373 HOUSING MOTOR - SUB ASSEMBLY (Incl. Item #9, 26) 1

54 C068659 BEARING-BALL 1 60 CA129649 LINER-AUTO 1

58 PLATE-UPPER END 1 61 CA129648 ROTOR 1

G 2050560003 FRONT END PLATE ASSEMBLY 62 CA145359 BLADE-ROTOR (SET OF 6) 1

65 PLATE-LOWER END 1 92 CA129647 COUPLING 1

67 C063836 BEARING-BALL 1 98 CA129645 DOG 1

H 2050560013 TIMING SHAFT KIT 105 C144729 3/4"(H) ANVIL CP6060-P15H 1

94 BALL-STEEL 1 105 CA144725 3/4"(R) ANVIL (Incl. Item #106, 107) CP6060-P15R 1

100 PIN 1 105 CA144726 1"(H) ANVIL CP6070-P15H 1

102 CA129644

SPRING-COMPRESSION

1 85 C130921 DIFFUSER-EXHAUST 1

103 SHAFT-TIMING 1 - C134690 RING-RETAINING 3/4" DIA 41MM CP6060-P15H 1

I 2050560023 SOCKET RETAINING KIT - 3/4" CP6060-P15R - C155472 RING-RETAINING 1" DIA 54MM CP6070-P15H 1

106 SNAP RING 5 - 2050557643 DECAL-SAFETY WARNING 1

107 O-RING 5

TOOL DOCUMENTS

2050554393 OPERATOR'S MANUAL 2050560073 TUNE UP KIT

6159948710 SAFETY INSTRUCTIONS 24, 41, 62, 106, 107, 115, 118

Recommended accessories

Hose whip Hose kit (incl. EasyFlow coupling) Nipple FRL kit (incl. EasyFlow coupling)

BSP (EURO 7.6mm) 6158112640 6153980575 6158105920 6153980375

NPT CA049271 6153980615 6158105780 6153980405

NPT (Asia 7.5mm) CA049271 6153980665 6158106850 6153980435

Spare parts without part number are not sold separately 2050554403 Rev 04

05/2018

Tightening torque
