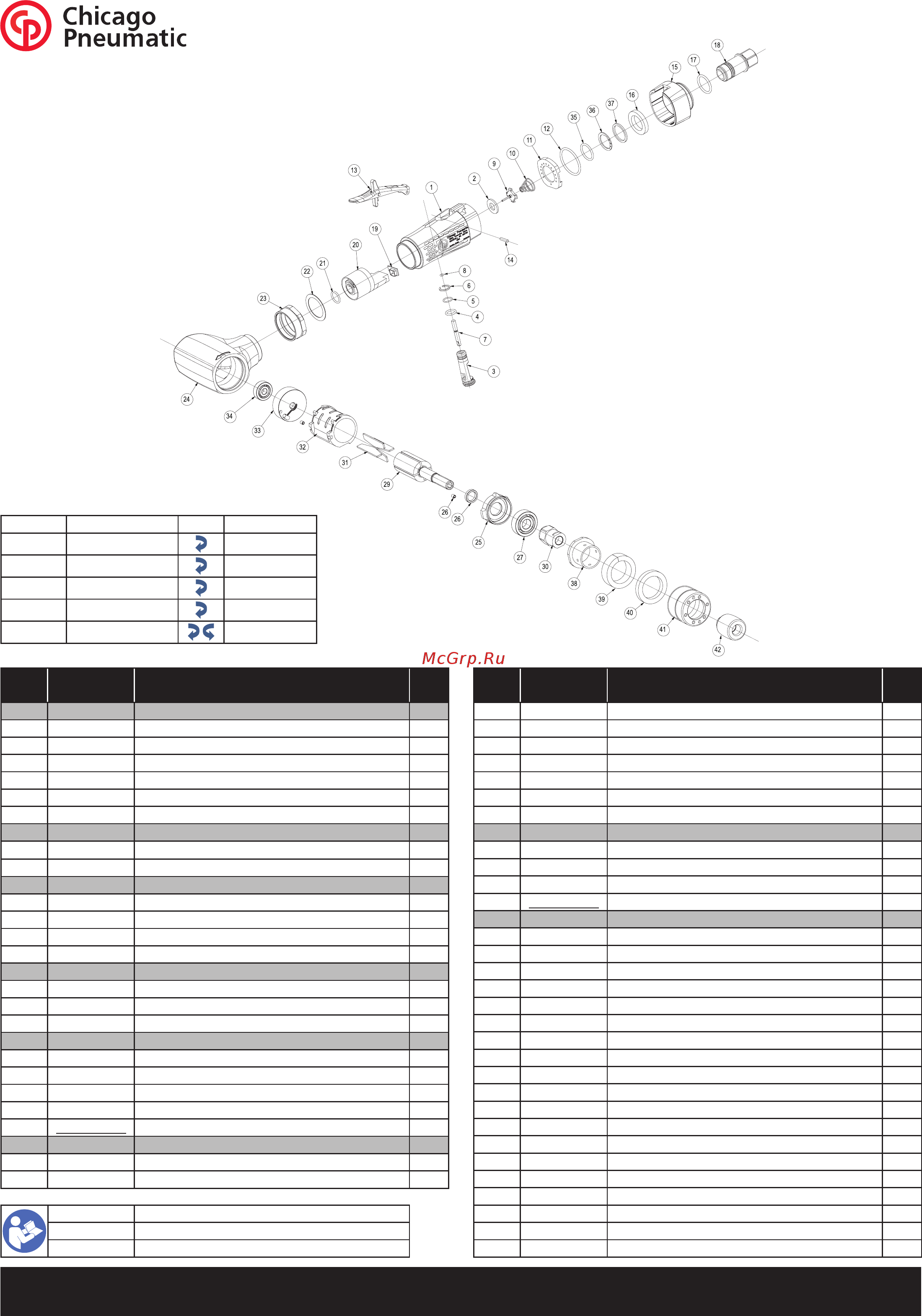

CP5080-4200H18

Belt sander

Index

No

Part

Ref

Description Qty

A 6154600400 REGULATOR ASSEMBLY

3 REGULATOR 1

4 O-RING 8.1x1.6 1

5 O-RING 8x1 1

6 SPRING RING WR9 1

7 VALVE STEM 1

8 O-RING 2x1 1

B 2050546343 VALVE KIT

9 TIP VALVE 1

10 SPRING 1

C 2050547893 FRONT PLATE ASSEMBLY

25 FRONT PLATE 1

26 PIN SPRING 3x4 1

27 6157580520 BEARING 10x26x8 1

28 WASHER 1

D 2050547873 REAR PLATE ASSEMBLY

26 PIN SPRING 3x4 1

33 REAR PLATE 1

34 6157581390 BEARING 6x19x6 1

E 2050547883 MOTOR ASSEMBLY

C 2050547893 FRONT PLATE ASSEMBLY 1

D 2050547873 REAR PLATE ASSEMBLY 1

32 6154001490 CYLINDER 1

29 6154261220 ROTOR 1

31

2050547793 BLADES (SET OF 4) 1

F 2050546413 SMALL PARTS KIT

6 SPRING RING WR9 1

8 O-RING 2x1 1

Index

No

Part

Ref

Description Qty

12 O-RING 27x2 1

14 NEEDLE 2.5x11.8 1

17 O-RING 17x2 1

21 O-RING 10.5x1.5 1

35 RING 1

36 SPACER 1

37 O-RING 15.6x1.78 1

G 2050547863 TUNE-UP KIT

2 SEAL 1

16 FELT 1

22 GASKETS (x2) 1

31

2050547793 BLADES (SET OF 4) 1

1 2050547773 HANDLE ASSY (incl. Part # 15) 1

11 6155740640 AIR CONTROL RING 1

13 2050541493 SAFETY LEVER 1

15 REAR CAP 1

18 2050542533 INLET ASSY 1

19 6153212410 INSERT 1

20 6156561900 RUBBER GASKET 1

23 6157301890 NUT 1

24 6155653220 MOTOR HOUSING 1

30 6156080520 ROTOR NUT 1

35 6154600420 BLOCK PLATE 1

36 2050547413 COVER 1

38 6154600420 BLOCK PLATE 400W 1

39 2050549973 FELT 1

40 2050549963 RING FELT 1

41 6156731430 COVER 7° 400W 1

42 6159901840 WHEEL FOR 400W BELT SANDER 1

2050500263 4mm HEX. WRENCH (not shown) 1

6158727980 WARNING STICKER 1

2050552903 EC declaration

6159948770 Safety instructions

2050552743 Operator's manual

Spare parts without part number are not sold separately

2050552783 rev. 2

Assembly instructions

Item # Tightening torque Dir. Glue

01 - 18 7,5 ft.lb - 10 Nm

Loctite™ 222

29-30 7,5 ft.lb - 10 Nm

Loctite™ 222

29 - 42 7,5 ft.lb - 10 Nm

24-41 11 ft.lb - 15 Nm Loctite™ 222

1 - 23 - 24 26 ft.lb - 35 Nm

Loctite™ 243
