04/2017

8940173410 Rev. : 02

Spare parts without part number are not sold separately - High wear parts underlined

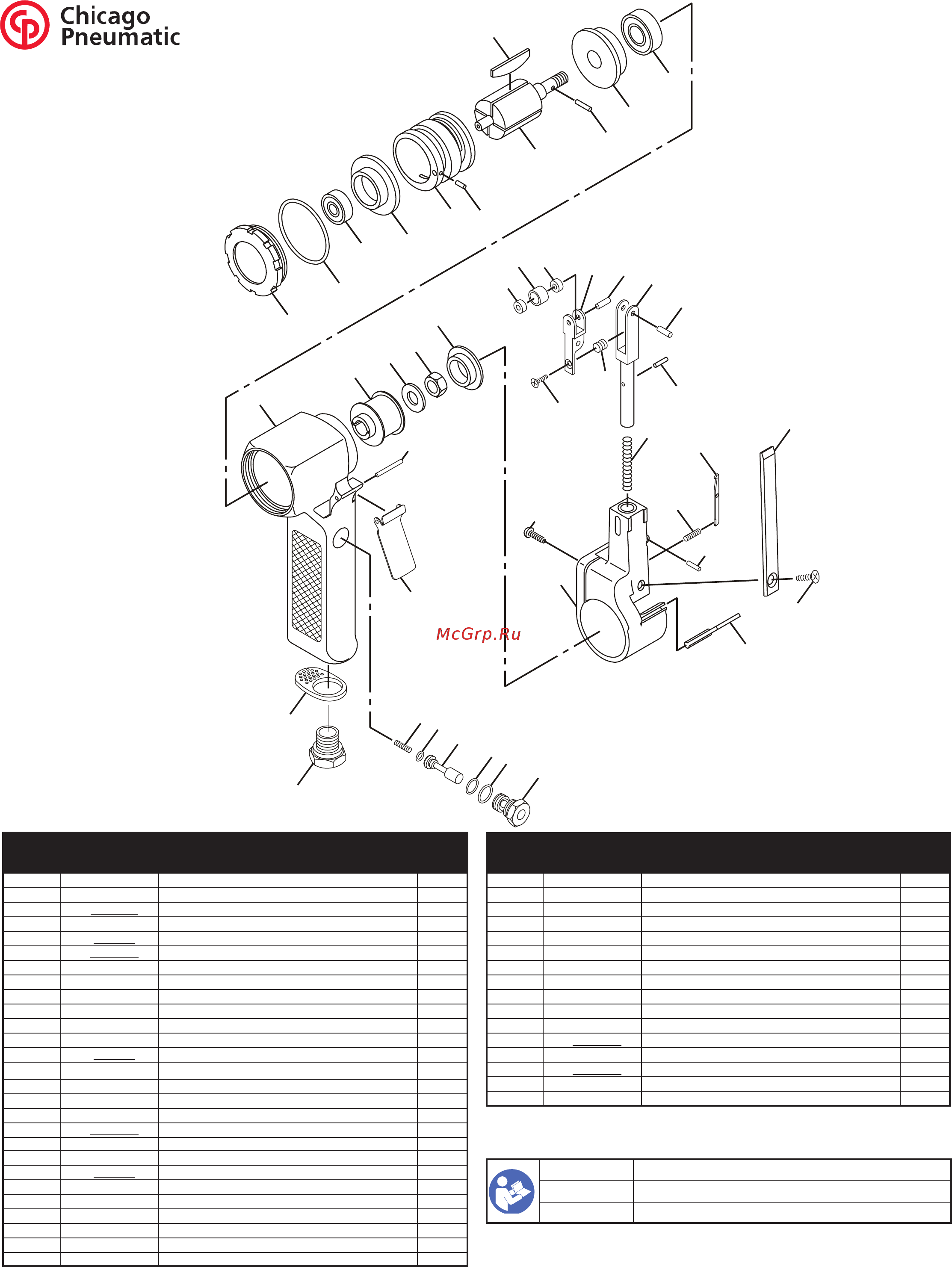

CP858

Air Sander

Model C

Index

No.

Parts No. Description Qty

1 CA155541 Motor Housing 1

2 CA155542 Spring 2

KF125427 O-Ring 1

4 CA155543 Valve Stem 1

P083071 O-Ring 2

CA155654 O-Ring 1

7 CA155544 Body-Valve 1

8 CA155545 Throttle Lever 1

9 KF124394 Lever Pin (3-24 mm) 1

10 CA155547 Deector 1

11 CA155548 Inlet Bushing 1

12 CA155549 Nut-Motor 1

C042234 O-Ring 1

14 S025101 Ball Bearing 1

15 CA155550 Plate-Rear 1

16 CA155551 Liner 1

17 CA155552 Rotor 1

CA155553 Rotor Blade 4

19 CA155650 Pin-Pulley 1

20 CA155554 Plate-Front 1

C120326 Ball Bearing 1

22 CA155555 Pulley-Drive 1

23 CA155652 Washer 1

24 CA155651 Nut-Lock 1

25 CA155556 Cap-Pulley 1

26 CA155557 Cover-Wheel with Bushing 1

27 CA155558 Deector 1

CA155539 Operator’s Manual

4687093 Warning Label

6159948770 Safety Instuctions

Index

No.

Parts No. Description Qty

28 CA155559 Lever-Stop 1

30 CA155657 Pin-Roll (2.5-10 mm) 1

31 C078984 Adjust Screw 1

32 CA155560 Shoe 1

33 CA155655 Screw-Flat (m4 x 12) 2

34 CA155561 Spring-Tension 1

35 CA155562 Arm-Tension 1

36 CA155563 Pin-Stop 1

37 CA155656 Pin-Roll (3-11 mm) 1

38 CA155564 Arm-Adjust 1

39 CA155565 Spring-Adjust 1

CA155566 Pulley-Idler 1

42 CA155649 Ball Bearing 2

CA155567 Pulley Pin 1

46 CA155568 Pin-Roll (2-6 mm) 1

CA145203 Wrench-Hex (Not Shown) 1
