Chicago Pneumatic CP3511 [3/32] Cp35 series

CP35 Series

5” Random Orbital Sander

Noise & Vibration Declaration

Sound pressure level 81 dB(A), uncertainty 3 dB(A), in

accordance with EN ISO 15744. For sound power, add 11

dB(A).

Vibration value;

a= 3m/s

, uncertainty k= 1.3m/s

re. ISO 28927-3.

Declaration of noise and vibration emission

All values are current as of the date of this publication. For the

latest information please visit cp.com.

These declared values were obtained by laboratory type testing

in accordance with the stated standards and are suitable for

comparison with the declared values of other tools tested in

accordance with the same standards. These declared values are

not adequate for use in risk assessments and values measured in

individual work places may be higher. The actual exposure values

and risk of harm experienced by an individual user are unique

and depend upon the way the user works, the workpiece and

the workstation design, as well upon the exposure time and the

physical condition of the user.

We, Chicago Pneumatic, cannot be held liable for the

consequences of using the declared values, instead of values

reecting the actual exposure, in an individual risk assessment in a

work place situation over which we have no control.

This tool may cause hand-arm vibration syndrome if its use is

not adequately managed. An EU guide to managing hand-arm

vibration can be found at http://www.humanvibration.com/EU/

VIBGUIDE.htm

We recommend a programme of health surveillance to detect early

symptoms which may relate to noise or vibration exposure, so that

management procedures can be modied to help prevent future

impairment.

INSTRUCTION MANUAL

Machine Type

Power tool equipped with a exible disc tted with abrasive

paper for sanding - No other use is permitted

Air Supply Requirements

1. Supply tool with 90 psig (6.3 bar) of clean, dry air. Higher

pressure drastically reduces tool life.

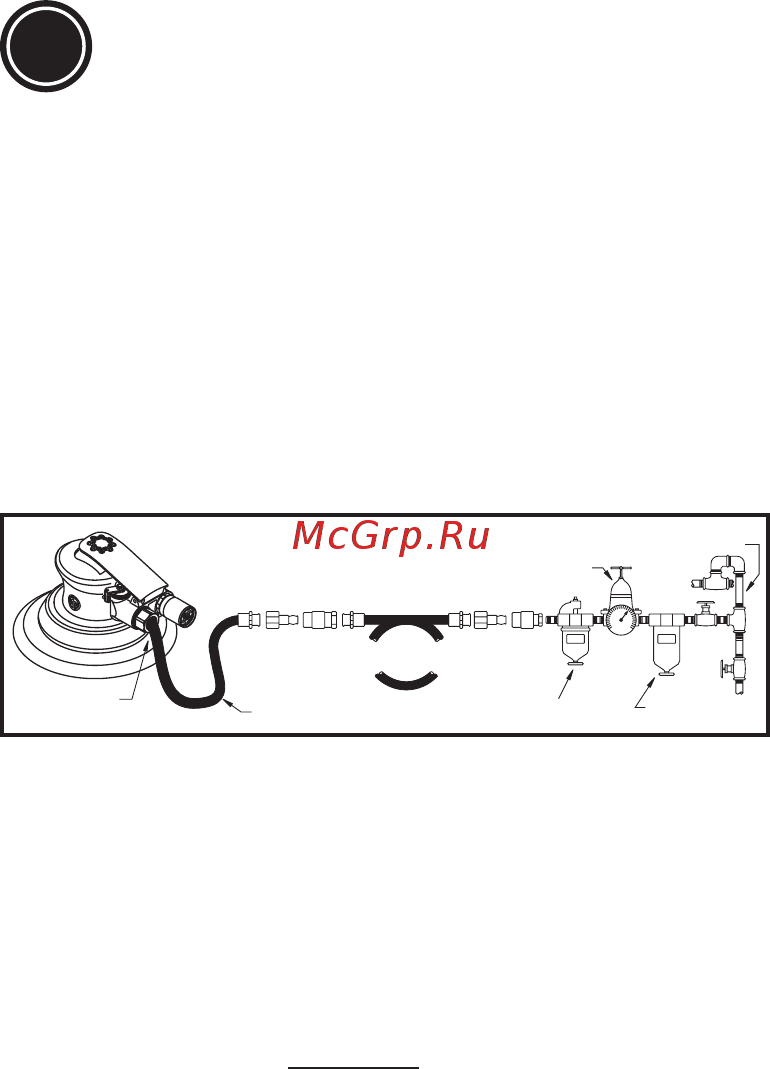

2. Connect tool to air line using pipe, hose and tting sizes

shown in the diagram below.

3. Do not install a quick coupler directly into the sander

throttle handle.

Lubrication

Use an air line lubricator with SAE #10 oil, adjusted to two

drops per minute. If an air line lubricator cannot be used,

add air motor oil to the inlet once a day.

Maintenance

1. Disassemble and inspect air motor and orbital assembly

every three months if the tool is used every day. Replace

damaged or worn parts.

2. High wear parts are underlined in the parts list.

3. To keep downtime to a minimum, the following service kits

are recommended:

Tune-Up Kit

8940163459

ECO Change Motor

8940168373

Throttle Kit

8940168367

Valve Seat Kit

8940168368

Technical Data

Pad Diameter 5in. (125mm)

Free speed 12,000 RPM

Air pressure 90 psi (6.3 bar)

Spindle size 5/16”-24

English

1/2" (12mm)

LUBRICATOR

REGULATOR

1/4"NPT

FILTER

1/2" (12mm)

3/8" (10mm)

130

Original Instructions

or part thereof is prohibited. This applies in particular to trademarks,

model denominations, part numbers and drawings. Use only

authorized parts. Any damage or malfunction caused by the use of

unauthorized parts is not covered by Warranty or Product Liability.

MANUFACTURER’S LIMITED WARRANTY

Limited Warranty: The “Products” of the Chicago Pneumatic Tool

Co. LLC (“CP”) are warranted to be free from defects in material and

workmanship for one year from the date of purchase. This Warranty

applies only to Products purchased new from CP or its authorized dealers.

Of course, this Warranty does not apply to products which have been

abused, misused, modied, or repaired by someone other than CP or its

Authorized Service Representatives. If a CP Product proves defective in

material or workmanship within one year after purchase, return it to any

CP Factory Service Center or Authorized Service Center for CP tools,

transportation prepaid, enclosing your name and address, adequate

proof of date of purchase, and a short description of the defect. CP will,

at its option, repair or replace defective Products free of charge. Repairs

or replacements are warranted as described above for the remainder of

the original warranty period. CP’s sole liability and your exclusive remedy

under this Warranty is limited to repair or replacement of the defective

Product. (There Are No Other Warranties Expressed Or Implied And

CP Shall Not Be Liable For Incidental, Consequential, Or Special

Damages, Or Any Other Damages, Costs Or Expenses Excepting

Only The Cost Or Expense Of Repair Or Replacement As Described

Above.)
