Sharp PN-E703 [6/44] Mounting precautions

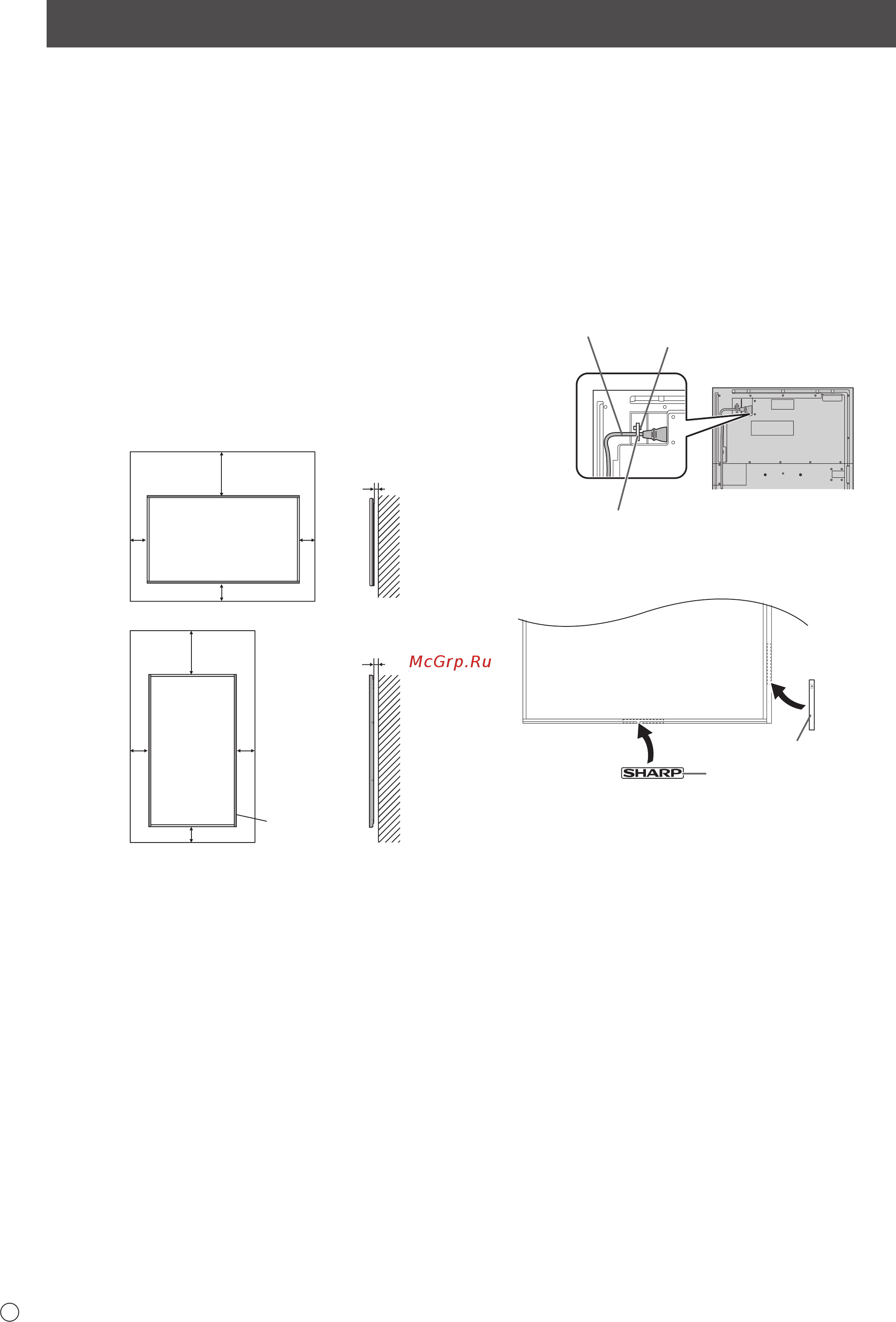

![Sharp PN-E603 [6/44] Mounting precautions](/views2/1388709/page6/bg6.png)
4
E
MOUNTING PRECAUTIONS
• This product is for use indoors.
• A mounting bracket compliant with VESA specications is
required.
• Since the monitor is heavy, consult your dealer before
installing, removing or moving the monitor.
• Mounting the monitor on the wall requires special expertise
and the work must be performed by an authorized SHARP
dealer. You should never attempt to perform any of this
work yourself. Our company will bear no responsibility
for accidents or injuries caused by improper mounting or
mishandling.
• Use the monitor with the surface perpendicular to a level
surface. If necessary, the monitor may be tilted up to 20
degrees upward or downward.
• This monitor should be used at an ambient temperature
between 32°F (0°C) and 104°F (40°C). Provide
enough space around the monitor to prevent heat from
accumulating inside.
For the monitor in landscape orientation
For the monitor in portrait orientation
7-7/8 [200]
2 [50]
2
[50]
2
[50]
Unit: inch [mm]
Unit: inch [mm]
5/16 [7]
2 [50]
7-7/8 [200]
2
[50]
2
[50]
5/16 [7]
Power LED
• If it is difcult to provide sufcient space for any reason
such as the installation of the monitor inside a housing, or
if the ambient temperature may be outside of the range
of 32°F (0°C) to 104°F (40°C), install a fan or take other
measures to keep the ambient temperature within the
required range.
• Temperature condition may change when using the monitor
together with the optional equipments recommended by
SHARP. In such cases, please check the temperature
condition specied by the optional equipments.
• Do not block any ventilation openings. If the temperature
inside the monitor rises, this could lead to a malfunction.
• Do not place the monitor on a device which generates heat.
• Adhere to the following when installing the monitor in its
portrait orientation. Failing to adhere to the following may
cause malfunctions.
- Install the monitor such that the power LED is located on
the bottom side.
- Set the MONITOR on the MONITOR menu to PORTRAIT.
(See OPERATION MANUAL.)
- Be sure to clamp the power cord (supplied) onto the cable
clamp attachment using the supplied cable clamp.
When clamping the power cord, take care not to stress
the terminal of the power cord. Do not bend the power
cord excessively.
Cable clamp
Power cord (Supplied)
Cable clamp
attachment
• Use the supplied vertical sticker when you install the
monitor in portrait orientation.
Cover SHARP logo
Logo
Do not remove the factory-afxed sticker but afx the
sticker over it.
