Functions of Buttons
9
VZ709E
English
Owner’s manual
[ ] (Voice/SEND/END) button
*3
• When a call comes in, press this button to
answer the call.
• During a call, press this button to end the call.
• When a navigation system is connected, press
this button to display the Voice Command
screen of the navigation system.
[TA] button
• Press this button to turn on/off the TA (Traffic
Announcement) standby mode.
• Keep pressing this button more than 1 second
to turn on/off the Auto Antenna function (see
page 63).
[OPEN] button
• Use this button to open/close the liquid crystal
panel.
• Keep pressing this button more than 2 seconds
so that the liquid crystal panel is positioned
horizontally when the liquid crystal panel is
open (Air Conditioner Operation mode).
• When the liquid crystal panel is closed, keep
pressing this button more than 5 seconds to
perform the panel calibration function to
memorize the maximum angle of the liquid
crystal panel.

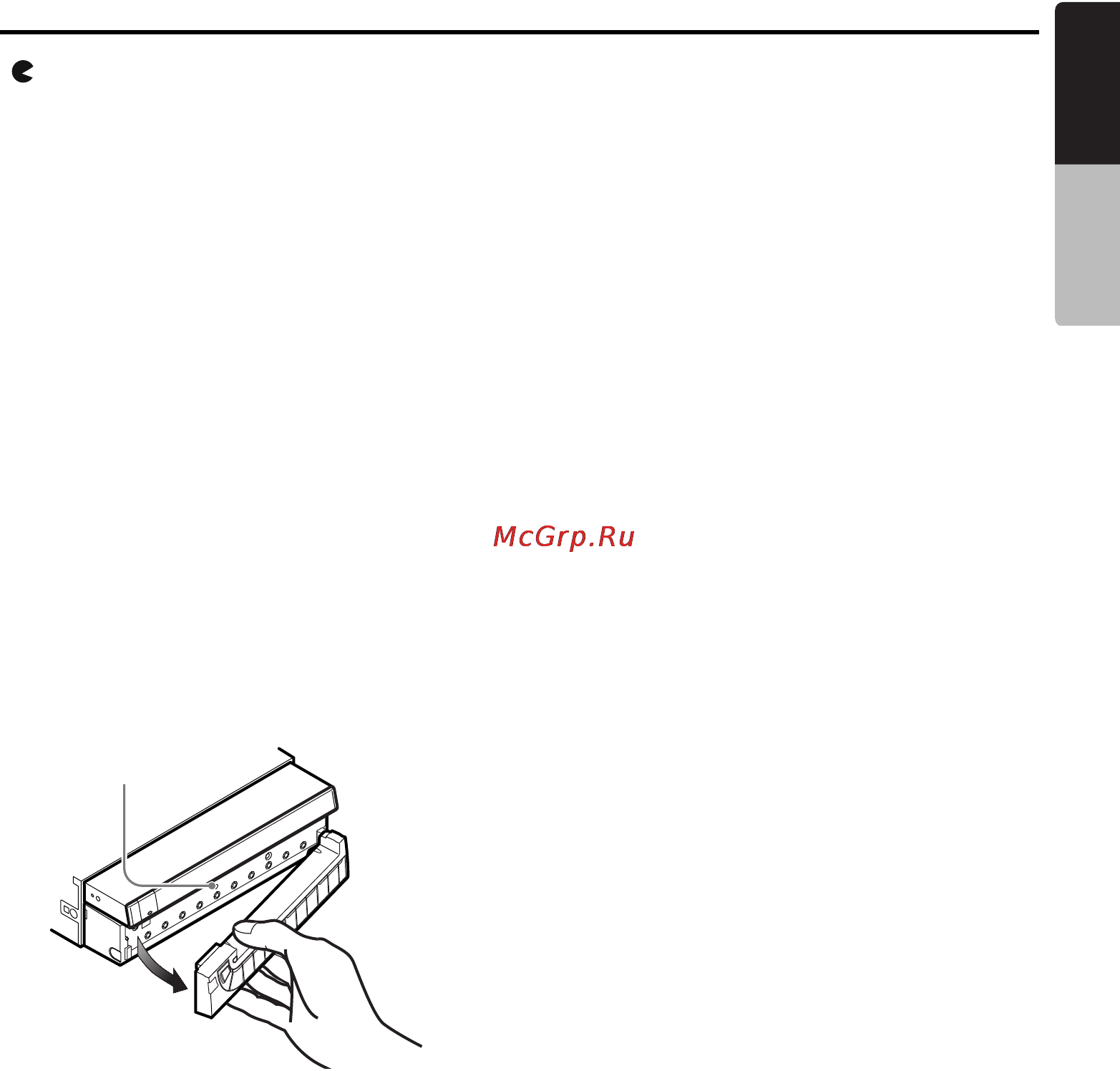

Blink LED
• When the Blink LED function is set to “ON” from
the System tab menu on the General Settings
screen, blinks when the DCP (Detachable
Control Panel) is removed.
Note:
*1 This button does not work when the liquid crystal
panel is closed.
*2 This button is available only when a navigation
system is connected.
*3 This button is available only when a navigation
system is connected or the connection with a
Bluetooth telephone is established. However, the
Voice Command operation is not possible with
the navigation system NP509E.
