iPod Operations
47
VZ709E
English
Owner’s manual
Controlling the iPod

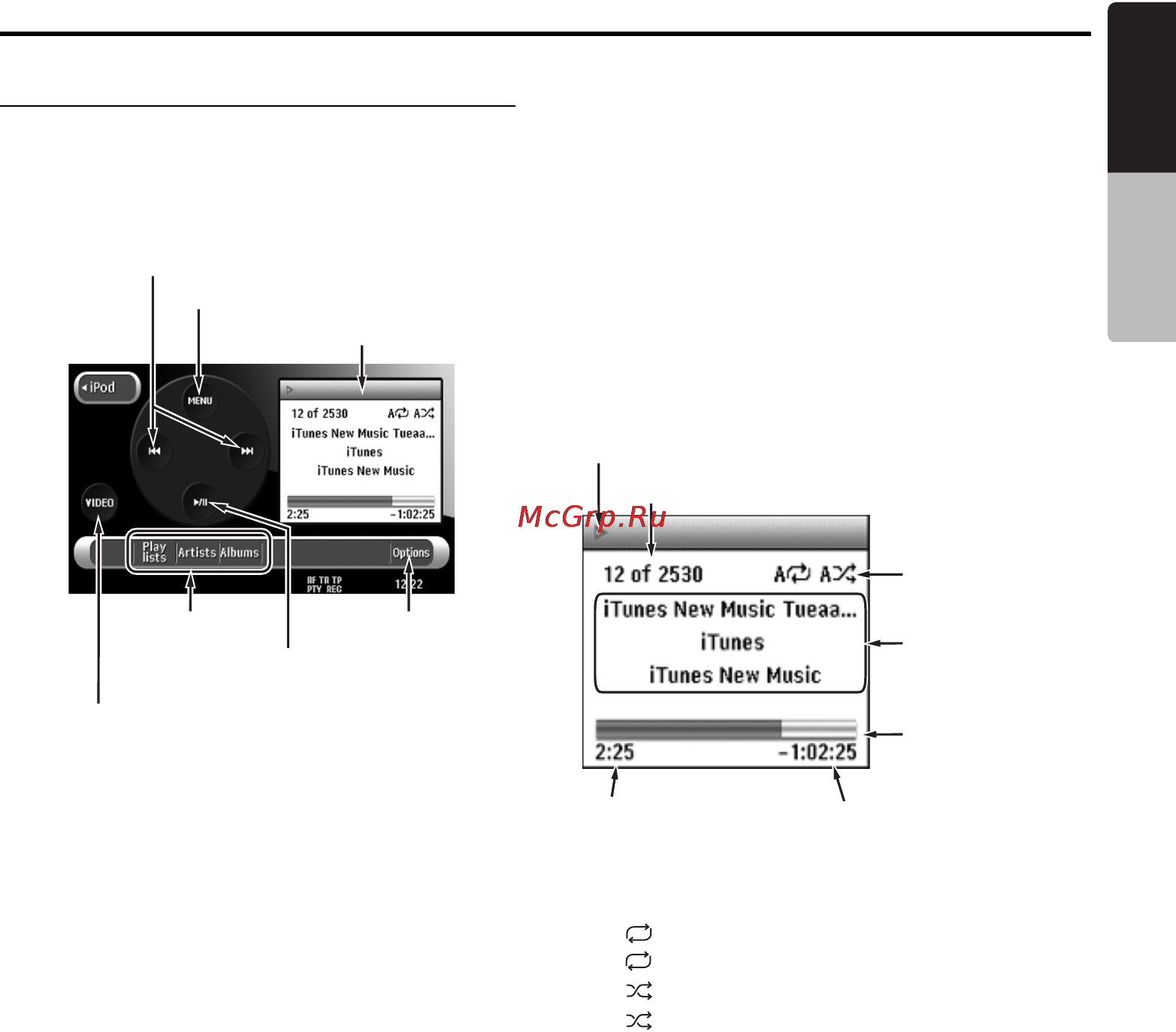

Operation keys
● iPod mode screen
[VIDEO] / [MUSIC] key:
Switches the operation mode to the Video mode
or Music mode.
• Displayed only when an iPod with video
features is connected.
[MENU] key:
Displays the iPod Menu screen to search tacks to
be played. Various list screens can be displayed
from the iPod Menu screen.
[p] key:
Use to control playback and pause.
[R], [F] keys:
Use to perform track selection. Touch and hold to
enable fast-forward or fast-backward.
List keys:
Displays the corresponding list screen.
[Playlists], [Artists], and [Albums] are available
in the Music mode.
[Hide] key:
Hides the iPod mode screen to display the
playback picture.
• Displayed only in the Video mode.
[Options] key:
Displays the Options screen. You can specify
repeat and shuffle play modes from this screen.
● Operation display
Note:
*1 Displays status of Repeat, Shuffle play.
: 1-track Repeat
: All Repeat
: Song Shuffle
: Album Shuffle
*2 Touch the operation display to scroll the Song
title.
Pausing playback
1. Touch the [p] key during playback.
Playback pauses.
2. To resume playback, touch the [p] key
again.
Playback resumes.
[VIDEO]/[MUSIC] key
[MENU] key
Operation display
List keys
[p] key
[R], [F] keys
[Options] key
Play (t)/Pause (G) status display
Track No.
Play mode *
1
Song title/
Artist name/
Album title *
2
Progress
indicator
Play time
Remaining time
S
A
S
A
