MEASUREMENT FOUNDATION

WINCH Z 2500

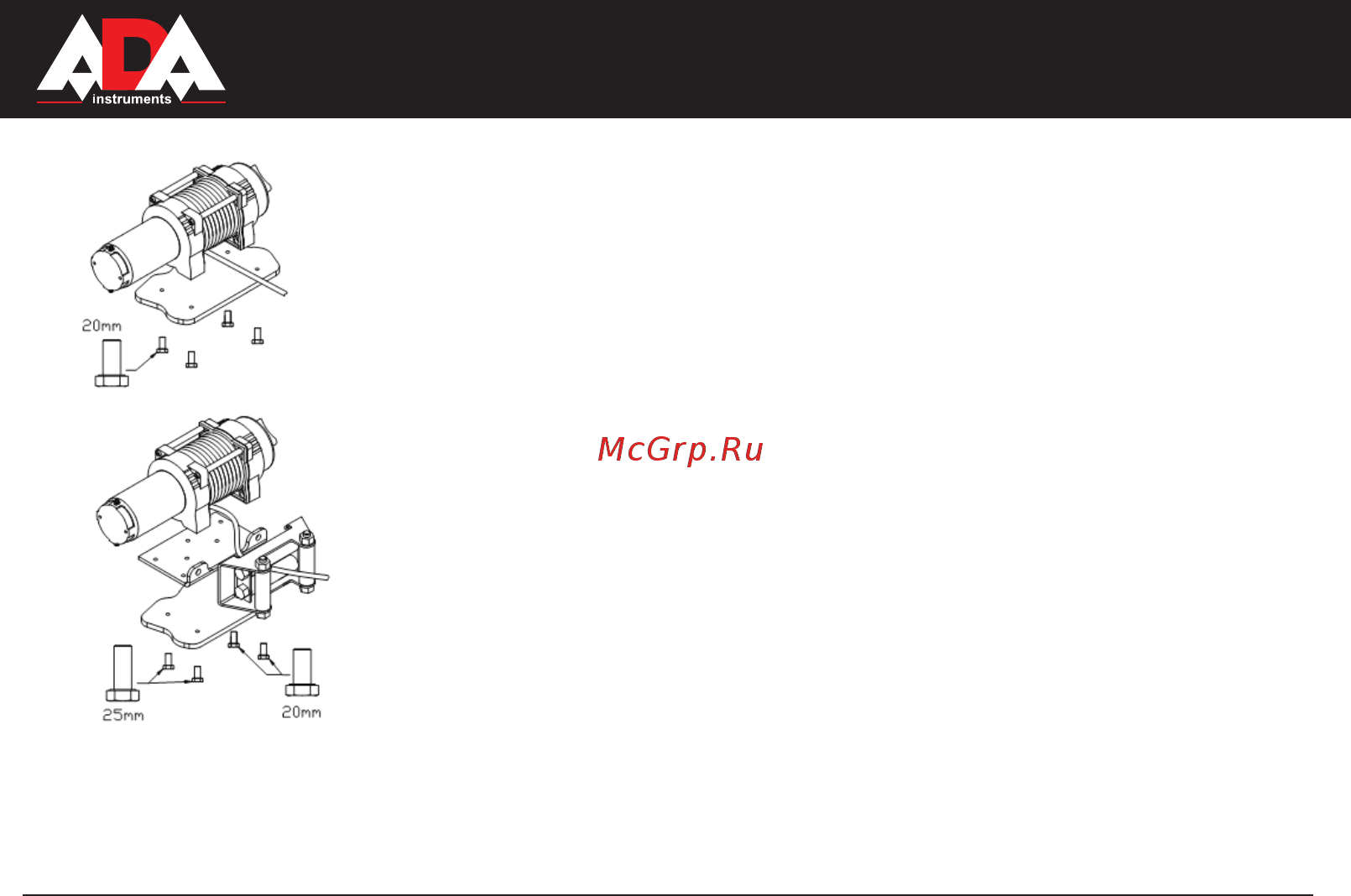

Fig.2: Orientation of winch

to mounting plate and bolt

lengths.

Step 2 - Mount the Contactor

• The contactor is a primary safety feature in your winch system. It disconnects

your winch from its power source when the ATV is not in use. The contactor

must be correctly installed to work properly.

• It is recommended that the contactor be mounted close to the battery and in a

location that is as clean and dry as possible. Exact location will vary, depending

on the ATV. Usual locations include inside, on top, or on the side of rear storage

box, and on a few models, under the seat.

• Ensure the contactor mounting location selected provides sufcient clearance

from all metal structures such as frame tubes. Do NOT place tools or other

items in a position that might come in contact with the contactor directly.

• Drill the mounting holes for the contactor at this time, then move on to step

four as it will be easier to attach all the wiring to the contactor before attaching

it to the ATV. Do NOT mount the contactor at this time.

• If you will be installing the wireless control, rst review the wiring congura-

tion provided here.

NOTE: Install the control box

• Connect the long red cable to the “+” terminal of the battery .

• Connect the long black cable to the “-” terminal of the battery .

• Connect the short red cable to the “+” terminal of the motor.

• Connect the short black cable to the “-” terminal of the motor .

• After connecting , install the control box on winch
