WINCH Z 2500

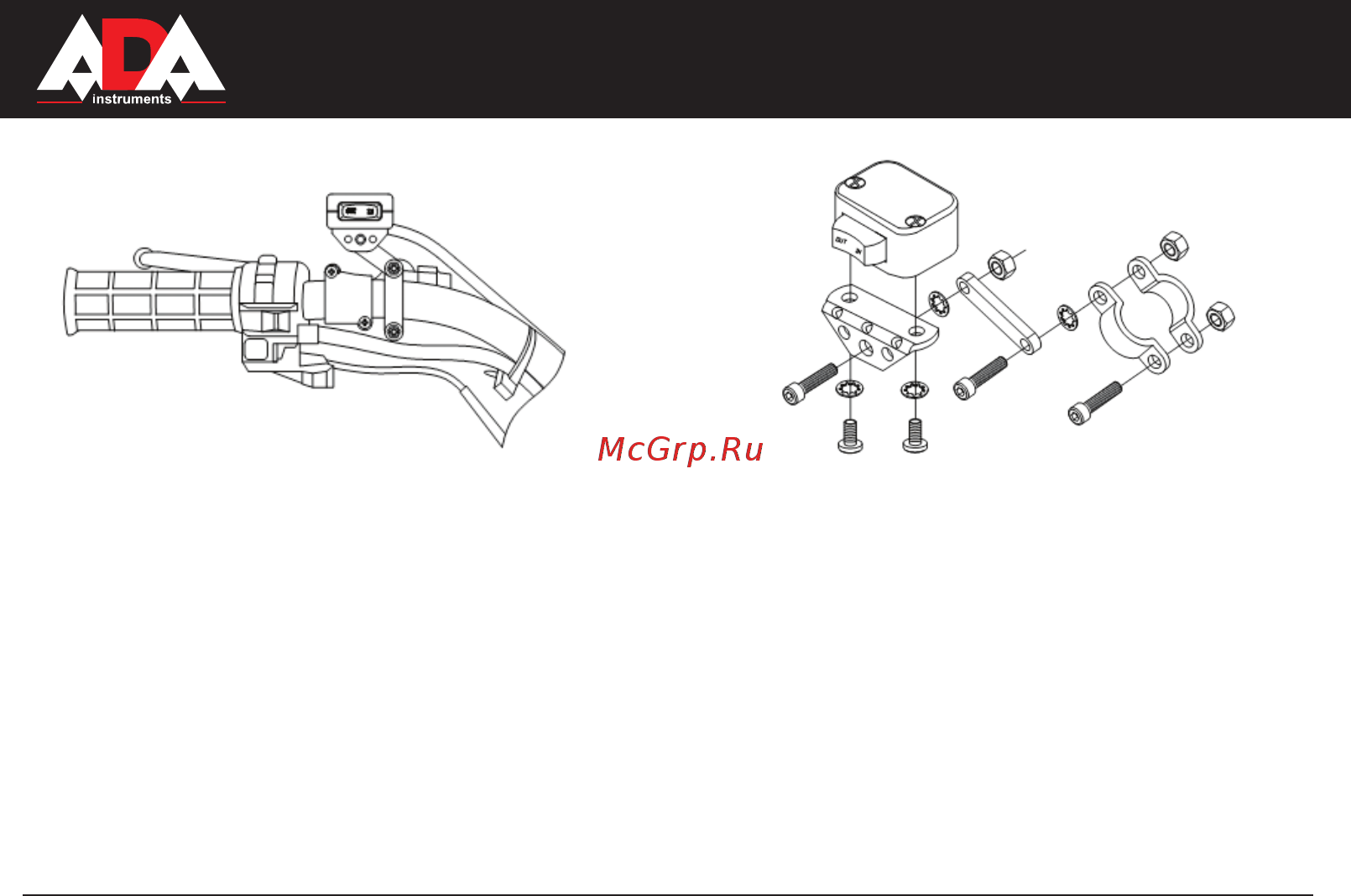

Fig.4: handlebar mount. Exact positioning may

vary depending on ATV make and model.

Fig.5: Mini-rocker switch assembly

• It is recommended that the switch be installed on the left handlebar. A piece of electrical tape around the handle-

bar will help prevent rotation of mount on the handle bar (g.4).

• Do NOT tighten over any hoses or cables.

• Once the handle bar switch is mounted, route the two bullet terminal wires back to where the contactor will be

mounted. Splice the end of the red wire to a key controlled accessory circuit of the ATV (use the provided wire

splice). Using a test light, locate a suitable wire from the ATV key switch. The wire should only have power when

the key is in the “ON” position.
