Position of the Operator (see figure K)
f Do not stand in a line with the saw blade in
front of the machine. Always stand aside of
the saw blade. This protects your body
against possible kickback.
– Keep hands, fingers and arms away from the
rotating saw blade.
– Do not cross your arms when operating the
tool arm.
Permissible Workpiece Dimensions
Maximal workpiece sizes:
Minimal workpiece sizes
(= all workpieces that can be clamped left or
right from the saw blade with the supplied
screw clamp 14):
100 x 40 mm (length x width)
Cutting Off
– Firmly clamp the workpiece as appropriate
for its dimensions.
– Adjust the requested horizontal and/or verti-
cal mitre/bevel angle.
– Switch on the machine.
– Press lever 3 and slowly guide the tool arm
downward by handle 1.
– Saw through the workpiece applying uniform
feed.
– Switch off the machine and wait until the
saw blade has come to a complete stop.
– Guide the tool arm slowly upward.
Replacing the Insert Plate
The red insert plate 7 can become worn after
long use of the power tool.
Replace defective insert plates.
– Bring the power tool into the working posi-
tion.
– Unscrew screws 8 using a Phillips screwdriv-
er and remove the old insert plate.
– Insert the new insert plate and and screw all
screws 8 in again.

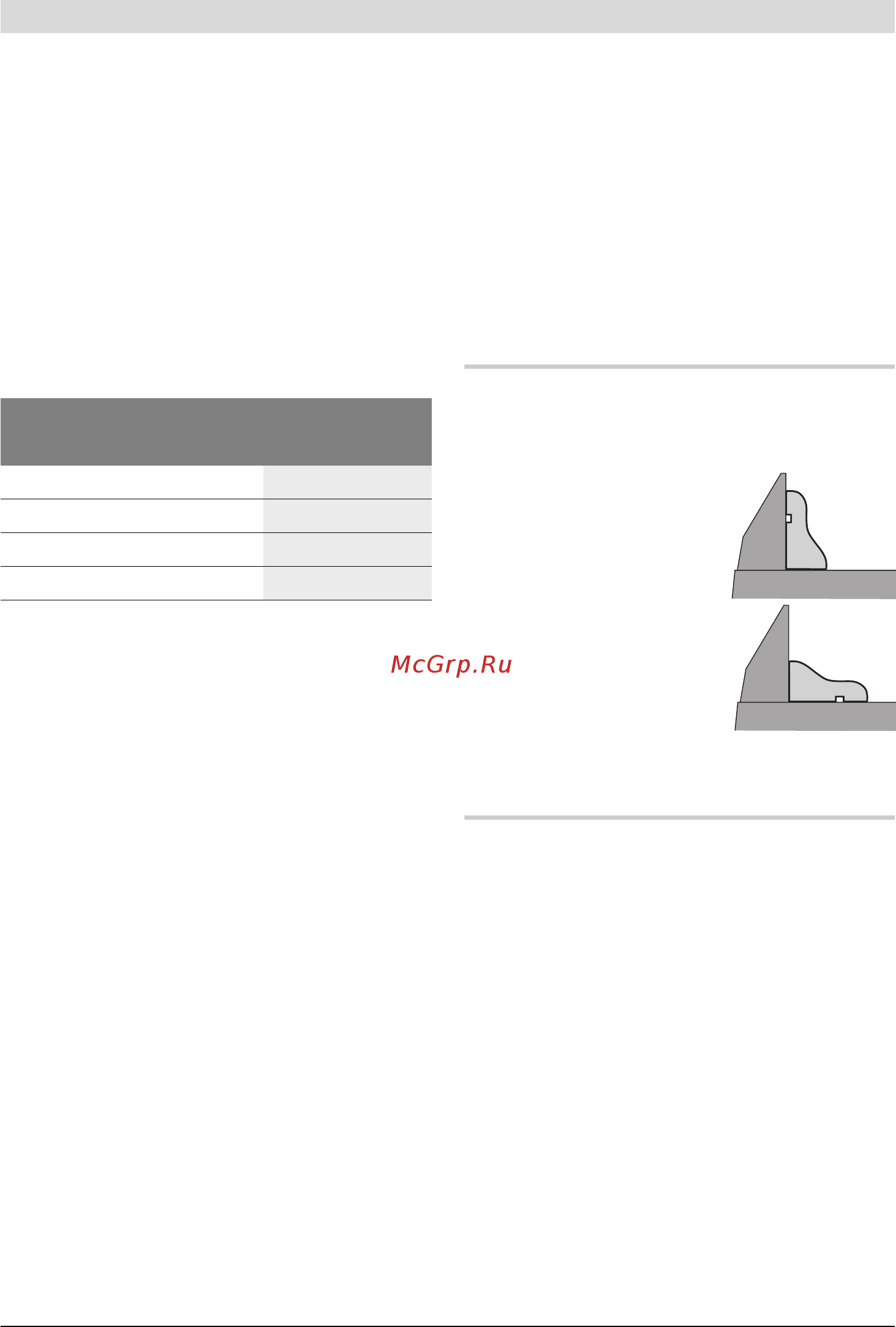

Sawing Profile Strips
Profile strips/mouldings can be sawn in two dif-
ferent ways:
Always make trial cuts with the mitre angle set-
ting first on scrap wood.
Transport
Before transporting the power tool, the follow-
ing steps must be carried out:
– Bring the machine into the transport posi-
tion.
– Remove all accessories that cannot be
mounted firmly to the power tool.
– For lifting or transporting, hold the power
tool by the recessed grips 13 on the side of
the saw table 11.
f When transporting the power tool, use only
the transport devices and never use the
protective devices.
Mitre/Bevel Angle Height x Width
Horizontal Vertical
0° 0°
50 x 110 mm
45° 0°
37 x 110 mm
0° 45°
50 x 76 mm
45° 45°
37 x 76 mm
– Placed against the fence
– Lying flat on the saw ta-
ble
OBJ_BUCH-880-002.book Page 31 Tuesday, November 10, 2009 3:17 PM
