MEASUREMENT FOUNDATION

Reverse

GroundDrill-14

INSTRUMENTS

4. Specications

Engine type 4 stroke, air-cooled

Engine volume 172 cm³

Air-fuel mixture unleaded gasoline with a minimum of 92 octane

Ignition TCI

Power 8 HP

Carburetor Diaphragm type

Fuel tank capacity 3,6 L

Oil capacity in the engine 1,1 L

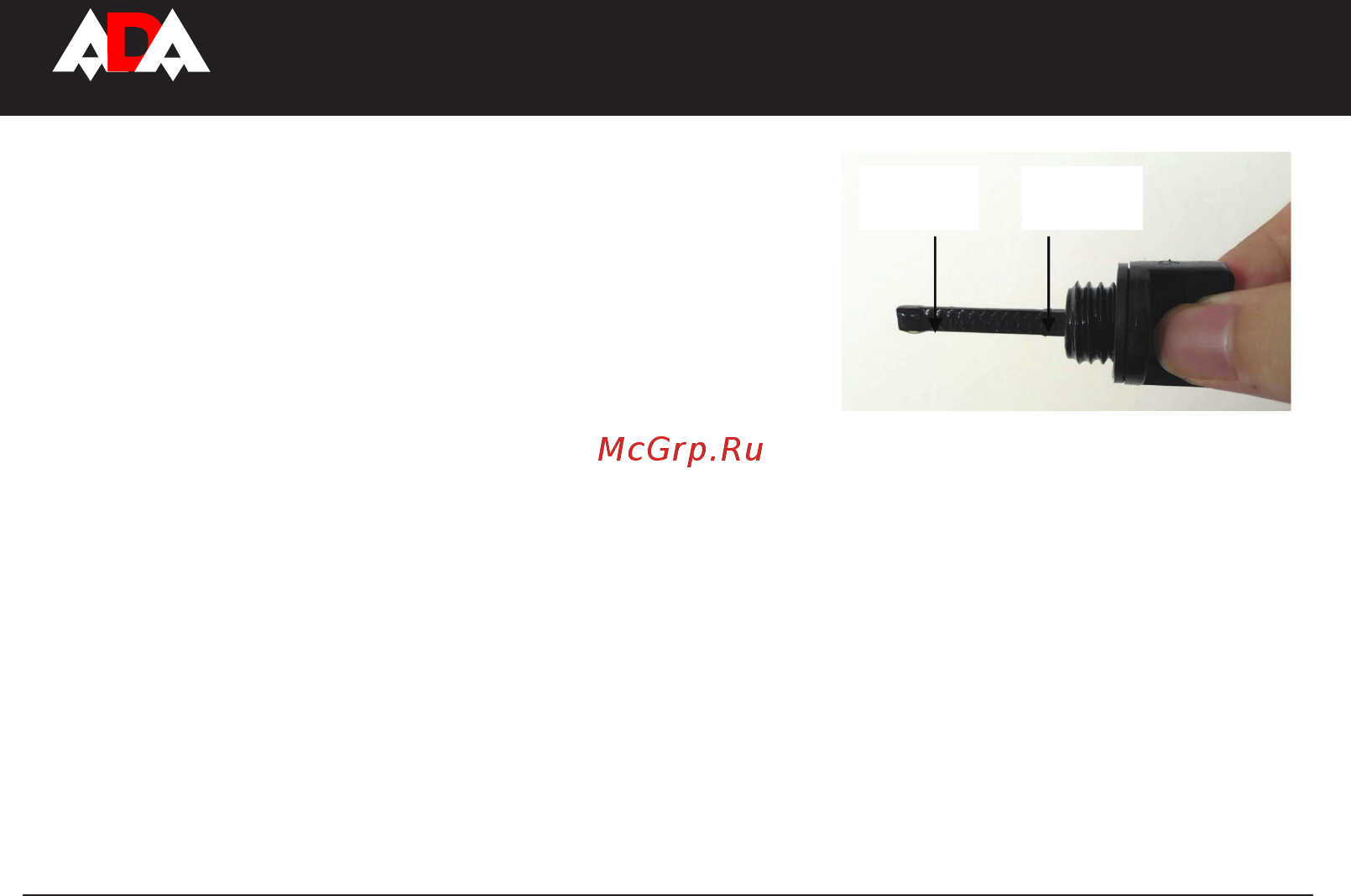

Lower

limit

Upper

limit

5. Preparation before operation

Handles must be placed on the frame in the following way: handle with gas handle must be located on the right side of the starter handle.

Place the screws into the holes of handles and frame. Fix them with nuts. Tighten the screws with the instrument from the complete set.

CONNECTION OF THE THROTTLE CABLE

Connect the throttle cable to the throttle level.

CONNECTION OF THE AUGER TO THE REDUCTION GEAR

Special construction of the reduction gear shaft allows to set augers with different diameters: 32 mm and 20 mm. Combine drive shaft

and shank end. Insert the shaft into the shank end. Fix the connection with the help of screw.

AUGER CHECKUP

1. Check availability of all parts. This goes especially for the spark plug.

2. Check the air intake and outlet for clogging.

3. The auger uses an air-cooled engine. If the air passage is blocked, the engine may overheat.

4. Check the air lter for dirt. A dirty air cleaner will cause the auger to burn excess fuel.
