ROTARY 500 HV Servo

MEASUREMENT FOUNDATION

ROTARY 500 HV Servo

6. Change the rotation direction by pressing the Clockwise Rotation or Counterclockwise Rotation key.

7. Press the Auto-Drift key to automatically stop the laser beams while the unit is self-leveling. The laser

beams will automatically restart when the unit is leveled.

8. You can use the remote control to control the instrument (see Using the Remote Control). This option is

very useful for trench work or when laying concrete.

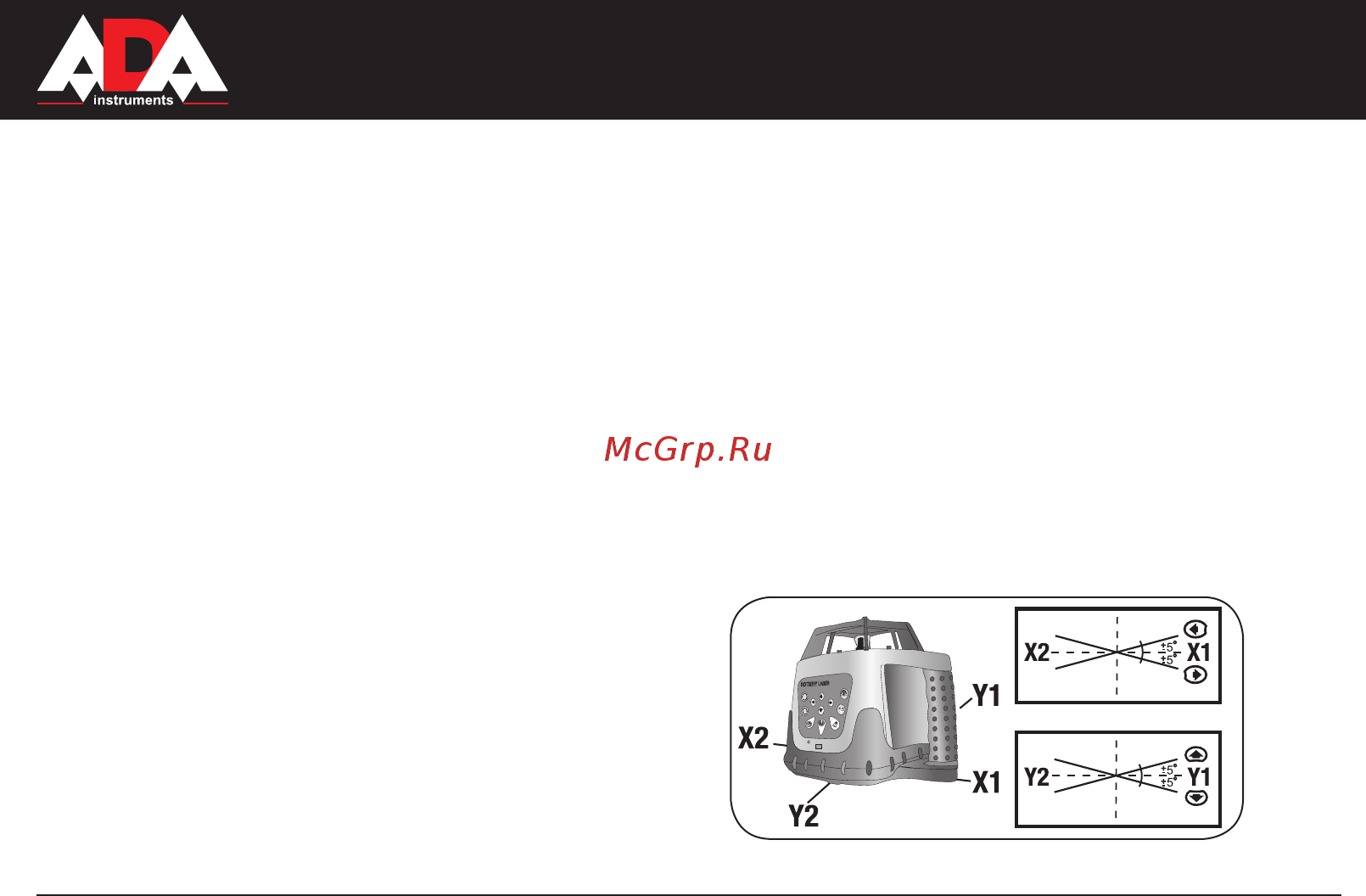

Inclined Plane (Manual Mode)

The instrument can be set up to create a single or dual directional incline plane at any angle. This is very helpful

for laying inclined concrete surfaces, ensuring run-off from pathways, and laying water and sewage lines. The

instrument can be used with an angle bracket (not included), and set to any angle greater than ±5°.

1. Set up the instrument approximately level.

2. Press the Power key. The power indicator will light up.

3. Press the Auto/Manual Key. When the Manual Indi-

cator lights, the instrument is in manual mode.

4. Chose the X & Y direction by pressing the Clockwise

Rotation or Counterclockwise Rotation Key.

5. Using the X-Axis and Y-Axis arrows, adjust the slope

until it suits your requirements.

6. To make the beam more visible, change the rotating

speed (see Changing Rotating Speed), change scan-

ning mode (see Scan Function), or use the Laser De-

tector to detect the laser beam (see Laser Detector).
