8017 Trotec Speedy 300 fiber
BEFORE OPERATION
28/07/2015 Trotec Produktions- und Vertriebs GmbH_Linzer Strasse 156, A-4600 Wels, Austria, Technical Support 22 / 54
tel_+43 (0)7242 239-7000, fax_+43 (0)7242 239-7380, mailto: techsupport@troteclaser.com

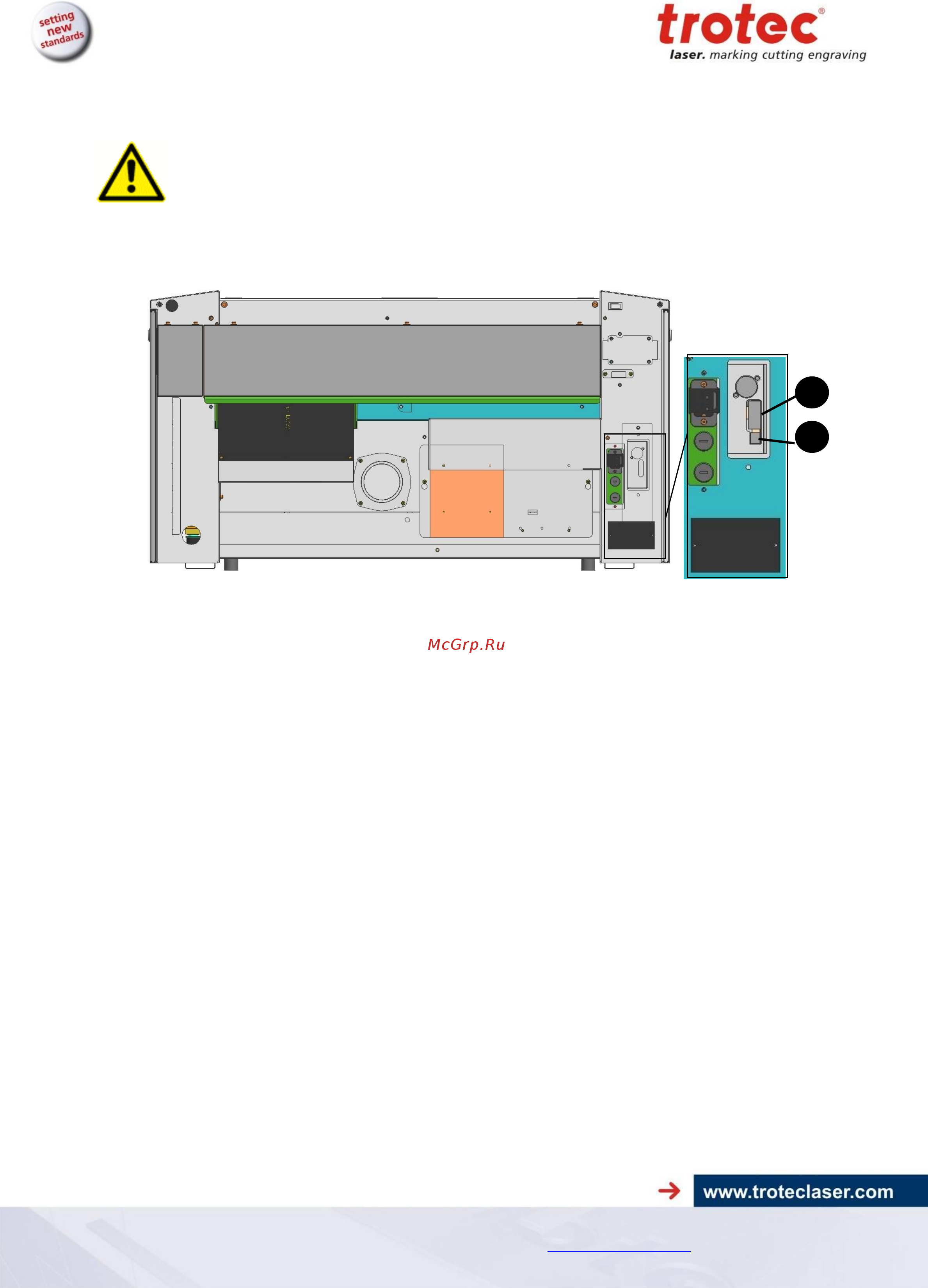

3.7.2 Connecting the Computer
The computer must be switched off and connected to the mains voltage.
Connect the laser (see Figure below) to a free serial interface (1) or USB port (2) on your
computer.
