SpeedMarker 300
8037 | V 2.1_EN (01/2016)
29/ 51
6 System Overview
General System Overview of SpeedMarker 300

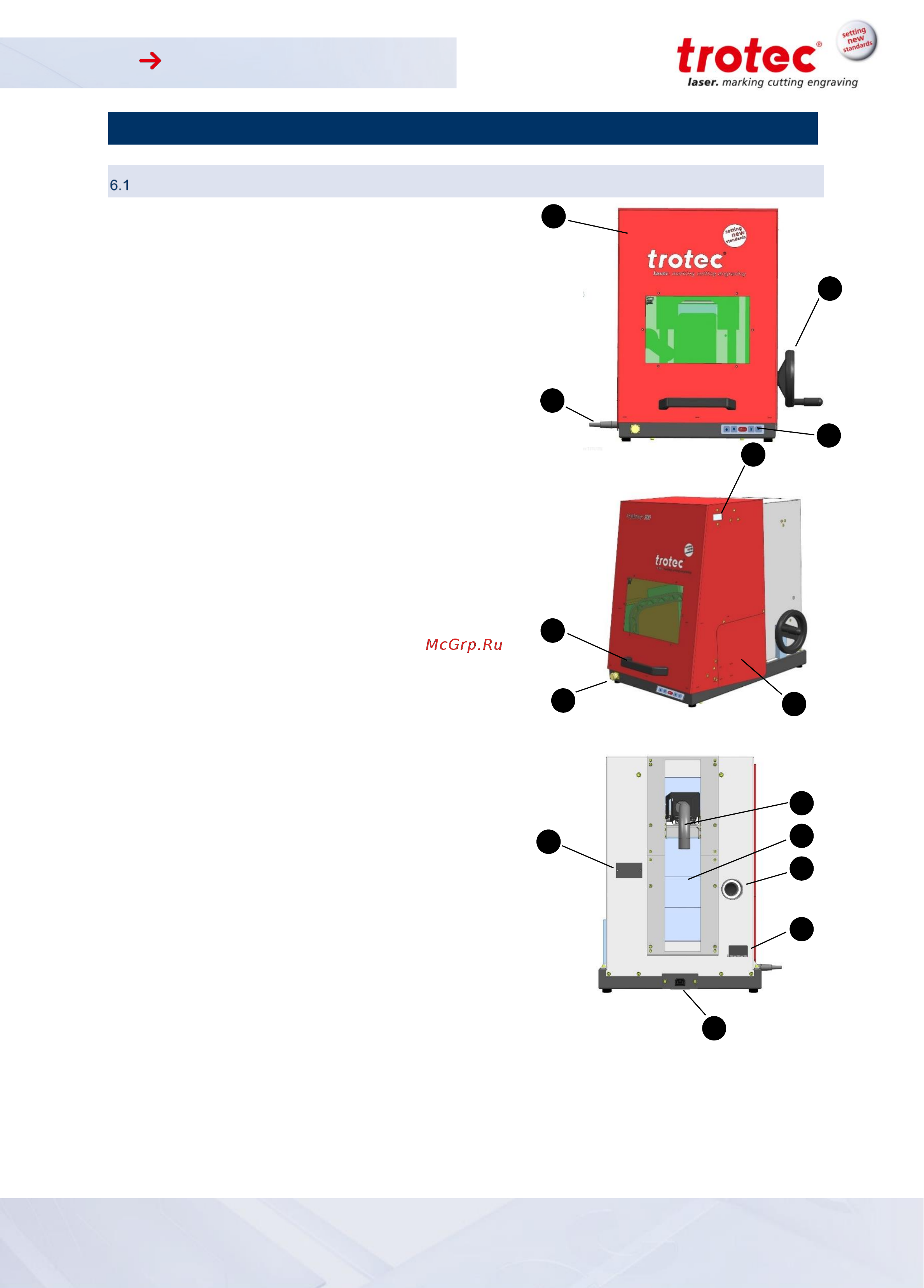

Workstation housing:
1
Safety door incl. safety glass (closed)
2
Safety door handle
3
Cable opening (interlock, mark start, rotary)
4
Extraction system connector
5
Laser safety protection elements
6
Backside of marking head incl. fibre
7
Manufacturers plate
… with mechanical Z-axis option:
8
Z-Axis adjustment wheel
… with software controlled Z-axis option:
9
Keypad
10
IEC Connector for Z-Axis
… with Pass-Through option:
11
Interlock hatch
12
Removable side panels (both sides)
13
Interlock indication lights (both sides)
14
Emergency Stop button
4
5
6
7
3
10
9
1
8
11
2
14
13
12
