SpeedMarker 300
8037 | V 2.1_EN (01/2016)
31/ 51

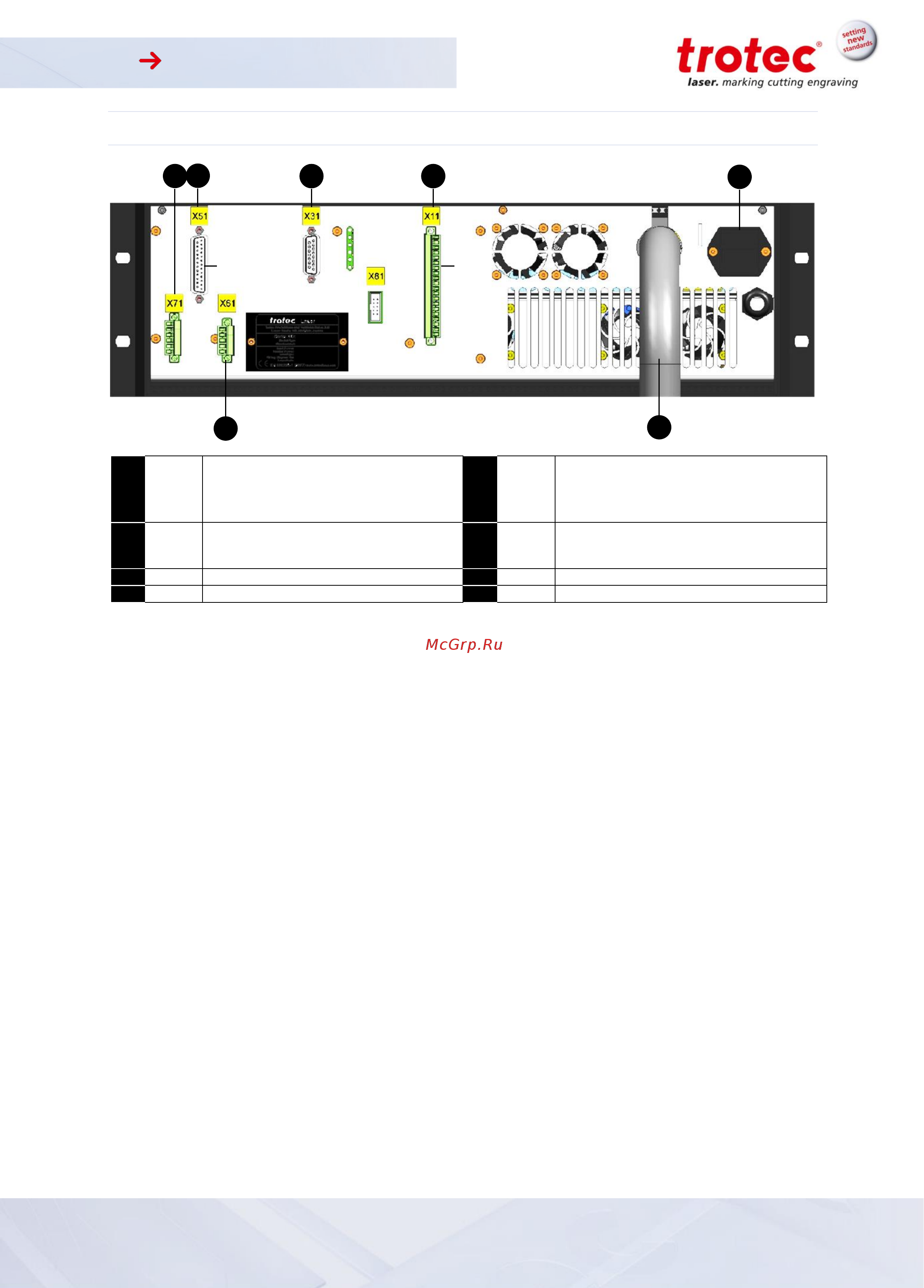

6.3.2 Laser Rack Back View
1
X71
Start/Stop connection
4
X11
Control rack connection-safety door
Emergency Stop/Interlock/ext. messages
2
X51
I/O Control to the Industrial PC
5
Mains connection via IEC connector Con-
nected to multiple socket
3
X31
External panel connection
6
X61
Extraction connection
7
Protection tube for fiber cable
6
1
2
3
4
5
7
