3. GETTING STARTED

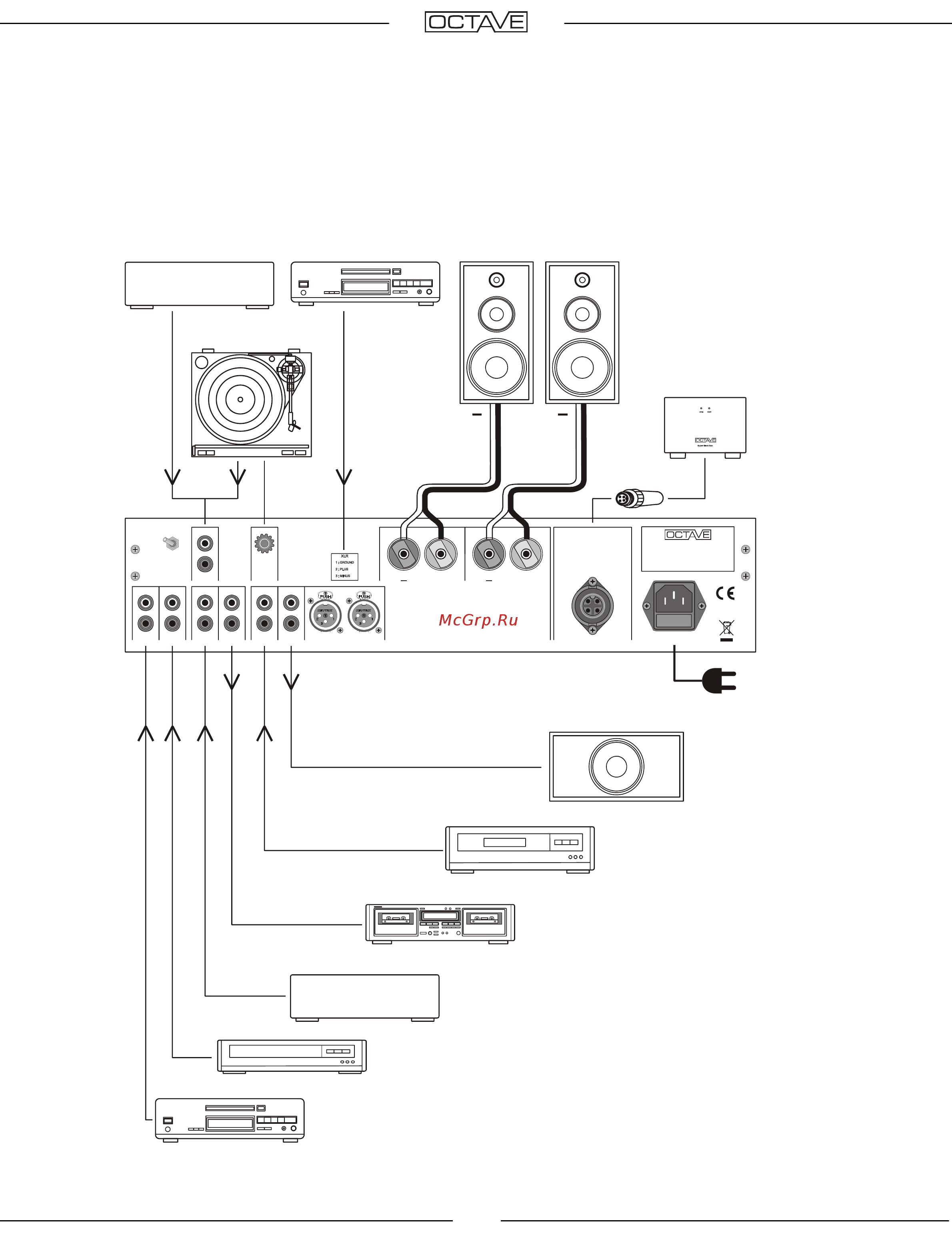

3.7. Connection options: overview
Tuner
Tapedeck, A-D-Converter, PC
Black Box
+ +
Tuner
L
R
GND
230 V AC / 450 W
Left Speaker
Right Speaker
Black Box Connector
Achtung!
Black Box nur bei
ausgeschaltetem
Gerät anschließen
bzw. abtrennen!
Caution!
Disconnect the
amp from mains
before connecting
the Black Box!
++
Integrated amplifier V 70 SE
Serial No.:
Made in Germany
Ecomode
Eco
off
Eco
on
Amp
off
LRCD 2Pre OutFront Ch.
Tape Rec
Aux 1
Aux 2
Phono
CD 1
Additional line level
analogue component,
e.g. video
Turntable
CD player with
balanced output
S
peakers
right
left
to wall socket
Active subwoofer
Multichannel source such as DVD
Additional line level
analogue component,
e.g. video
CD player with
unbalanced out
p
ut
