16

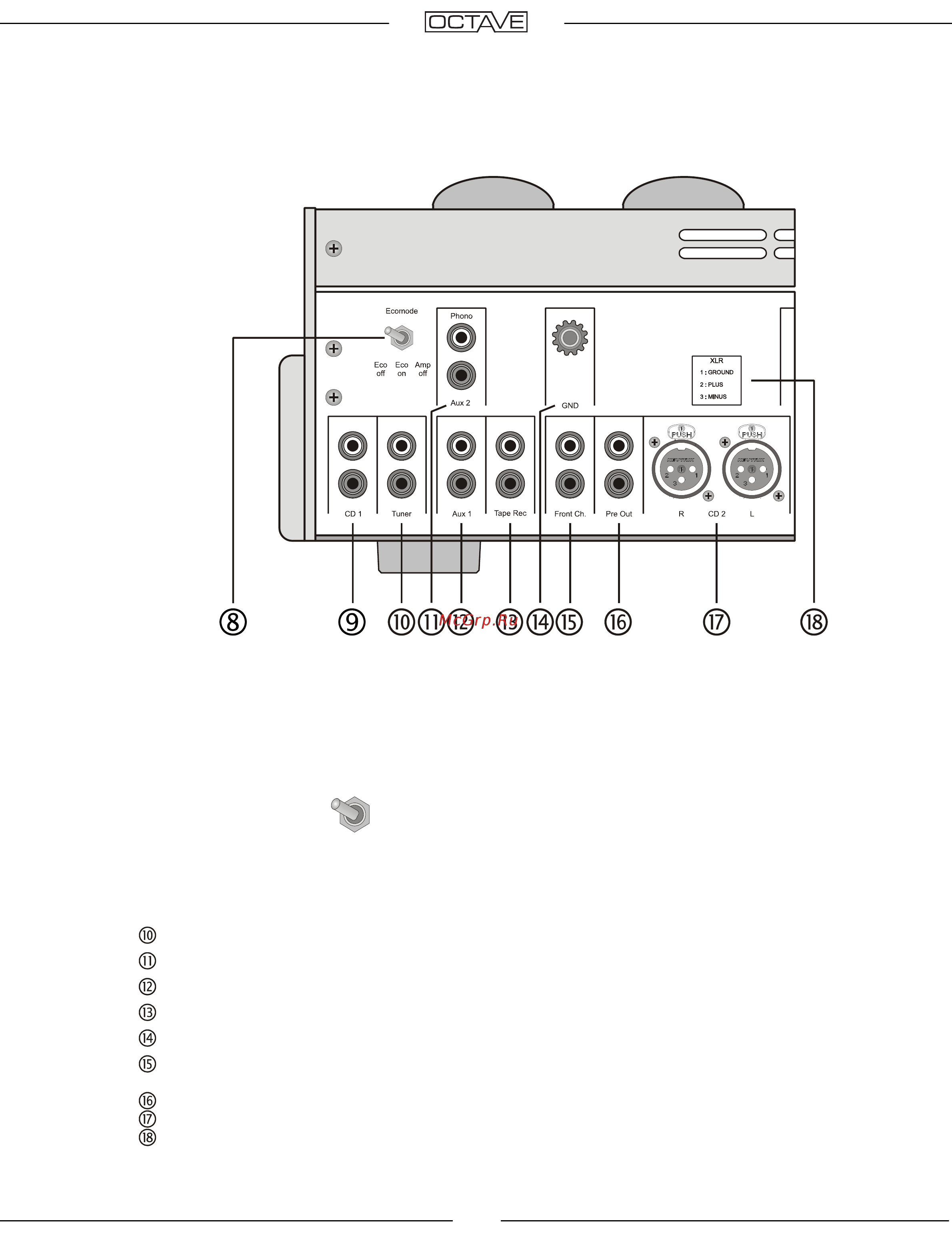

6. CONNECTIONS – the rear panel
Ecomode
Eco off: Ecomode automatic is off.
Eco on: Ecomode automatic is on.
Amp off: The power stage of the amplifier is off
(see chap. 6.3.).
CD 1
CD line level input, RCA.
Tuner
Tuner line level input, RCA.
AUX 2
RCA line level input for Video etc, or MM/MC input with Phono option.
AUX 1
RCA line level input for Video, etc.
Tape rec
Record output for tape or DAT.
GND
Ground connector for Turntable.
Front Channel
Input for the front channel of a multichannel receiver / DVD player
(see chapter 6.4).
Pre Out
Regulated preamp output for active subwoofer, etc. (see chapter 6.5.).
CD 2
CD line level input, XLR.
Pin configuration for XLR connectors.
E
como
d
e
Eco
o
ff
Eco
o
n
Amp
o
ff
