Page 13

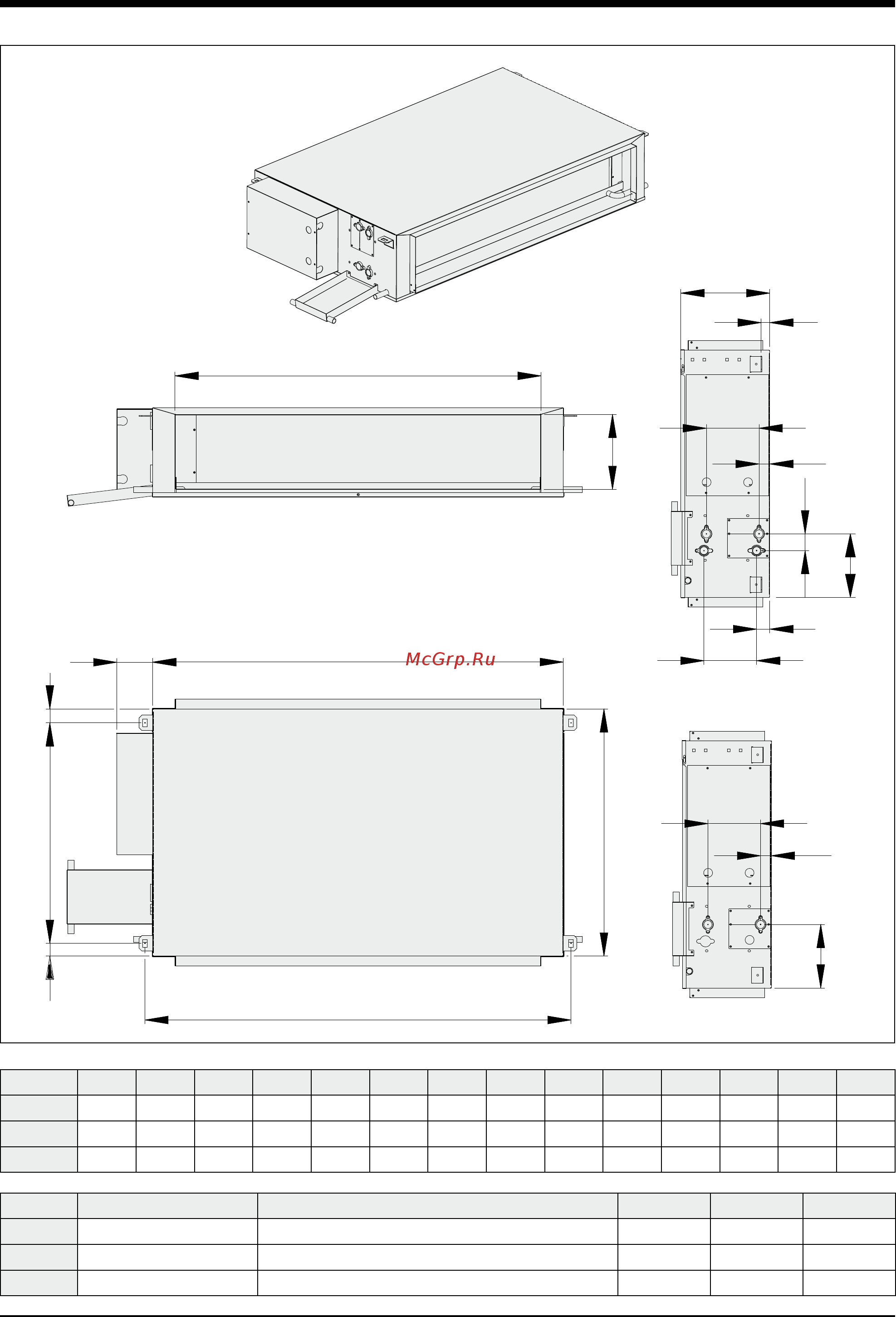

Dimensional Data (mm) and Weight - VH2N 05, 07 and 10
Unit size A B C D E F G H I J K L M N
VH2N 05 945 193.5 1100 33 36 28 136 229.5 1060 34 136 638 164 22
VH2N 07 1142 204.5 1240 33 36 28 175 251 1200 34 175 638 164 22
VH2N 10 1142 241 1240 31 36 24 225 299 1200 42 200 638 153 27
Unit size Operating weight Weight definition Ø Ø1 Ø2
VH2N 05 35 kg Unit with 4-row coil, without valve and without control. 1/2" female 1/2" female 1/2" female
VH2N 07 41 kg Unit with 4-row coil, without valve and without control. 1/2" female 1/2" female 1/2" female
VH2N 10 46 kg Unit with 5-row coil, without valve and without control. 1/2" female 1/2" female 1/2" female
A
E
D
I
C
L
G
F
K
J
43.3
93
569
M
N
G
Ø1
Ø1
Ø2
Ø
Ø
Ø2
F
H
B
M
4-pipe unit
2-pipe unit
