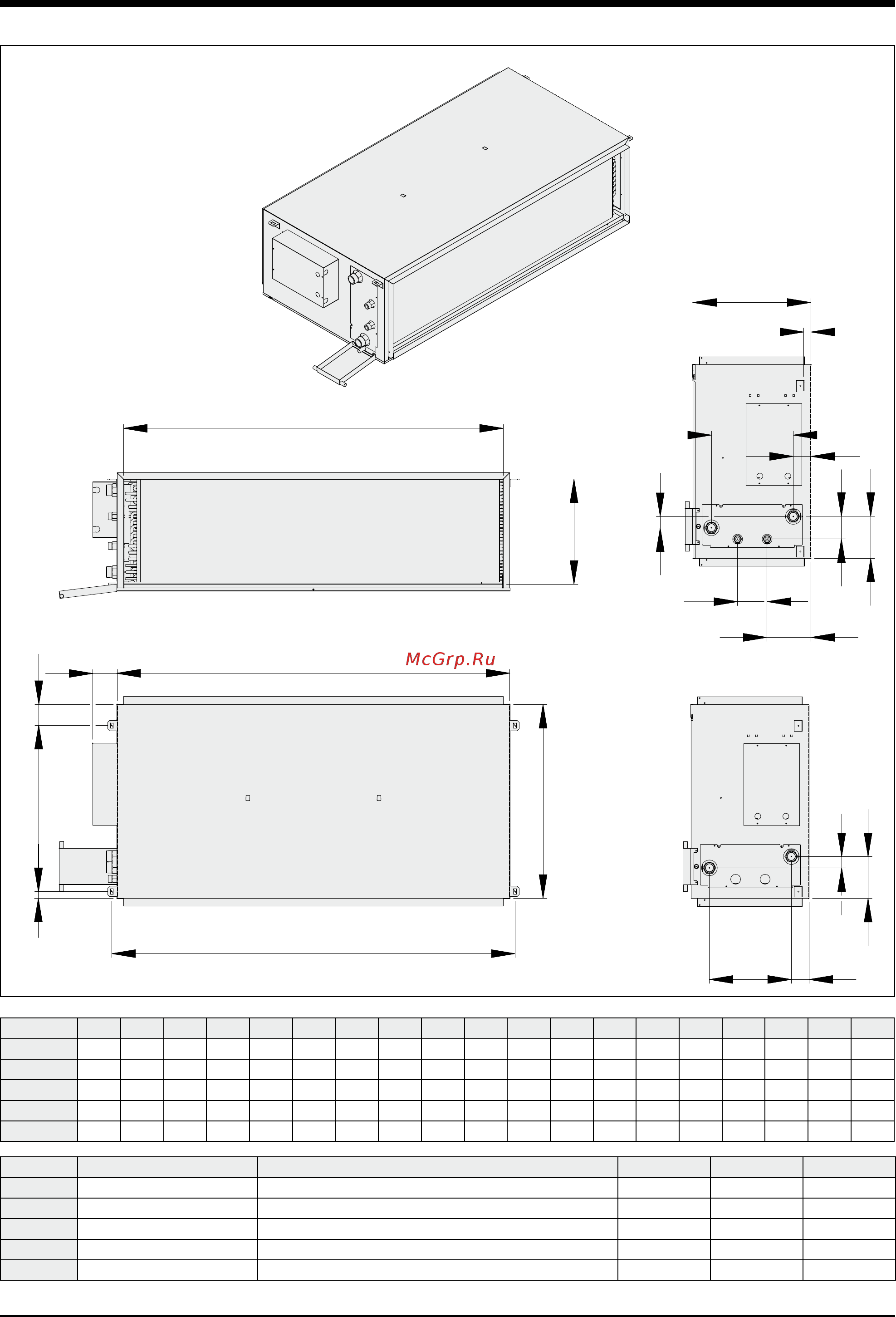

Dimensional Data and Weight - VH2N 15, 18, 21, 24 and 27
Unit size A B C D E F G H I J K L M N P Q R S T
VH2N 15 1330 326 1420 26 81 67 238 376 1380 28 127.5 740 122.5 150 44 69.5 238 65 67
VH2N 18 1330 326 1420 26 81 67 238 376 1380 28 127.5 740 122.5 150 44 69.5 238 65 67
VH2N 21 1330 326 1420 26 81 67 238 376 1380 28 187.5 740 92 172 43 86.5 235 39 70
VH2N 24 1450 401 1540 26 81 67 313 451 1500 27 112.5 740 167 160 43 86.5 313 43 67
VH2N 27 1450 401 1540 26 81 67 313 451 1500 27 112.5 740 167 160 43 86.5 313 43 67
Unit size Operating weight Weight definition Ø Ø1 Ø2
VH2N 15 59 kg Unit with 3-row coil, without valve and without control. Rc 1" male Rc 1" male Rc 3/4" male
VH2N 18 61 kg Unit with 4-row coil, without valve and without control. Rc 1"1/4 male Rc 1" male Rc 3/4" male
VH2N 21 63 kg Unit with 5-row coil, without valve and without control. Rc 1"1/4 male Rc 1" male Rc 3/4" male
VH2N 24 69 kg Unit with 4-row coil, without valve and without control. Rc 1"1/4 male Rc 1"1/4 male Rc 3/4" male
VH2N 27 73 kg Unit with 5-row coil, without valve and without control. Rc 1"1/4 male Rc 1"1/4 male Rc 3/4" male
A
I
C
L
R
Ø Ø
N
M
K
P
H
J
G
F
Ø1
Ø2 Ø2
Ø1
Q
N
S
T
E
D
93
633
B
4-pipe unit
2-pipe unit
