Chillers ULTIMA FREECOOL
Chillers
Installation & Maintenance Manual : 903-125 IM E 05/04/A
29
Commissioning Data

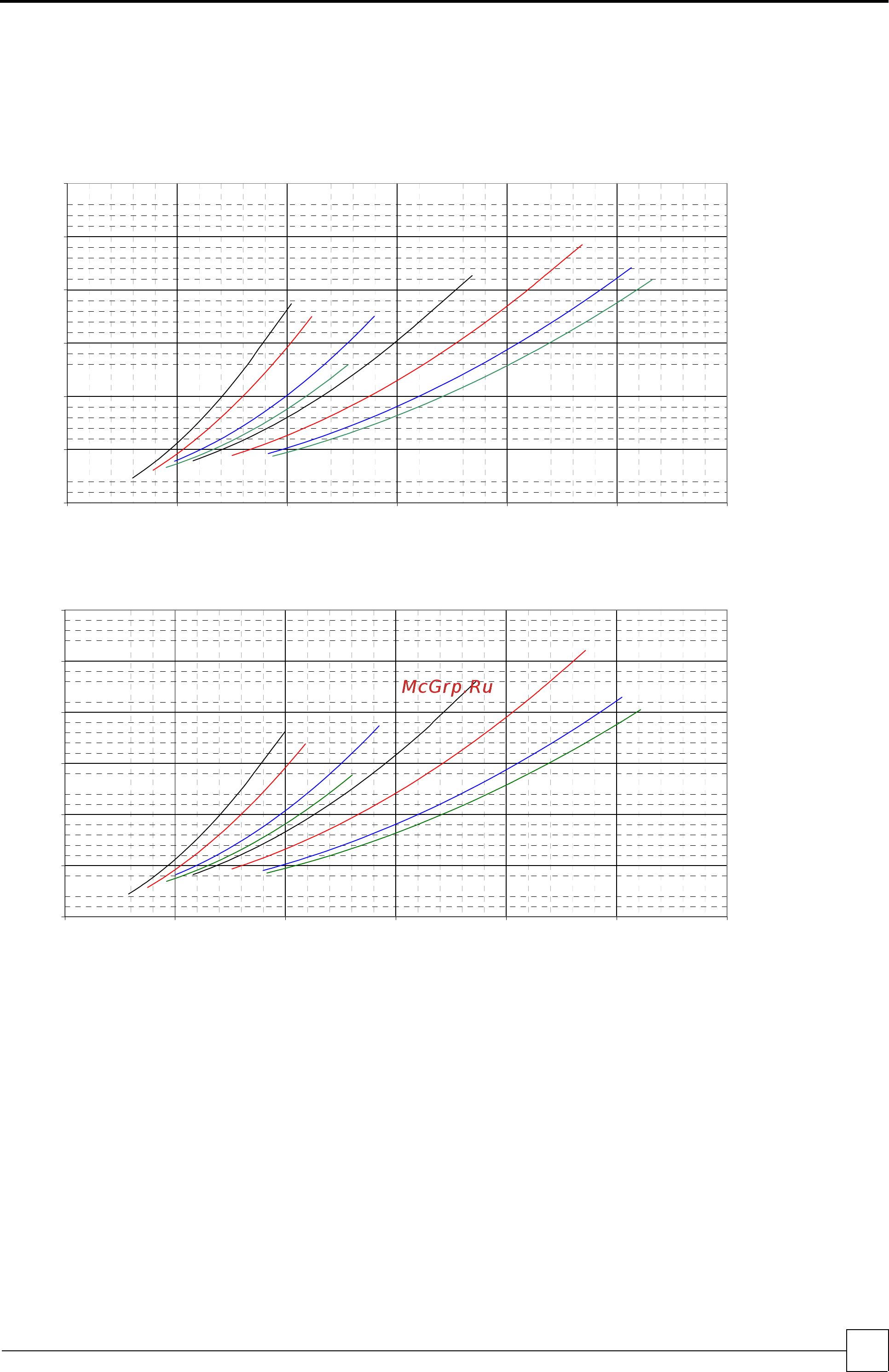

WATERSIDE PRESSURE DROPS
(20% Ethylene Glycol Concentration)
Standard – D Models
WATERSIDE PRESSURE DROP (kPa)
0
50
100
150
200
250
300
0 102030405060
200-275 300 400
350
450-500 575-650 700 750
WATERFLOW (l/s)
Quiet– DQ Models
WATERSIDE PRESSURE DROP (kPa)
0
50
100
150
200
250
300
0 102030405060
200-275 300 400
350
450-500
575-650
700 750
WATERFLOW (l/s)
