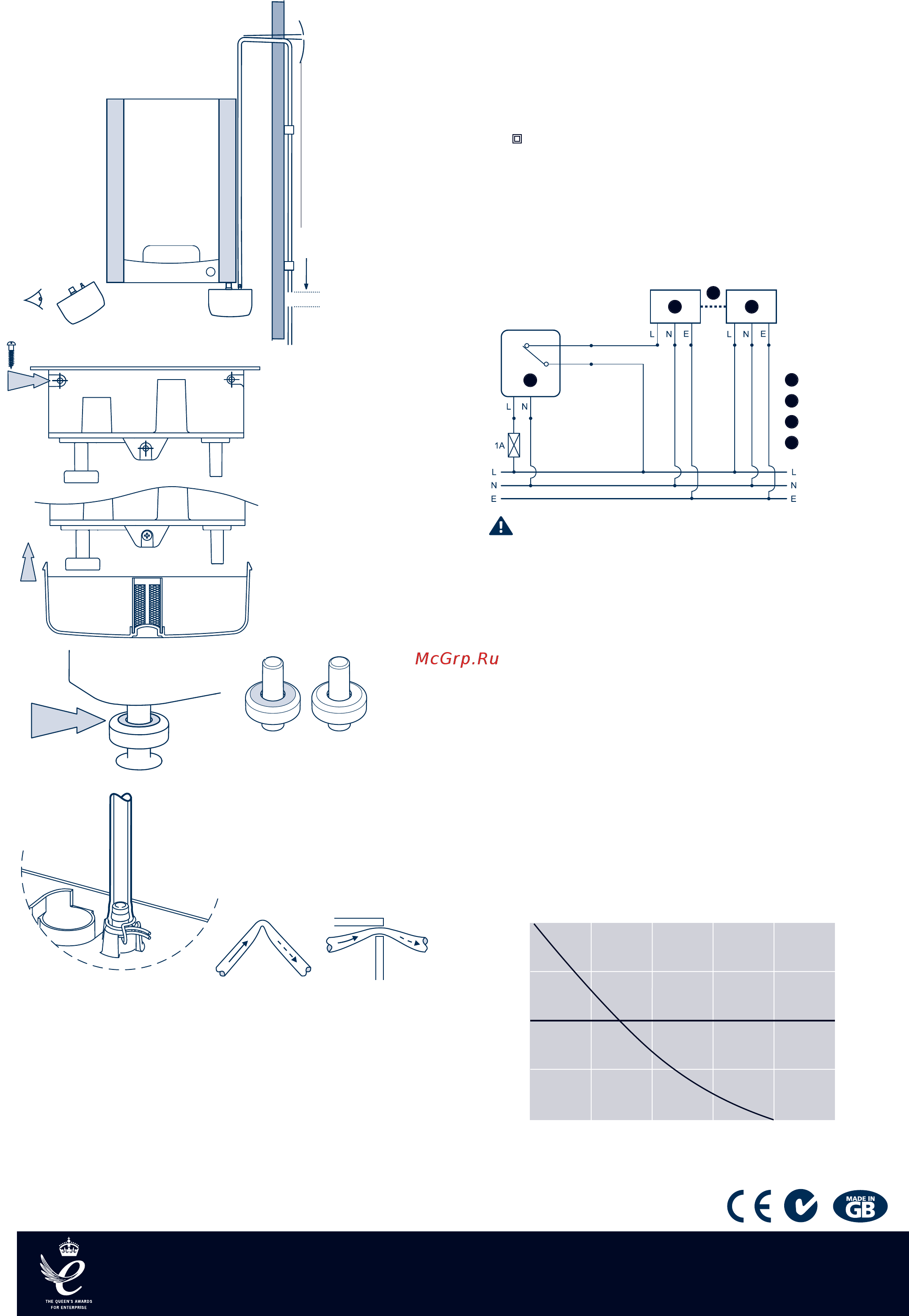

Aspen pumps Kitchen Boiler Рump [2/2] Commissioning maintenance

Aspen pumps Kitchen Boiler Рump [2/2] Commissioning maintenance
MAX. 10m
20
15
10
5
0
0 3 6 9 12 15
LITRES PER HOUR
METRES HEAD
WE RECOMMEND USING THIS PUMP
FOR NO GREATER THAN 10m HEAD
Installation
• If it is not possible to create a downward slope, you must create an
inverted U directly above the pump at the highest point.
• Where the tubing from the pump is connected directly to the soil
stack or waste pipe, there must always be either a waste trap after
the tubing connection or a 75mm U trap formed within the tubing.
• Where the tubing from the pump is connected to an external soil
and vent stack extra care is necessary to ensure that the condensate
pipe could not be blocked through the condensate freezing.
Whilst every care has been taken to ensure that the information included in this document
was accurate at the time of printing, we reserve the right to change specifications at any time.
For further information please visit
www.aspenpumps.com
or contact +44 (0)1323 848842
designed by engineers for engineers
Power Supply
• 230V AC 16W
• 1PH 50/60 Hz
• 3A alarm wires, normally closed
• Double insulated
Electrical Connections
Live: Brown
Neutral: Blue
Safety switch: 2x Black Earth – Yellow/Green
The pre-wired safety switch SHOULD ALWAYS be utilised.
• If a fused plug is used, a 3 amp fuse is recommended.
Commissioning & Maintenance
• Before servicing the pump, make sure the electrical power is
disconnected at the fuse box for both the pump and boiler.
• When commissioning the pump please check for debris in
the pump tank. Remove any material that might block the
drain line or drain into the boiler pump.
• Regularly clean the holding tank and floats with warm water
and soap. Rinse completely when finished.
• Check the inlet and outlet piping ensuring that there are no
restrictions in the tubing.
Contact Aspen Pumps for further help.
Performance
MAX 3 AMP
Pump Unit
Indoor Unit
Interconnecting Cables
Outdoor Unit
1
2
3
4
1
2
3
4
Position the pump beneath
the boiler with fixing
screws supplied.
Prevent any kinks or
trapped parts.
Connect supplied 6m /
10mm I.D. clear tubing
to the pump.
Check filter is located in
place and push reservoir
into position.
