Yamaha DV-SL100 [9/30] Analog connections
![Yamaha DV-SL100 [9/30] Analog connections](/views2/1041340/page9/bg9.png)
5
English

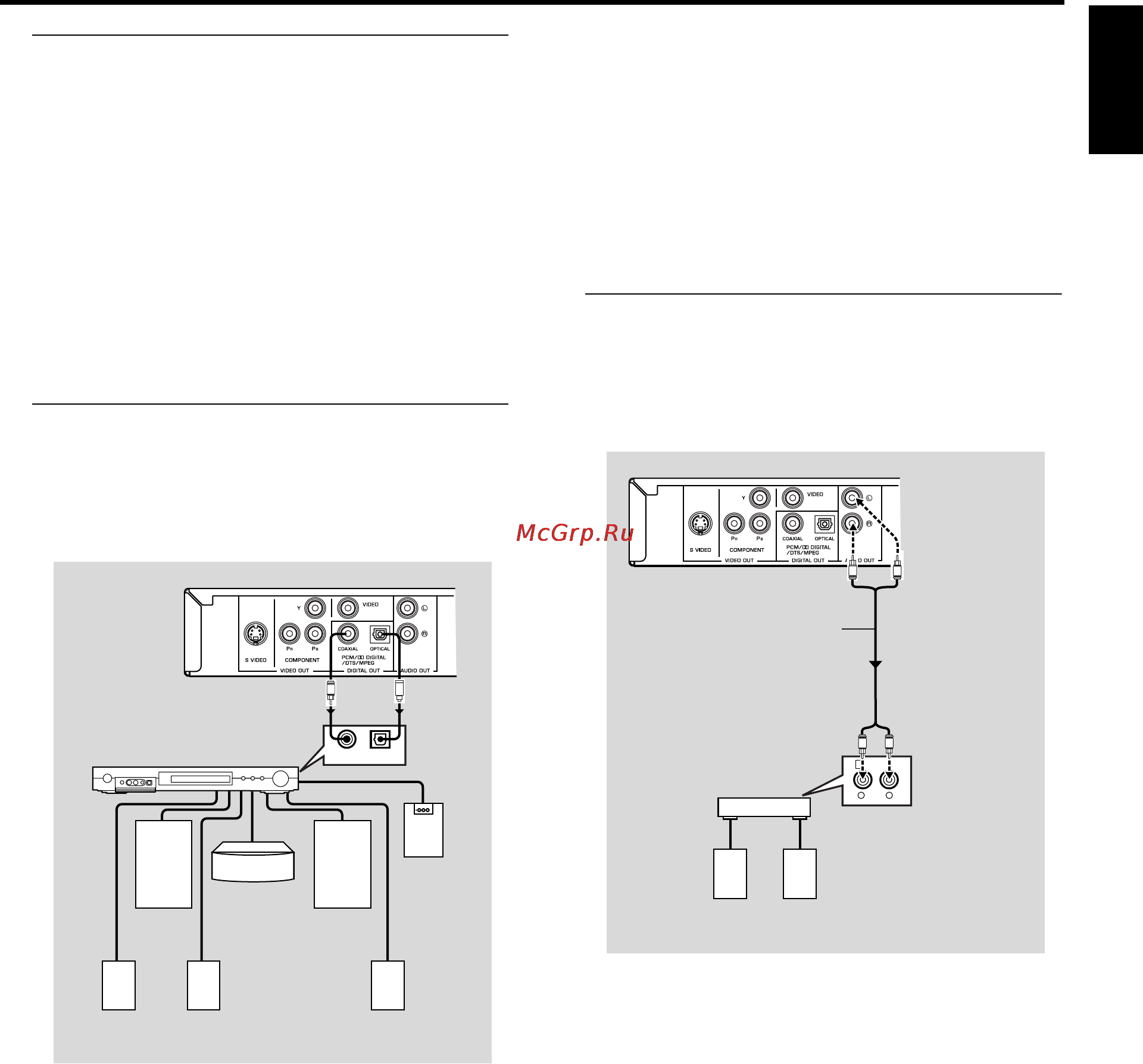

General Notes on connections
Never make or change connections with the power
switched on.
●
Depending on the equipment you wish to connect, there
are various ways you could connect this unit. Possible
connections are shown in the following drawings.
●
Please refer to the manuals of other equipment as
necessary to make the best connections.
●
Do not connect this unit via your VCR. The video quality
could be distorted by the copy protection system.
●
Do not connect this unit’s audio out jack to the phono in
jack of your audio system.
Digital Connections
This unit has COAXIAL and OPTICAL digital out jacks.
Connect one or both of them to your AV receiver
equipped with Dolby digital, DTS, or MPEG decoder
using each specific cable (separate purchase).
You will need to set this unit’s digital output to
All (see ‘DIGITAL OUTPUT’).
Note:
– If the audio format of the digital output does not match
the capabilities of your receiver, the receiver will produce a
strong, distorted sound or no sound at all. Make sure to
select the appropriate audio format at menu screen
included on the disc.
Pressing AUDIO once or more may change not only audio
languages but also audio formats, and the selected format
appears for several seconds on the status window.
Analog Connections
Use audio/video cable supplied with this unit to connect
AUDIO OUT L (left) and R (right) jacks of this unit to
corresponding input jacks of your audio equipment such
as Stereo amplifier.
AV receiver
COAXIAL
IN
OPTICAL
IN
C
O
Stereo
amplifier
(supplied)
1 CD/DVD
RL
R
L
L
R
Preparation
SL100_U2_eng Page 5 Friday, November 28, 2003 2:32 PM
