Functional Overview
Remote control connectors are used in custom installations to transmit remote control signals via cable.
• Connect REMOTE CONTROL IN to an output on your remote control system.
• Connect REMOTE CONTROL OUT to a remote control input on another component to enable system control.
This unit is also equipped with RS-232C terminal. Consult your dealer for details.
Caution: Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause
permanent damage to the unit.

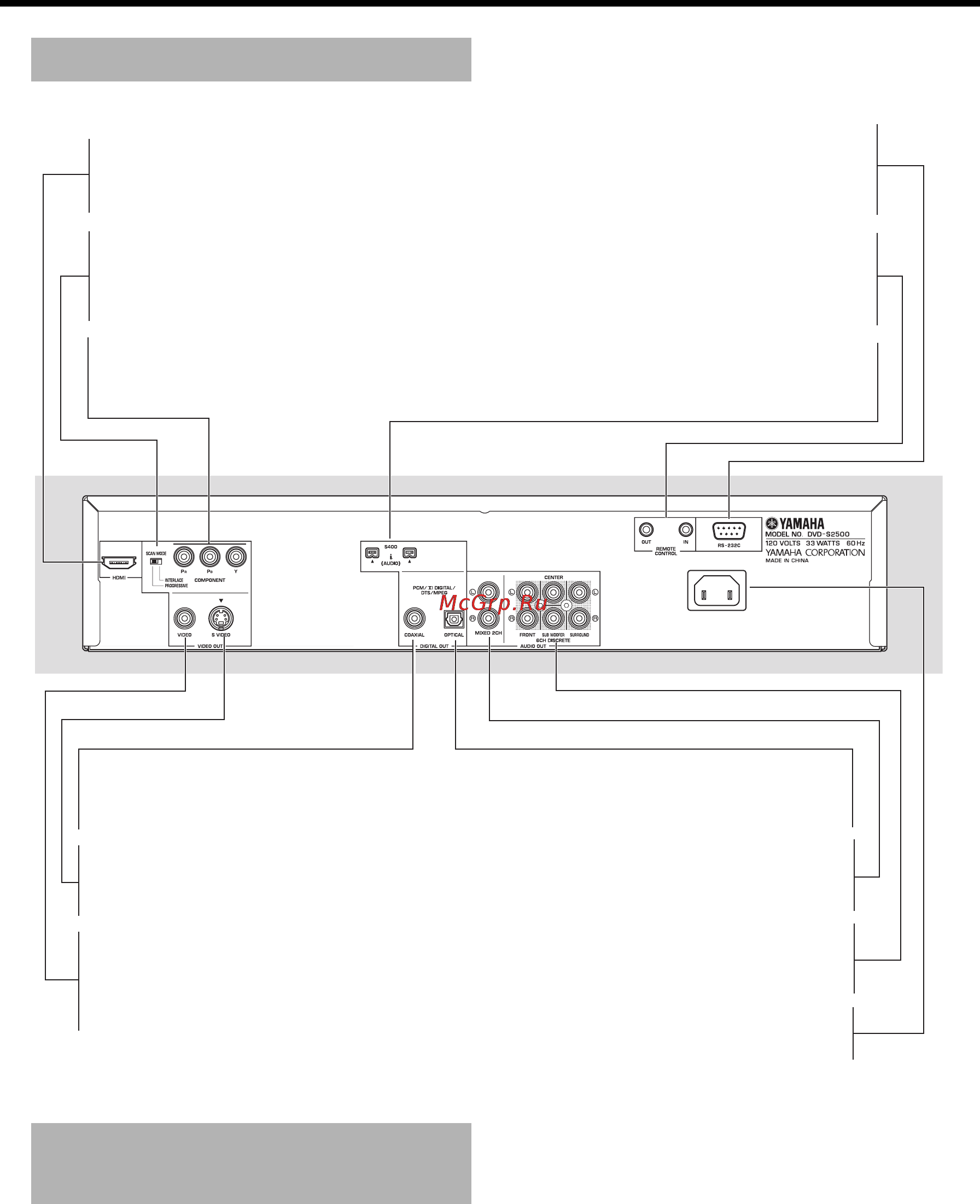

Rear panel
HDMI output terminal
–connect to the HDMI jack on a
HDMI-compatible AV component
SCAN MODE switch
–switches the component video output
signals between progressive and
interlace
COMPONENT video jacks
–connect to an AV receiver with Y P
B
P
R inputs
RS-232C terminal
– use as an expansion terminal for commercial use
Consult your dealer for details
REMOTE CONTROL connectors
– use in custom installations to transmit remote
control signals via cable connections
i.LINK connectors
– connect to the i.LINK jack on an
i.LINK-compatible component
COAXIAL digital audio output
–connect to the audio input jack on
digital (coaxial) audio equipment
S VIDEO output
–connect to an S-Video input jack on
your AV receiver
VIDEO output (composite video
out)
–connect to the video input jack on your
AV receiver
OPTICAL digital audio output jack
– connect to the audio input jack on digital
(optical) audio equipment
MIXED 2CH audio output jacks
– connect to audio inputs on your AV receiver
or stereo system
6CH DISCRETE audio output jacks
– connect to an AV receiver with 6-ch discrete
audio input jacks
AC IN (Main-inlet)
– connect to a standard AC outlet
Remote control connectors
and RS-232C terminal
