TL-WDR4300 N750 Wireless Dual Band Gigabit Router
- 82 -

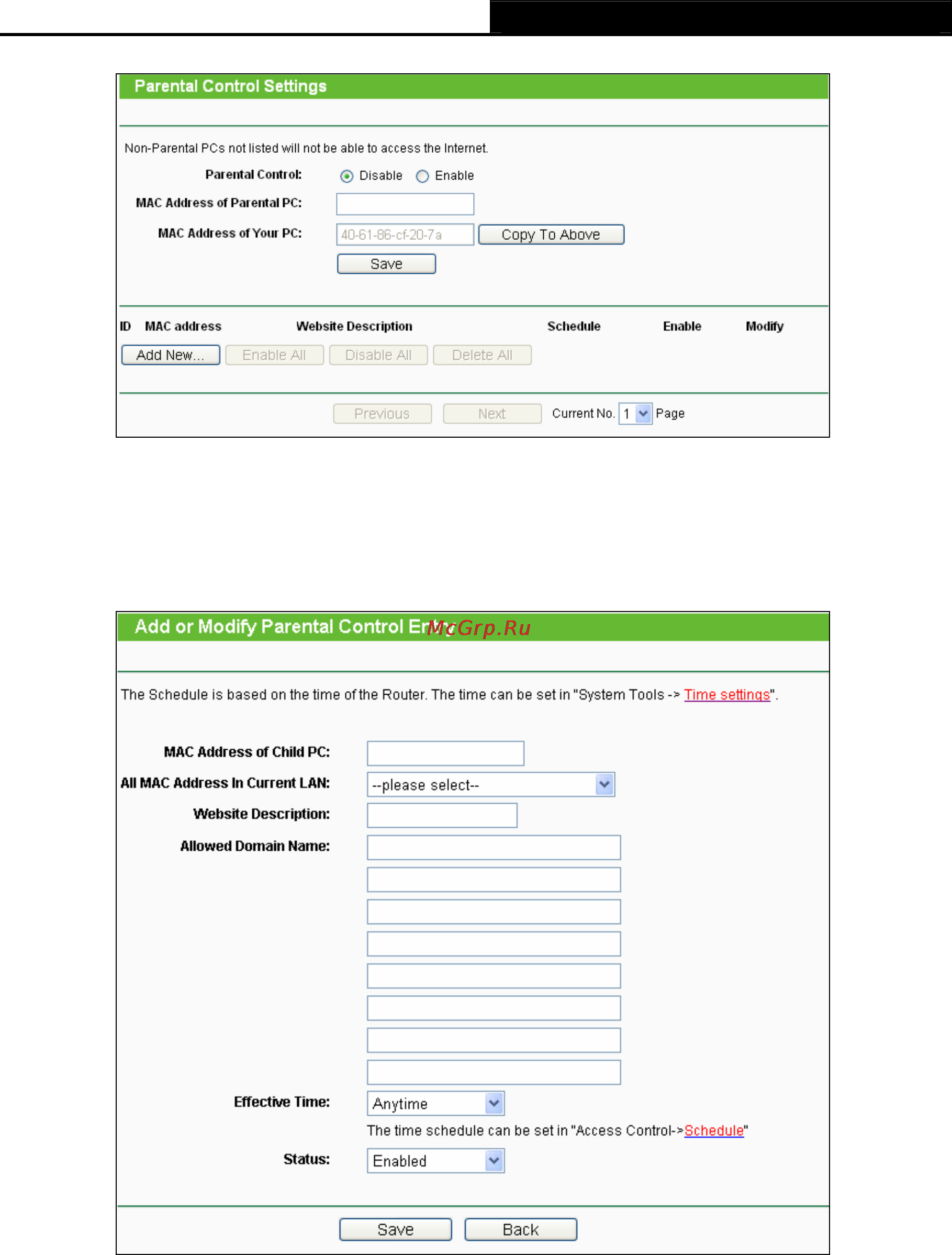

Figure 4-73 Parental Control Settings
To add a new entry, please follow the steps below.
1. Click the Add New… button and the next screen will pop-up as shown in Figure 4-74.
Figure 4-74 Add or Modify Parental Control Entry
¾ Parental Control - Check Enable if you want this function to take effect; otherwise, check
Disable.
¾ MAC Address of Parental PC - In this field, enter the MAC address of the controlling PC, or
you can make use of the Copy To Above button below.
