TL-WR2543ND 450Mbps Dual-Band Wireless N Gigabit Router User Guide

- 71 -

) Note:

1. To access the Router, you should type your Router's WAN IP address into your browser's

address (in IE) or Location (in Navigator) box, followed by a colon and the custom port

number. For example, if your Router's WAN address is 202.96.12.8, and the port number

used is 8080, please enter http://202.96.12.8:8080 in your browser. Later, you may be asked

for the Router's password. After successfully entering the username and password, you will

be able to access the Router's web-based utility.

2. Be sure to change the Router's default password to a very secure password.

4.11 Parental Control

Choose menu “Parental Control”, and then you can configure the parental control in the screen

as shown in Figure 4-58. The Parental Control function can

be used to control the internet

activities of the child, limit the child to access certain websites and restrict the time of surfing.

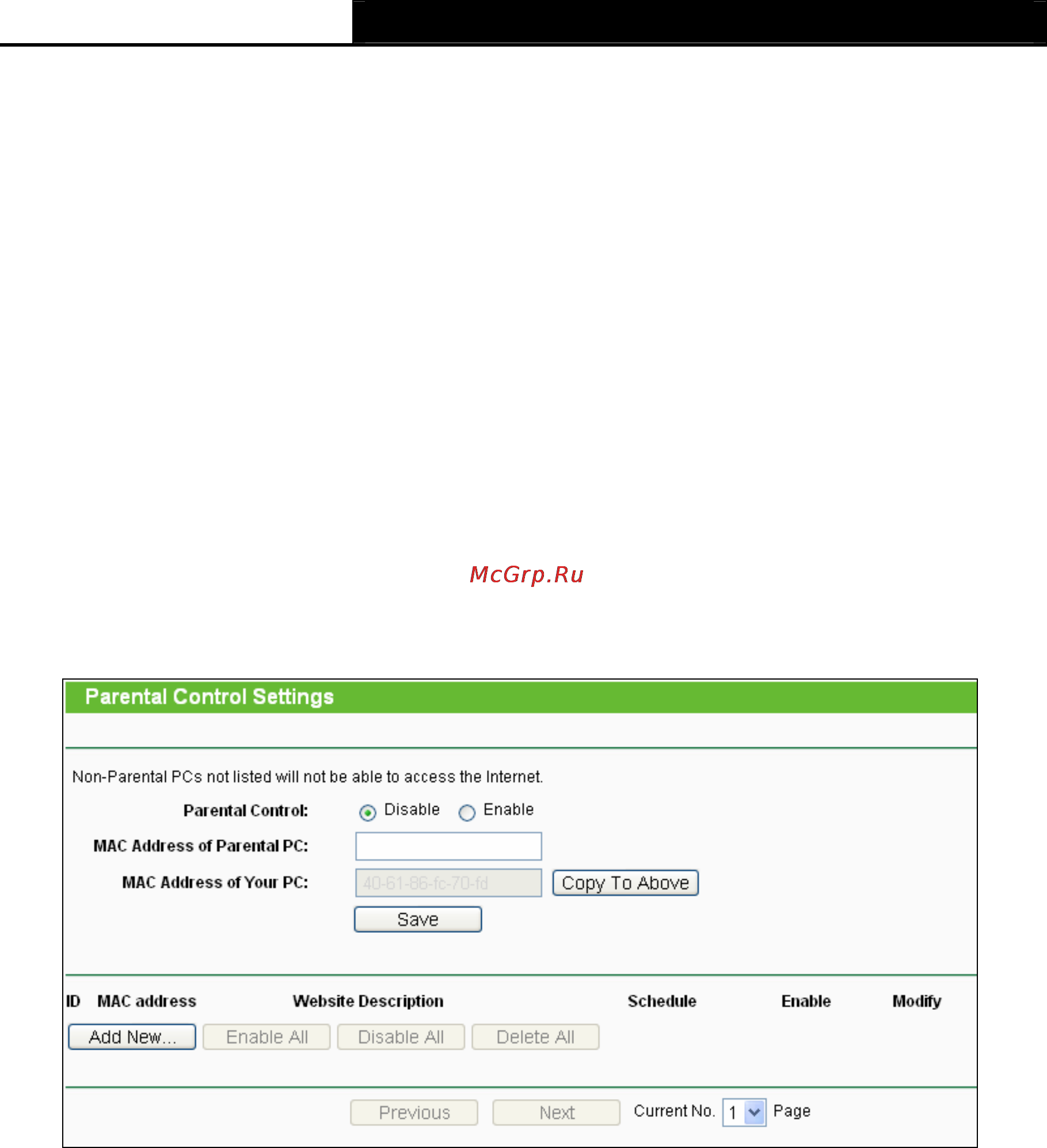

Figure 4-58 Parental Control Settings

Parental Control - Check Enable if you want this function to take effect; otherwise,

check Disable.

¾ MAC Address of Parental PC - In this field, enter the MAC address of the controlling

PC, or you can make use of the Copy To Above button below.

¾ MAC Address of Your PC - This field displays the MAC address of the PC that is

managing this Router. If the MAC Address of your adapter is registered, you can click

the Copy To Above button to fill this address to the MAC Address of Parental PC field

above.

¾ Website Description - Description of the allowed website for the PC controlled.

¾ Schedule - The time period allowed for the PC controlled to access the Internet. For

detailed information, please go to “Access Control → Schedule”.
