TL-WR2543ND 450Mbps Dual-Band Wireless N Gigabit Router User Guide

- 89 -

Description - This is the information about the rules such as address range.

¾ Egress bandwidth - This field displays the max and mix upload bandwidth through the WAN

port, the default is 0.

¾ Ingress bandwidth - This field displays the max and mix download bandwidth through the

WAN port, the default is 0.

¾ Enable - This displays the status of the rule.

¾ Modify - Click Modify to edit the rule. Click Delete to delete the rule.

To add/modify a Bandwidth Control rule, follow the steps below.

1. Click Add New… (in Figure 4-82

), you will see a new screen shown in Figure 4-83.

2. Enter the required information.

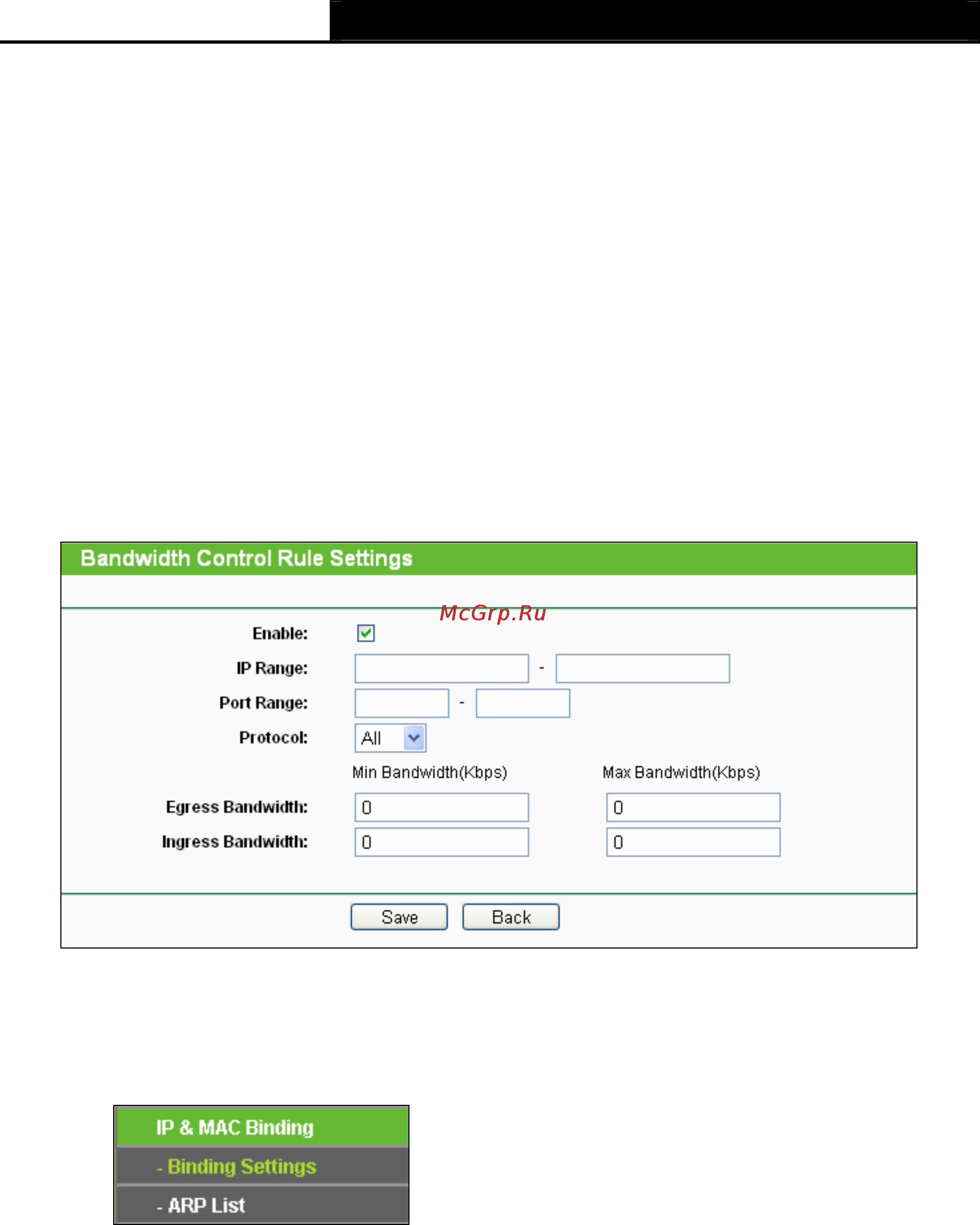

Figure 4-83 Bandwidth Control Rule Settings

3. Click the Save button.

4.15 IP & MAC Binding Setting

Figure 4-84 the IP & MAC Binding menu

There are two submenus under the IP &MAC Binding menu (shown in Figure 4-84): Binding

Settings and ARP List. Click either of them, and you will be able to scan or configure the

corresponding function. The detailed explanations for each submenu are provided below.
