TL-WDN4800 450Mbps Wireless N Dual Band PCI Express Adapter User Guide
4

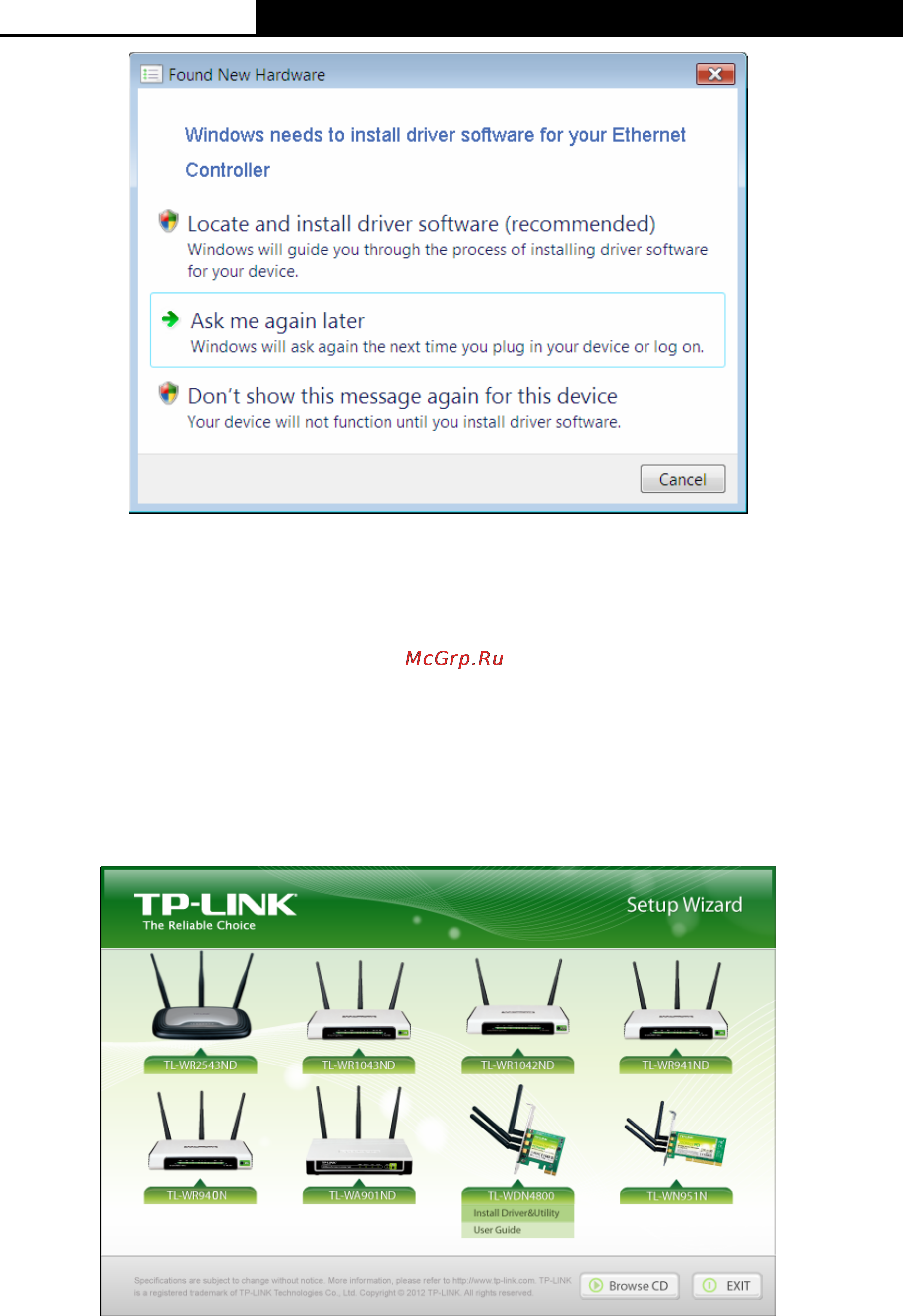

Figure 2-2 Found New Hardware Wizard in Windows Vista
2.2 Software Installation
The adapter’s Setup Wizard will guide you through the installation procedures for Windows 7,
Windows Vista, and Windows XP. The procedures in different systems are quite similar,
therefore here takes the procedures in Windows 7 for example.
1. Insert the Resource CD into your CD-ROM drive and then select model TL-WDN4800 on
the window that pops up (as shown in the below Figure 2-3). There will be a m
enu including:
Install Driver&Utility and User Guide. Click Install Driver&Utility to begin.
Figure 2-3
